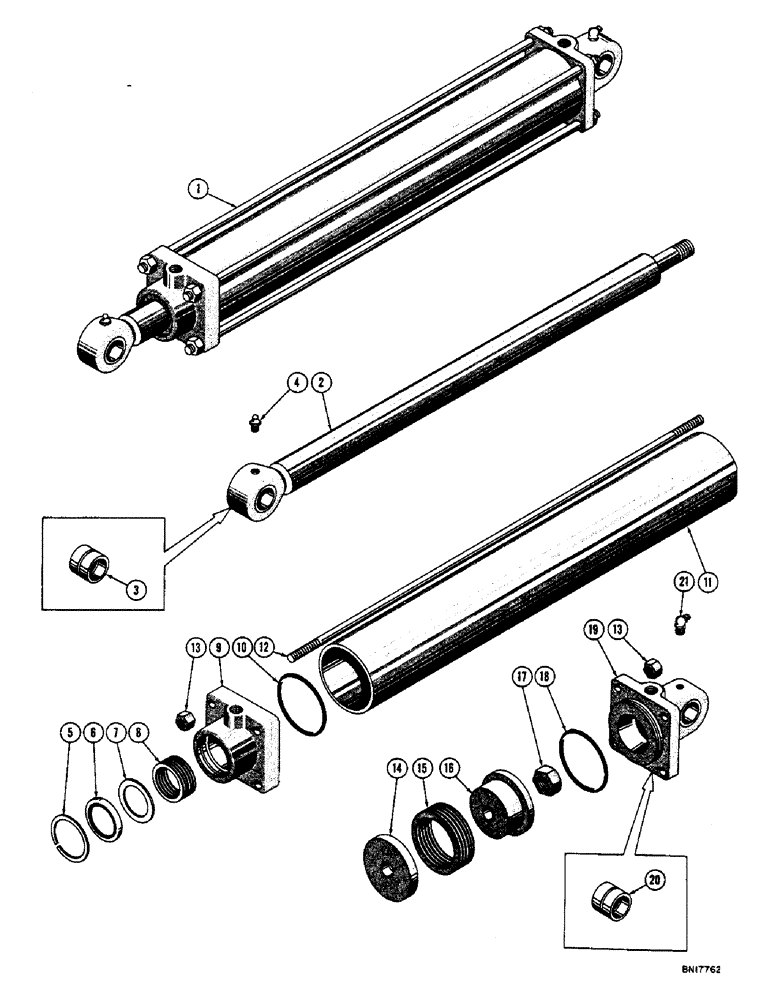

Запчасти Case 800 (230) - R12239 REAR HINGE LOADER DUMP HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

R12239

CYLINDER ASS'Y - hydraulic

2шт.

2

R11665

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

3

72973

BUSHING

2шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

5

R18222

RING

- snap

1шт.

6

31525

WIPER SEAL

- wiper

1шт.

7

31539

WASHER

- packing

1шт.

8

17598

PACKING

- rod

1шт.

9

73347

PISTON ROD

CAP - cylinder end

1шт.

10

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

11

R11663

TUBE - hydraulic cylinder

1шт.

12

R11662

ROD - tie

4шт.

13

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

8шт.

14

K260177

PIN

WASHER - retainer

1шт.

15

31526

PACKING

- piston

1шт.

16

R12103

BLOCK - piston

1шт.

17

48074

NUT

- lock (1-1/4 - 12 NF)

1шт.

18

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

R12104

END ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

20

72973

BUSHING

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
