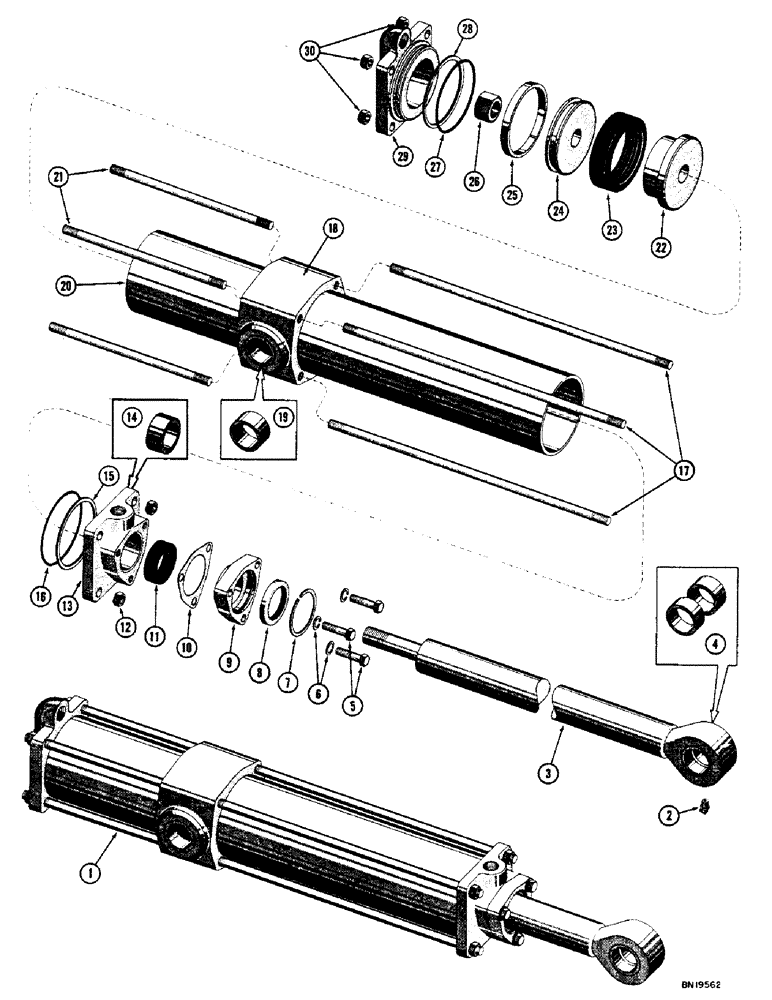

Запчасти Case 800 (226) - R13564 REAR HINGE LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

R13564

CYLINDER ASS'Y - hydraulic

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

R12268

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE

1шт.

4

70466

BUSHING

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.) Hex, 1/2"-13 x 2", G5

3шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

7

1345615C1

SPECIAL RING

RING - snap

1шт.

8

70459

WIPER SEAL

- wiper

1шт.

9

70458

GASKET KIT

GLAND - packing

1шт.

10

70468

SHIM

1шт.

11

17598

PACKING

- rod

1шт.

12

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

4шт.

13

R17527

CAP ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

CAP - cylinder

1шт.

14

R17508

BUSHING

1шт.

15

R13074

WASHER

RING - backup

1шт.

16

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

1шт.

17

R14872

TIE-ROD

ROD - tie, long

4шт.

18

R12091

TRUNNION ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION

1шт.

19

70466

BUSHING

2шт.

20

R12272

TUBE - hydraulic cylinder

1шт.

21

R14877

ROD - tie, short

4шт.

22

R14110

BLOCK

- piston

1шт.

23

R17198

PACKING

- piston

1шт.

24

70461

WASHER - retainer

1шт.

25

70462

RING

- wear

1шт.

26

48074

NUT

- lock (1-1/4 - 12 NF)

1шт.

27

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

1шт.

28

R13074

WASHER

RING - backup

1шт.

29

R14876

END - cylinder

1шт.

30

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8 - 18 NF)

4шт.
