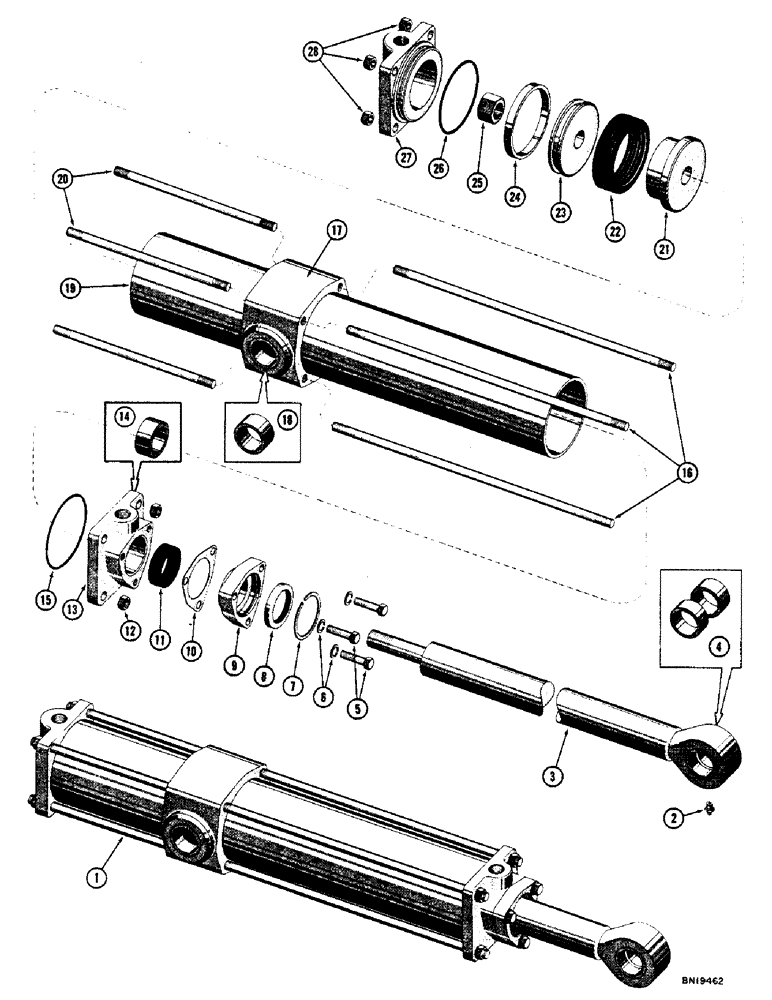

Запчасти Case 800 (224) - R12267 REAR HINGE LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

R12267

CYLINDER ASS'Y - hydraulic (Order R13564 for service) (See figure 226 for breakdown)

2шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

3

R12268

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

4

70466

BUSHING

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.) Hex, 1/2"-13 x 2", G5

3шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

7

1345615C1

SPECIAL RING

RING - snap

1шт.

8

70459

WIPER SEAL

- wiper

1шт.

9

70458

GASKET KIT

GLAND - packing

1шт.

10

70468

SHIM

1шт.

11

17598

PACKING

- rod

1шт.

12

131-377

LOCK NUT,5/8"-11, GC

NUT - lock (5/8 - 18 NF)

4шт.

13

R11645

CAP ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

CAP - cylinder

1шт.

14

R11644

BUSHING

1шт.

15

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

1шт.

16

R14872

TIE-ROD

ROD - tie, long

4шт.

17

R12091

TRUNNION ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION

1шт.

18

70466

BUSHING

2шт.

19

R12272

TUBE - hydraulic cylinder

1шт.

20

R14877

ROD - tie, short

4шт.

21

R14110

BLOCK

T - piston

1шт.

22

R17198

PACKING

- piston

1шт.

23

70461

WASHER - retainer

1шт.

24

70462

RING

- wear

1шт.

25

48074

NUT

- lock (1-1/4 - 12 NF)

1шт.

26

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

1шт.

27

73204

END - cylinder (Order R14876 end cap and (4) R14877 tie rods for service)

1шт.

28

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8 - 18 NF)

4шт.
