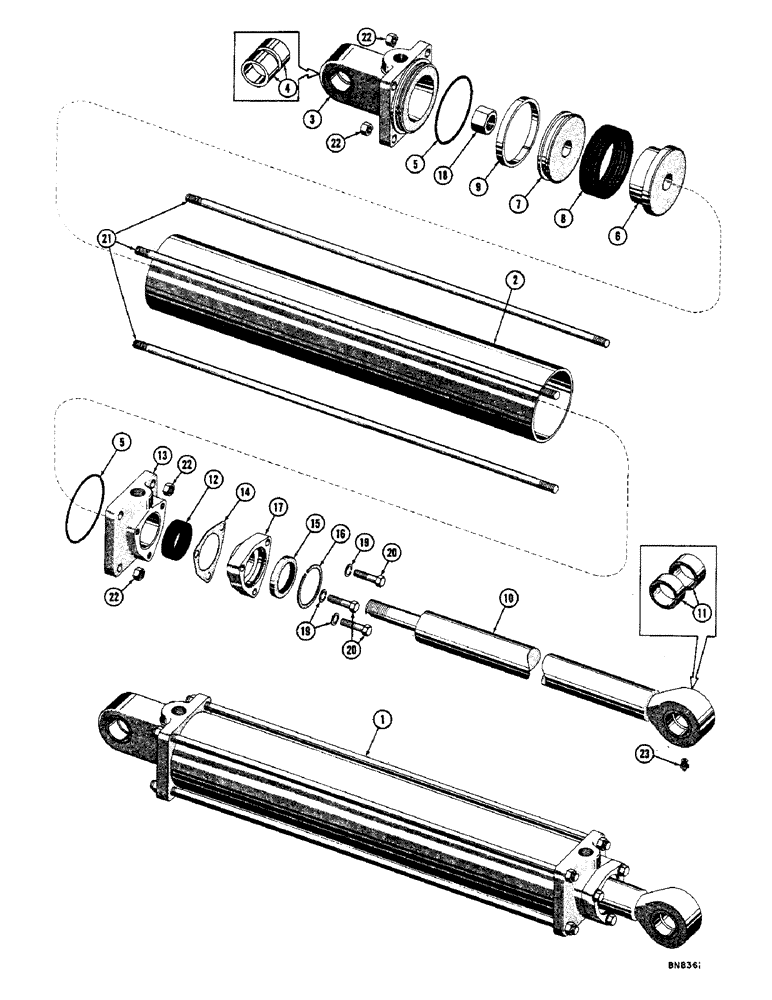

Запчасти Case 800 (222) - 72467 AND 72468 END HINGE LOADER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

72467

CYLINDER ASS'Y - hydraulic, R.H.

1шт.

72468

CYLINDER ASS'Y - hydraulic, L.H.

1шт.

2

72513

TUBE - hydraulic cylinder

1шт.

3

73242

LEVER

END ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

4

70466

BUSHING

2шт.

5

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

2шт.

6

R14110

BLOCK

- piston

1шт.

7

70461

WASHER - retainer

1шт.

8

R17198

PACKING

- piston

1шт.

9

70462

RING

- wear

1шт.

10

73233

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

11

70466

BUSHING

2шт.

12

17598

PACKING

- rod

1шт.

13

70454

CAP - cylinder (Order (1) R17527 cap and (4) R11662 tie rods for service)

1шт.

14

70468

SHIM

8шт.

15

70459

WIPER SEAL

- wiper

1шт.

16

1345615C1

SPECIAL RING

RING - snap

1шт.

17

70458

GASKET KIT

GLAND - packing

1шт.

18

48074

NUT

- lock (1-1/4 - 12 NF)

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.) Hex, 1/2"-13 x 2", G5

3шт.

21

72514

ROD - tie

4шт.

22

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

8шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

2шт.

1

70450

GROOVED PULLEY

CYLINDER ASS'Y - hydraulic, R.H., 70450 & 70451 end hinge loader lift

1шт.

70451

LID

CYLINDER ASS'Y - hydraulic, L.H., 70450 & 70451 end hinge loader lift

1шт.

2

70453

TUBE - hydraulic cylinder, 70450 & 70451 end hinge loader lift

1шт.

3

R11957

END ASS'Y - cylinder, 70450 & 70451 end hinge loader lift hydraulic

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder, 70450 & 70451 end hinge loader lift hydraulic

1шт.

4

70466

BUSHING

70450 & 70451 end hinge loader lift hydraulic cylinder

2шт.

5

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

70450 & 70451 end hinge loader lift hydraulic cylinder -248, 90 Duro, 4.734" ID x .139" Thk

2шт.

6

R14110

BLOCK

- piston, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

7

70461

WASHER - retainer, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

8

R17198

PACKING

- piston, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

9

70462

RING

- wear, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

10

R11960

END YOKE & PISTON ROD ASS'Y, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

11

70466

BUSHING

70450 & 70451 end hinge loader lift hydraulic cylinder

2шт.

12

17598

PACKING

- rod, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

13

70454

CAP - cylinder (Order (1) R17527 cap and (4) R11662 tie rods for service), 70450 & 70451 end hinge loader lift hydraulic

1шт.

14

70468

SHIM

70450 & 70451 end hinge loader lift hydraulic cylinder

8шт.

15

70459

WIPER SEAL

- wiper, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

16

1345615C1

SPECIAL RING

RING - snap, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

17

70458

GASKET KIT

GLAND - packing, 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

18

131-1295

LOCK NUT

NUT - lock) (1-1/4 - 12 NF), 70450 & 70451 end hinge loader lift hydraulic cylinder

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 70450 & 70451 End hinge loader lift hydraulic cylinder 1/2"

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.), 70450 & 70451 end hinge loader lift hydraulic cylinder Hex, 1/2"-13 x 2", G5

3шт.

21

72514

ROD - tie, 70450 & 70451 end hinge loader lift hydraulic cylinder

4шт.

22

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF), 70450 & 70451 end hinge loader lift hydraulic cylinder

8шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT, 70450 & 70451 end hinge loader lift hydraulic cylinder 1/8"-27 x .66 lg

2шт.
