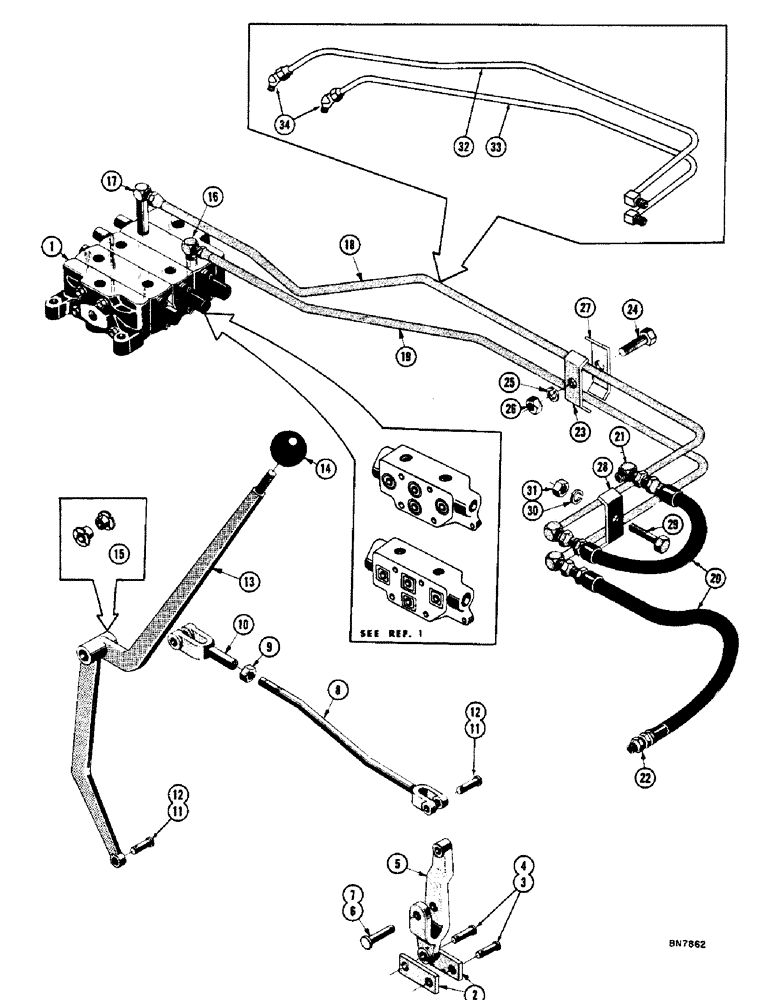

Запчасти Case 800 (210) - SCARIFIER AND RIPPER HYDRAULICS (ANGLING DOZER ONLY) (07) - HYDRAULIC SYSTEM

1

71297

VALVE ASS'Y - hydraulic (Type I - round seal mt'g. between sections - see illustration) (See figure 254 for breakdown) (Order R14051 for service)

1шт.

R14051

VALVE ASS'Y - hydraulic (Type II - square seal mt'g. between sections - see illustration) (See figure 254 for breakdown)

1шт.

2

R22755

LINK

- valve control lever

2шт.

3

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Yoke 3/8" x 1 1/16"

2шт.

4

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

5

71301

LEVER - valve control

1шт.

6

71303

PIN - yoke

1шт.

7

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

71318

ROD ASS'Y - valve control

1шт.

8

71317

ROD - valve control

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

11

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Yoke 3/8" x 1 1/16"

2шт.

12

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

13

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - valve control (Order (1) 74891 & (2) 74898 for service) (For use without bushings, ref. #15)

1шт.

74891

LEVER ASS'Y - valve control (For use with bushings, ref. #15)

1шт.

14

376959R2

KNOB

BALL - grip

1шт.

15

74898

BUSHING - nylon (Optional) (For levers)

2шт.

16

281077C1

ELBOW UNION,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

ELBOW - 90 degree male, 5/8" JIC x 3/4" NPT (For tractors with shoe type brakes only)

1шт.

17

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special (For tractors with shoe type brakes only)

1шт.

18

71596

TUBE ASS'Y - upper valve to cylinder (For tractors with shoe type brakes only)

1шт.

19

71594

TUBE ASS'Y - lower valve to cylinder (For tractors with shoe type brakes only)

1шт.

20

19207

HOSE ASSY.

HOSE ASS'Y, Serial Range: --cylinder

2шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8" JIC x 1/2" NPT

1шт.

22

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 1/2" NPT

1шт.

23

D33316

CLAMP

- tube (71594 & 71596 mt'g.)

1шт.

24

414-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 & 70732 mt'g.)

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

1шт.

27

D33316

CLAMP

- tube

1шт.

28

D33316

CLAMP

- tube

1шт.

29

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2 (31665 mt'g.)

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

1шт.

32

R14762

TUBE ASS'Y - (For tractors with disc type brakes only)

1шт.

33

R14764

TUBE ASS'Y - (For tractors with disc type brakes only)

1шт.

34

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degrees (For tractors with disc type brakes only)

2шт.
