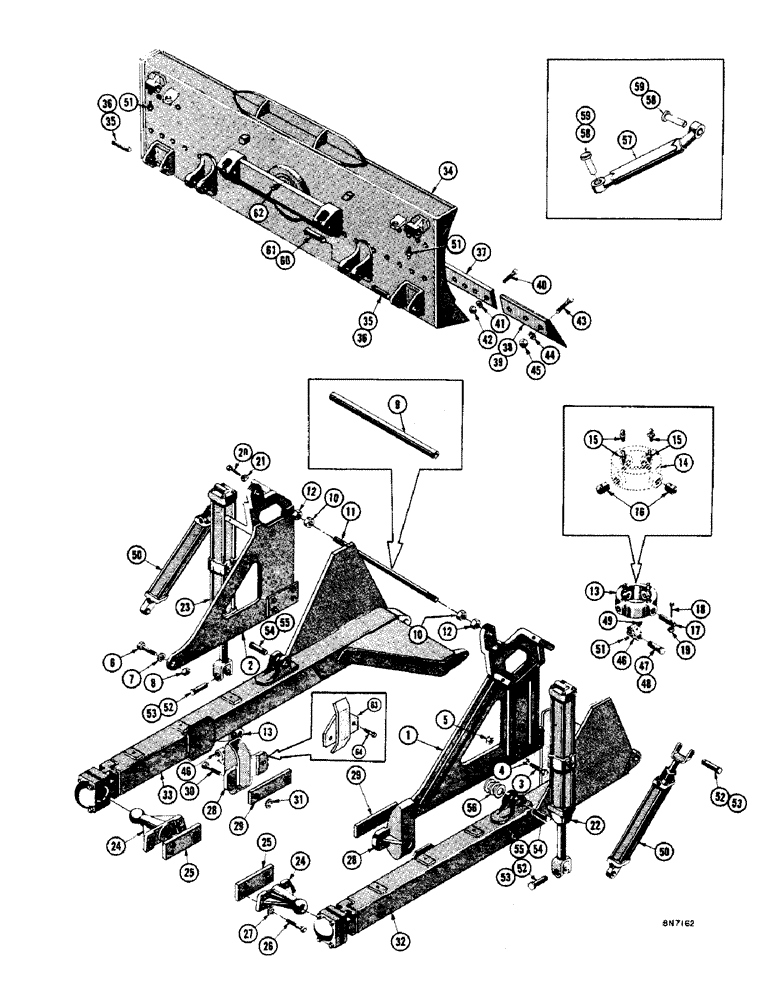

Запчасти Case 800 (186) - HYDRAULIC CROWN TILT BULLDOZER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
R13978
BRACKET ASS'Y - cylinder, R.H.
1шт.
2
R13979
BRACKET ASS'Y - cylinder, L.H.
1шт.
3
114-713
BOLT,Hex, 3/4" - 16 x 2", Gr 5, Full Thd
Hex, 3/4"-16 x 2", G5, Full Thd (R13978 & R13979 mt'g.)
8шт.
4
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
5
425-1112
NUT,3/4"-16, G5
- regular SF hex. (3/4 - 16 NF)
4шт.
6
14-1636
BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-1/4 (R13978 & R13979 mt'g.)
2шт.
7
492-11100
LOCK WASHER,1"
1"
2шт.
8
704775
NUT
- regular SH hex. (1 - 14 NF)
2шт.
9
70388
SPACER - tie rod (Optional)
1шт.
10
704775
NUT
- regular SF hex. (1 - 14 NF)
2шт.
11
70389
ROD - tie
1шт.
12
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
13
70411
YOKE ASS'Y - cylinder
2шт.
14
NSS
NOT SOLD SEPARAT
YOKE - cylinder
2шт.
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
16
70332
BUSHING
4шт.
17
70333
PIN - (70411 mt'g.)
8шт.
18
114-226
BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 5
HHCS - 3/8 - 24 NF x 3-1/2 (70333 mt'g.)
4шт.
19
230-4616
LOCK NUT,3/8"-24, GA
NUT - lock (3/8)
4шт.
20
14-672
BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5
HHCS - 38 - 24 NF x 4-1/2 (70333 mt'g.)
4шт.
21
230-4616
LOCK NUT,3/8"-24, GA
NUT - lock (3/8)
4шт.
22
70743
CYLINDER ASS'Y - hydraulic, R.H. (See figure 234 for breakdown)
1шт.
23
70744
CYLINDER ASS'Y - hydraulic, L.H. (See figure 234 for breakdown)
1шт.
24
70305
TRUNNION - push
2шт.
25
70385
BLOCK - trunnion (Optional)
2шт.
26
414-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS - 3/4 - 16 NF x 2-3/4 (70305 & 70385 mt'g.)
8шт.
27
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
28
70377
BRACKET - rub
2шт.
29
70734
WASHER
BLOCK - rub bracket (Optional)
2шт.
30
414-1236
BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5
HHCS - 3/4 - 16 NF x 2-1/4 (70377 & 70734 mt'g.)
4шт.
31
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
32
R14516
BEAM ASS'Y - push, R.H.
1шт.
33
R14515
BEAM ASS'Y - push, L.H.
1шт.
34
R18988
MOLDBOARD ASS'Y - (With cutting edges)
1шт.
35
NLS
NO LONGER SERVICED
PIN - (R18988 mt'g.)
2шт.
36
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (34102 mt'g.) 3/8" x 2 1/4", Slotted
2шт.
37
16792
EDGE, CUTTING
BLADE - center cutting
1шт.
38
R31855
EDGE, CUTTING
BLADE - end, R.H. HD (With 5 Bolt Holes)
1шт.
39
R31854
EDGE, CUTTING
BLADE - end, L.H. HD (With 5 Bolt Holes)
1шт.
40
19-832
BOLT
- plow, 1/2 - 13 NC x 2 (16792 mt'g.)
18шт.
41
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
18шт.
42
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
18шт.
43
19-1036
PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5
BOLT - 5/8 - 11 NC x 2-1/4 (70441 & 70442 mt'g.)
6шт.
44
92-11062
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
45
425-1010
NUT,5/8"-11, G5
6шт.
46
70328
YOKE
UNIVERSAL - piston rod
2шт.
47
R18864
PIN
- (70328 mt'g.)
2шт.
48
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (R18864 mt'g.) 3/8" x 2 1/4", Slotted
2шт.
49
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
2шт.
50
70449
CYLINDER ASS'Y - strut (See figure 234 for breakdown)
2шт.
52
70349
PIN
- (70449, 70743, & 70744 mt'g.)
4шт.
53
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted
4шт.
54
R18864
PIN
- (70449 mt'g.)
2шт.
55
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (R18864 mt'g.) 3/8" x 2 1/4", Slotted
2шт.
56
32625
WASHER - plain
6шт.
57
70424
BRACE ASS'Y - diagonal (Optional)
2шт.
58
70349
PIN
- (70424 mt'g.)
4шт.
59
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted
4шт.
60
70349
PIN
- (R14516 & R14515 mt'g.)
2шт.
61
138-178
LOCK PIN,3/8" x 2 1/4", Slotted
PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted
2шт.
62
77081
FITTING
- 45 degree grease, 1/8' NPT (Optional)
1шт.
63
R19558
BRACKET - rub (Used only with reinforced track frame)
2шт.
64
114-713
BOLT,Hex, 3/4" - 16 x 2", Gr 5, Full Thd
Hex, 3/4"-16 x 2", G5, Full Thd (R19558 mt'g.)
4шт.
