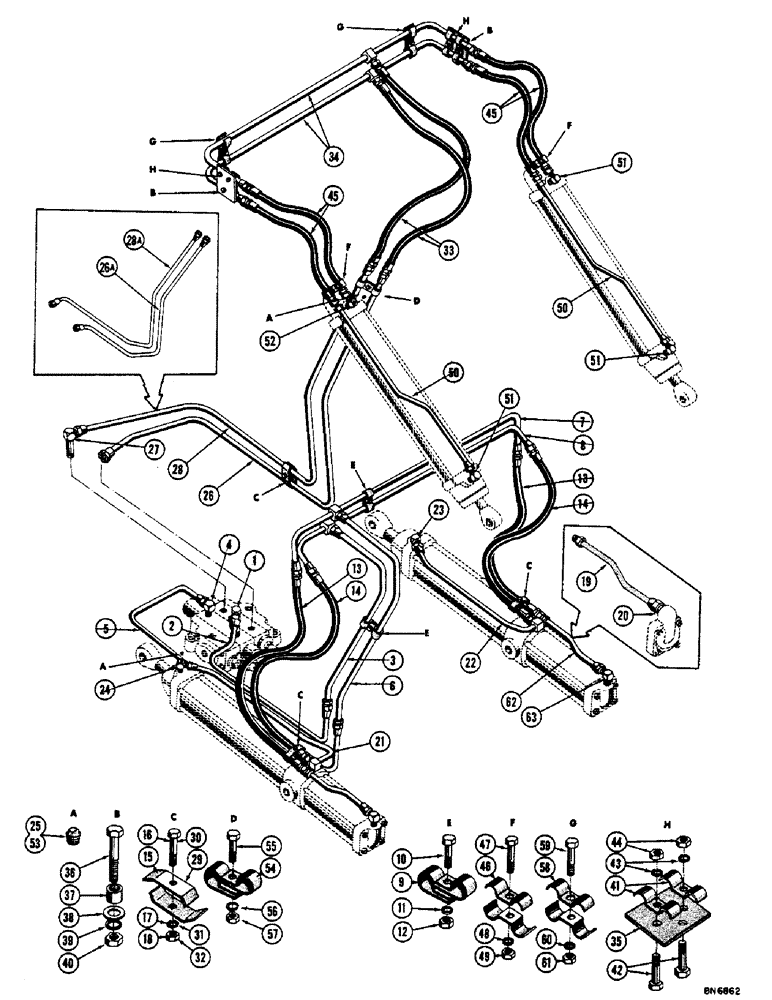

Запчасти Case 800 (174) - REAR HINGE LOADER HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
218-500
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
- extra long male (1" NPT x 1" JIC)
1шт.
2
73079
TUBE ASS'Y
1шт.
3
73081
TUBE ASS'Y
1шт.
4
218-488
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
- 90 degree male (1" NPT x 1" JIC)
1шт.
5
73077
WASHER,30.75" Length
TUBE ASS'Y
1шт.
6
73083
TUBE ASS'Y
1шт.
7
R14351
TUBE ASS'Y
1шт.
8
73066
TUBE ASS'Y
1шт.
9
R11405
CLAMP
- tube (R14351 & 73066 mt'g.)
4шт.
10
414-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
HHCS - 5/16 - 24 NF x 1-1/4 (R11405 mt'g.)
2шт.
11
92-5
LOCK WASHER,5/16"
2шт.
13
NLS
NO LONGER SERVICED
ASS'Y
2шт.
14
73085
HOSE
ASS'Y
2шт.
15
D33316
CLAMP
- hose (73124 & 73085 mt'g.)
4шт.
16
414-532
BOLT,Hex, 5/16" - 24 x 2", Gr 5
HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)
2шт.
17
92-5
LOCK WASHER,5/16"
2шт.
19
R13566
TUBE
ASS'Y - (Optional) (See ref. #62)
2шт.
20
218-446
HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
CONNECTOR - (Optional) (See ref. #63)
2шт.
21
73087
ENGINE FLYWHEEL
TUBE ASS'Y - R.H.
1шт.
22
73088
ENGINE FLYWHEEL
TUBE ASS'Y - L.H.
1шт.
23
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male (3/4" NPT x 3/4" JIC)
1шт.
24
R13365
ELBOW - 90 degree special (3/4" NPT x 3/4" JIC)
1шт.
25
221-849
PLUG,Hex Soc, 1/8"-27
- pipe, extended square head
1шт.
26
73071
TUBE ASS'Y - (For tractors with shoe type brakes only)
1шт.
26a
R14649
TUBE ASS'Y - (For tractors with disc type brakes only)
1шт.
27
218-502
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
- long, 90 degree male (1" NPT x 1" JIC)
1шт.
28
73073
KIT,36.375" Length
TUBE ASS'Y - (For tractors with shoe type brakes only)
1шт.
28a
R14647
TUBE ASS'Y - (For tractors with disc type brakes only)
1шт.
29
D33316
CLAMP
- tube (73071 & 73072 mt'g.)
2шт.
30
414-532
BOLT,Hex, 5/16" - 24 x 2", Gr 5
HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)
1шт.
31
92-5
LOCK WASHER,5/16"
1шт.
33
73085
HOSE
ASS'Y
2шт.
34
73056
TUBE ASS'Y
2шт.
35
74613
BRACKET - tube support (73056 mt'g.)
2шт.
36
14-848
BOLT,Hex, 1/2" - 20 x 3", Gr 5
HHCS - 1/2 - 20 NF x 3 (74613 mt'g.)
2шт.
37
74612
SPACER
2шт.
38
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
- plain
2шт.
39
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
40
425-118
NUT,1/2"-20, G5
- reg. SF hex. (1/2 - 20 NF)
2шт.
41
73089
ARMATURE
CLAMP - tube (73056 mt'g.)
4шт.
42
414-524
BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5
HHCS - 5/16 - 24 NF x 1-1/2 (73089 mt'g.)
4шт.
43
92-5
LOCK WASHER,5/16"
4шт.
45
74614
HOSE ASS'Y
4шт.
46
73089
ARMATURE
CLAMP - hose (74614 mt'g.)
4шт.
47
414-524
BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5
HHCS - 5/16 - 24 NF x 1-1/2 (73089 mt'g.)
2шт.
48
92-5
LOCK WASHER,5/16"
2шт.
50
R12408
TUBE ASS'Y
2шт.
51
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male (3/4" NPT x 3/4" JIC)
3шт.
52
50852
ELBOW - 90 degree special (Order (1) R14846 and (1) 221-11 for service) Flg, USR, 3/4"-10
1шт.
53
221-849
PLUG,Hex Soc, 1/8"-27
- pipe, extended square head
1шт.
54
R11405
CLAMP
- tube (73071 & 73073 mt'g.)
2шт.
55
414-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
HHCS - 5/16 - 24 NF x 1-1/4 (R11405 mt'g.)
1шт.
56
92-5
LOCK WASHER,5/16"
1шт.
58
50-3579T1
SUPPORT
CLAMP - tube (R14723 & R14718 mt'g. only)
4шт.
59
414-532
BOLT,Hex, 5/16" - 24 x 2", Gr 5
HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)
2шт.
60
92-5
LOCK WASHER,5/16"
2шт.
62
73069
TUBE ASS'Y - (Optional) (See ref. #19)
2шт.
63
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male (3/4" NPT x 3/4 JIC) (Optional) (See ref. #20)
2шт.
Выбрано товаров: 65
