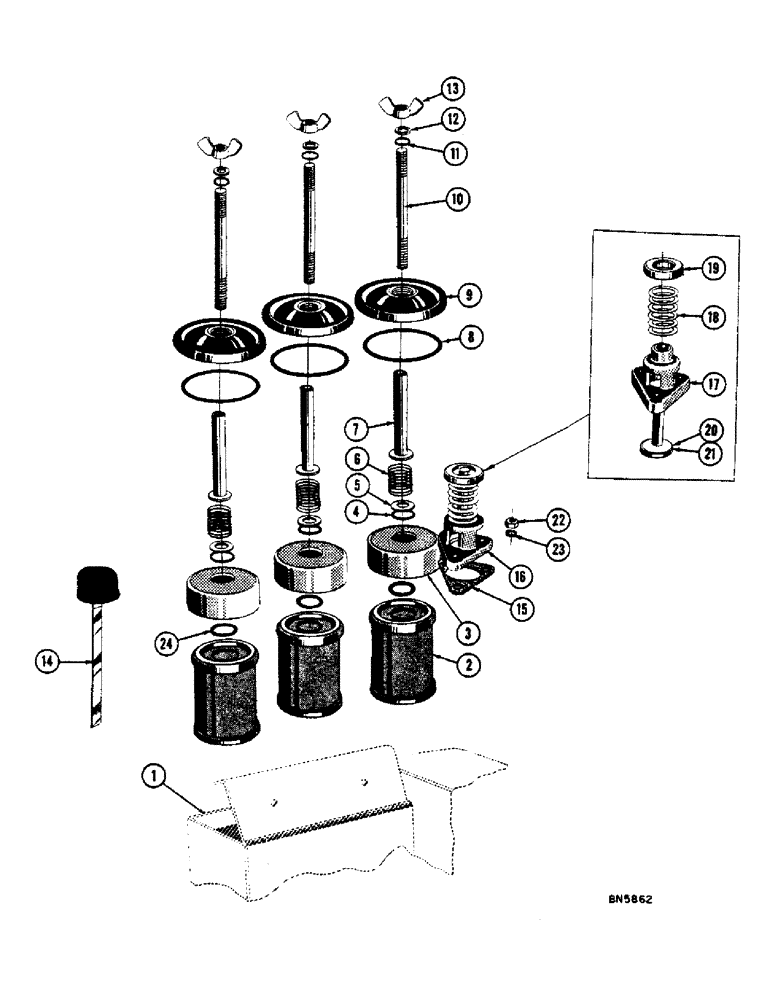

Запчасти Case 800 (144) - HYDRAULIC OIL FILTERS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

TANK ASSY - hydraulic (See figure 142, ref. #14)

1шт.

2

R11909

FILTER

ELEMENT ASSY - hydraulic filter (Screen type)

3шт.

3

71895

SPARE PART Oil filter

3шт.

4

NLS

NO LONGER SERVICED

SEAL

3шт.

5

48559

WASHER

Special

3шт.

6

R17536

SPRING

3шт.

7

70605

SPARE PART & WASHER ASSY

3шт.

8

49405

SPARE PART SEAL

3шт.

9

73893

SPARE PART

COVER - oil filter

3шт.

10

70600

STUD - oil filter

3шт.

11

49404

WASHER - rubber

3шт.

12

195-25

WASHER,3/8"

3шт.

13

704361

NUT, WING

(3/8-16 NC)

3шт.

14

74258

BREATHER FILTER & GAUGE STICK ASSY

1шт.

15

71361

GASKET - relief valve

1шт.

16

71358

LOCK VALVE

ASSY - relief

1шт.

17

71356

STUD

SPARE PART HOUSING - relief valve

1шт.

18

R17536

SPRING

Relief valve

1шт.

19

35426

WASHER - relief valve

1шт.

20

71360

VALVE ASSY - relief valve

1шт.

21

32-812

COTTER PIN,1/8" x 3/4"

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

Reg. SF hex

3шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Seal

3шт.
