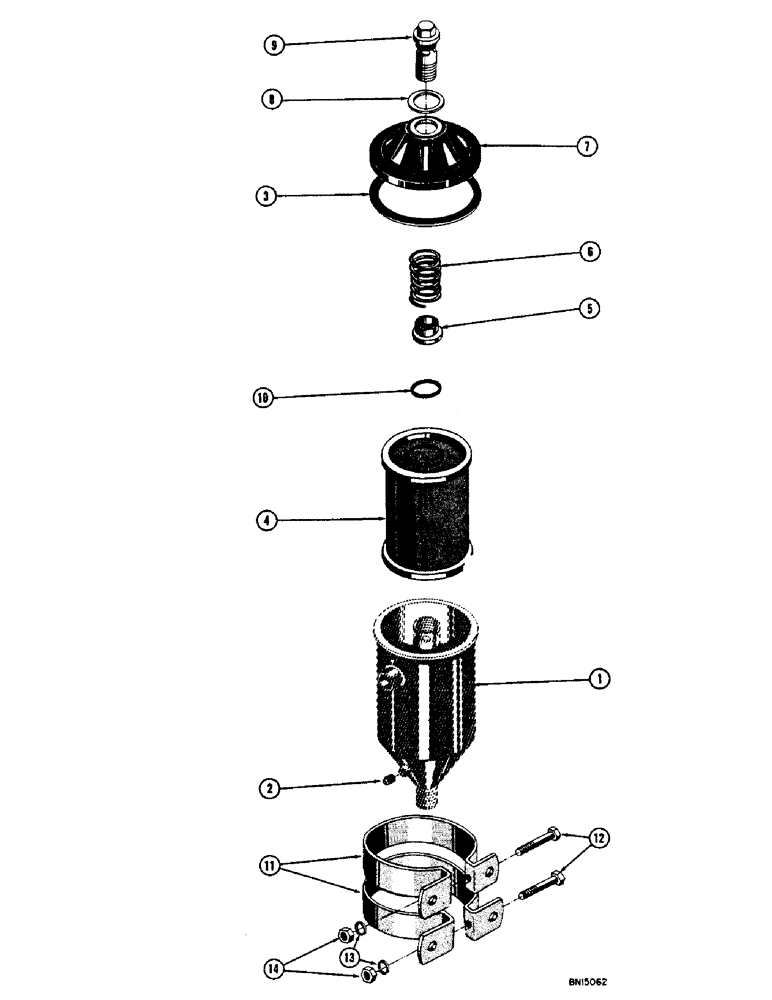

Запчасти Case 800 (118) - HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

34634

FILTER ASS'Y - transmission oil

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASS'Y - oil filter

1шт.

2

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, extended square head, 1/2" NPT

1шт.

3

NLS

NO LONGER SERVICED

- cover

1шт.

4

R11909

FILTER

SCREEN - filter

1шт.

5

35632

CUP - sealing

1шт.

6

R17536

SPRING

- oil filter

1шт.

7

R17534

COVER & RETAINER ASS'Y - filter

1шт.

8

35635

GASKET - cover bolt

1шт.

9

R17538

BOLT ASS'Y - retainer (Relief valve)

1шт.

10

R17537

GASKET - "O" ring

1шт.

11

35631

BRACKET - filter body

2шт.

12

114-228

BOLT,Hex, 3/8" - 24 x 3", Gr 5

HHCS - 3/8 - 24 NF x 3 (35631 mt'g.)

2шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

2шт.
