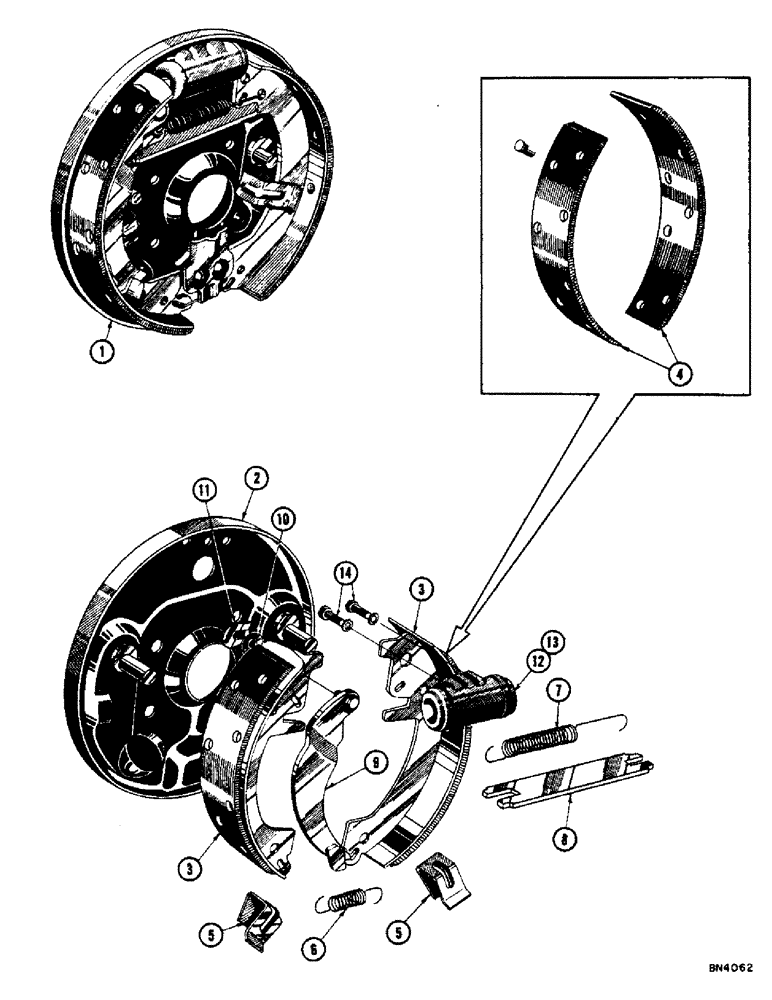

Запчасти Case 800 (098) - HYDRAULIC BRAKES (SHOE TYPE) (TYPE I) (07) - HYDRAULIC SYSTEM

1

R13779

BRAKE ASS'Y - hydraulic

2шт.

2

R11381

PLATE ASS'Y - backing

1шт.

3

R2645

PACKING - lined shoe

1шт.

4

R2646

LINING

PACKAGE - lining

1шт.

5

33242

SPRING - shoe hold down

2шт.

6

R14164

SPRING - shoe retainer, anchor end

1шт.

7

R14165

SPRING - shoe return, cylinder end

1шт.

8

72120

STRUT - parking brake lever

1шт.

9

70216

LEVER ASS'Y - parking brake

1шт.

10

33240

PLATE

WASHER - spring, anti-rattle

1шт.

11

33241

RETAINER - parking brake lever

1шт.

12

71056

COVER

CYLINDER ASS'Y - wheel

1шт.

13

6428

REPAIR KIT - wheel cylinder

1шт.

14

33443

SCREW & LOCKWASHER ASS'Y

2шт.
