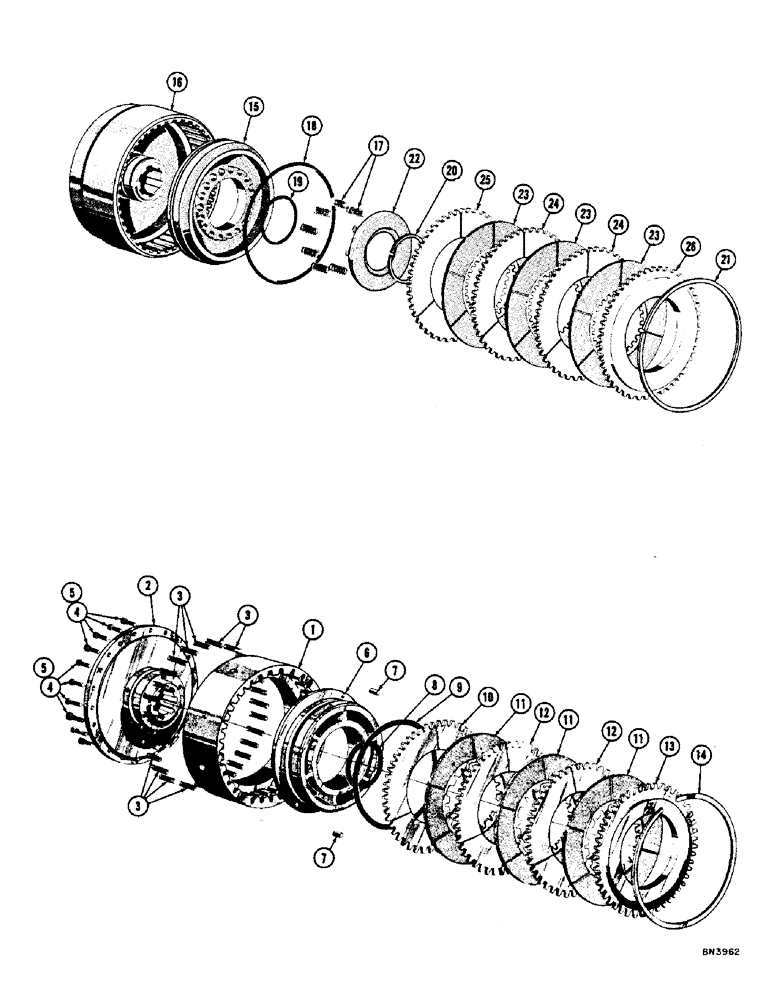

Запчасти Case 800 (096) - HYDRAULIC CLUTCH PARTS (07) - HYDRAULIC SYSTEM

70847

CLUTCH ASS'Y - hydraulic (For production only) (24 tooth)

8шт.

1

70817

CUP - clutch

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - clutch cup (Order R2866 for service)

1шт.

3

70995

SPRING - clutch

46шт.

4

34377

SCREW - socket head cap

24шт.

5

391-825

ELECTRICAL WIRE

WIRE - tie

1шт.

6

70816

PISTON - clutch cup (Order R2866 for service)

1шт.

7

70023

PIN - dowel

2шт.

8

49392

O-RING

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

R13627

PLATE

- clutch pressure

1шт.

11

R12727

DISC - clutch

3шт.

12

A50028

PLATE

- clutch

2шт.

13

R12056

PLATE - clutch backing

1шт.

14

30785

RING

- snap

1шт.

R2866

KIT

- clutch carrier and piston (Not illustrated)

1шт.

R10725

PISTON

- clutch

1шт.

R10726

CARRIER

- clutch

1шт.

A51825

SPRING

- clutch

18шт.

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

R11014

RING, SNAP

RING - snap

1шт.

R11016

RETAINER

- spring

1шт.

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

R13515

CLUTCH ASS'Y - hydraulic (For service only) (24 tooth)

8шт.

15

R10725

PISTON

- clutch

1шт.

16

R10726

CARRIER

- clutch

1шт.

17

A51825

SPRING

- clutch

18шт.

18

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

19

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

20

R11014

RING, SNAP

RING - snap

1шт.

21

30785

RING

- snap

1шт.

22

R11016

RETAINER

- spring

1шт.

23

R12727

DISC - clutch

3шт.

24

A50028

PLATE

- clutch

2шт.

25

R13627

PLATE

- pressure

1шт.

26

R12056

PLATE - clutch backing

1шт.
