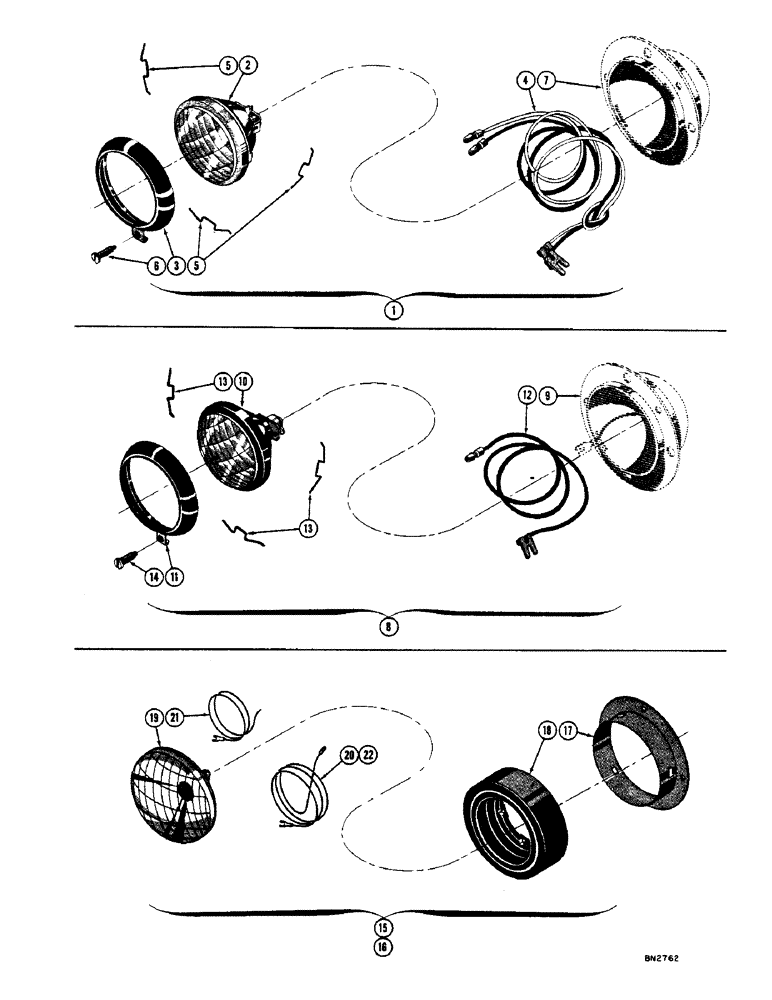

Запчасти Case 800 (076) - ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS

1

72570

LIGHT ASS'Y - tail

2шт.

2

A42294

SEALED BEAM UNIT

UNIT ASS'Y - 12 volt sealed beam

1шт.

3

73765

DOOR ASS'Y - taillight

1шт.

4

73766

ELECTRIC CABLE

WIRING ASS'Y - taillight

1шт.

5

73767

GROUND CABLE

SPRING - unit retainer

3шт.

6

73768

SCREW - door retainer

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASS'Y - taillight

1шт.

8

72343

LIGHT ASS'Y - head (See ref. #12 for identification)

2шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y - headlight

1шт.

10

A42294

SEALED BEAM UNIT

UNIT ASS'Y - 12 volt sealed beam

1шт.

11

73772

DOOR ASS'Y - headlight

1шт.

12

73771

WIRE ASS'Y - headlight (12" long)

1шт.

13

73767

GROUND CABLE

SPRING - unit retaining

3шт.

14

73768

SCREW - door retaining

1шт.

8

30737

LINE

LIGHT ASS'Y - head (See ref. #12 for identification) (Order 72343 and 39643 for service)

4шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y - light

1шт.

10

30756

UNIT ASS'Y - 12 volt sealed beam

1шт.

11

73772

DOOR ASS'Y - light

1шт.

12

32492

GEAR

WIRE ASS'Y - light (29" long)

1шт.

32493

GEAR

TERMINAL - (Not illustrated)

1шт.

13

73767

GROUND CABLE

SPRING - unit retaining

3шт.

14

73768

SCREW - door retaining

1шт.

15

R17308

LAMP

LIGHT ASS'Y - head (Rubber mt'd.) (Optional)

1шт.

16

R17309

LAMP

LIGHT ASS'Y - tail (Rubber mt'd.) (Optional)

1шт.

17

R17306

FRAME

1шт.

18

A25213

RETAINER

- (Rubber)

1шт.

19

A42294

SEALED BEAM UNIT

LAMP - 12 volt sealed beam

1шт.

20

R17305

WIRE

1шт.

21

R17303

WIRE - headlight only

1шт.

22

R17304

WIRE - taillight only

1шт.
