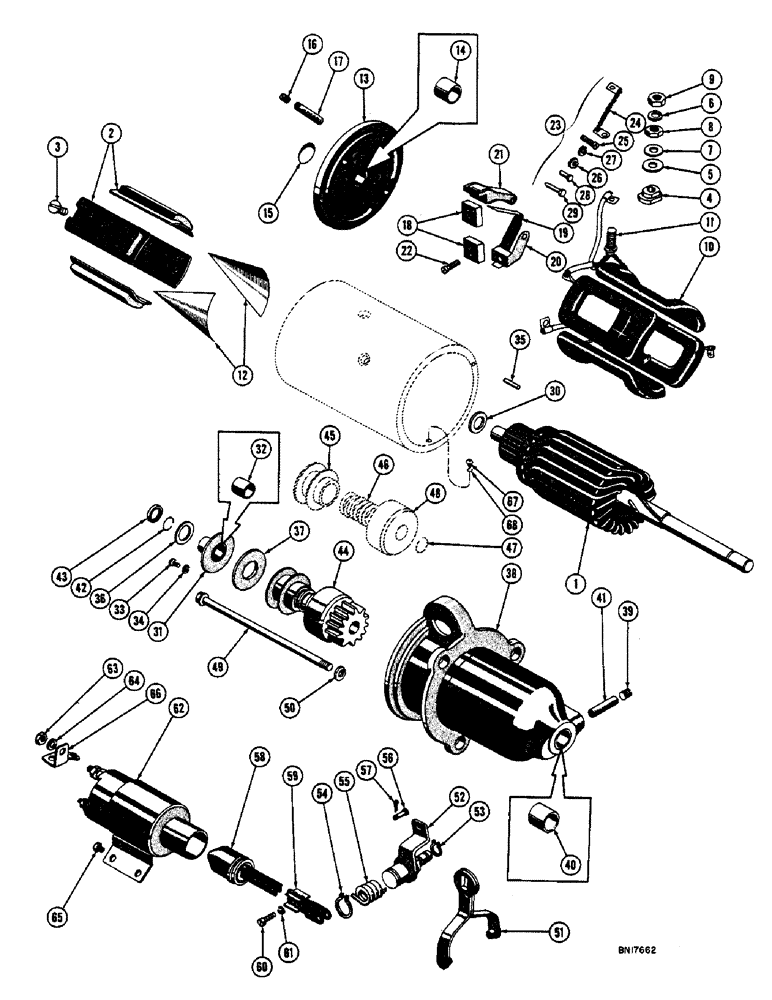

Запчасти Case 800 (072) - R17999 STARTER (06) - ELECTRICAL SYSTEMS

R17999

STARTING MOTOR

STARTER ASS'Y

1шт.

1

R15007

ARMATURE

1шт.

2

R15008

SHOE - pole

4шт.

3

R15009

SCREW - pole shoe

4шт.

4

1931783

INSULATOR

BUSHING - insulation, terminal stud

1шт.

5

1950029

WASHER

- insulation, terminal stud

1шт.

6

R15012

WASHER - lock, terminal stud

1шт.

7

R15013

WASHER

- plain, terminal stud

1шт.

8

R15014

NUT

- terminal stud (5/32" thick)

1шт.

9

R15014

NUT

- terminal stud (5/32" thick)

1шт.

10

R15016

COIL ASS'Y - field (4 coils)

1шт.

11

R15017

STUD

- terminal

1шт.

12

A41977

RUBBER INSULATOR

INSULATION - field coil

2шт.

13

A185112

FUNNEL

FRAME - commutator end

1шт.

14

R15020

BUSHING

- commutator end

1шт.

15

R15021

PLUG

- end

1шт.

16

R15022

PLUG - pipe

1шт.

17

1916439

WICK

- commutator end

1шт.

18

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

19

R15025

SPRING

- brush

4шт.

20

R15026

X

HOLDER - brush, ground

2шт.

21

1988414

HOLDER

- brush, insulated

2шт.

22

R18195

SCREW - brush attaching

4шт.

23

1877164

COMMUTATOR BRUSH

SUPPORT PACKAGE - brush

2шт.

24

1930694

CABLE

LEAD - ground

1шт.

25

R15031

X

SCREW

2шт.

26

225-14110

NUT,#10-24

2шт.

27

R15033

X

WASHER - lock

2шт.

28

R15034

RIVET

2шт.

29

1938058

AXLE PIN

PIN - brush holder

1шт.

30

R15036

WASHER - thrust, commutator end

1шт.

31

R15037

PLATE - center bearing

1шт.

32

820148

BUSHING

- center bearing

1шт.

33

R18194

SCREW - center bearing attaching

2шт.

34

R15040

X

WASHER - lock, center bearing attaching

2шт.

35

R15041

PIN - dowel, drive end

1шт.

36

R15042

WASHER - space, between center bearing and armature

1шт.

37

R15043

WASHER

- brake, between center bearing and motor drive

1шт.

38

R15044

HOUSING - drive

1шт.

39

R15022

PLUG - pipe

1шт.

40

1955994

BUSHING

1шт.

41

1916439

WICK

1шт.

42

1928022

SNAP RING

RING - piston stop retainer

1шт.

43

1928021

COLLAR

- piston stop

1шт.

44

R15050

DRIVE UNIT

DRIVE - motor

1шт.

45

NSS

NOT SOLD SEPARAT

COLLAR - motor drive

1шт.

46

NSS

NOT SOLD SEPARAT

SPRING - motor drive

1шт.

47

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - oilless

1шт.

49

R15051

BOLT - thru

2шт.

50

R15052

WASHER - lock, thru bolt

2шт.

51

R15053

LEVER - shift

1шт.

52

R15054

LEVER & SHAFT

1шт.

53

R22660

RING - retainer, shift lever shaft

1шт.

54

100-1137

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

55

R15057

SPRING - shift lever

1шт.

56

R15058

PIN - shift lever

1шт.

57

R15059

PIN - cotter, shift lever

1шт.

58

A43365

PLUNGER

1шт.

59

R15061

LINK - spacer, shift lever

1шт.

60

R15062

SCREW - link attaching

1шт.

61

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Link attaching #10

1шт.

62

R15064

SWITCH - solenoid

1шт.

63

R15015

X

NUT - solenoid attaching

1шт.

64

R15012

WASHER - lock, solenoid attaching

1шт.

65

R15067

SCREW - solenoid attaching

4шт.

66

R15068

CONNECTOR - solenoid

4шт.

67

R15069

SCREW - ground in frame

2шт.

68

R15033

X

WASHER - lock, ground in frame

2шт.

69

R17421

BOOT - for solenoid (Not illustrated)

1шт.

70

R17423

CLAMP - boot (Not illustrated)

1шт.
