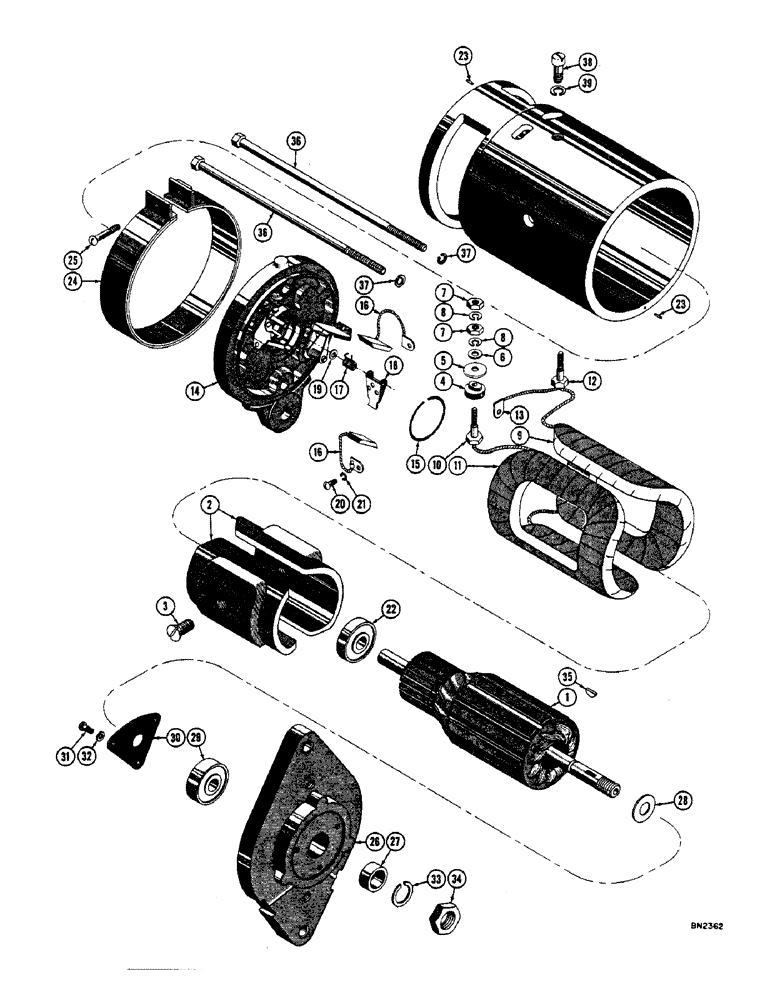

Запчасти Case 800 (066) - R13865 GENERATOR (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
R13865
GENERATOR ASS'Y - (Order R18000 for service) (See figure 68 for breakdown)
1шт.
1
R15905
ARMATURE
1шт.
2
R15075
SHOE - pole
2шт.
3
R15076
SCREW - pole shoe
2шт.
4
1858749
PLUG
INSULATOR - terminal
2шт.
5
R15078
WASHER - installation, terminal stud
2шт.
6
A41927
WASHER
- plain, terminal stud
2шт.
7
492-11010
LOCK WASHER,#10
NUT - Terminal stud
4шт.
8
R15080
TOOTH
WASHER - lock, terminal stud
4шт.
9
R15081
COIL - field, L.H.
1шт.
10
1858749
PLUG
STUD - terminal
1шт.
11
A185117
COIL
- field, R.H.
1шт.
12
1858749
PLUG
STUD - terminal
1шт.
13
R15085
CLIP -, Serial Range: terminal-brush
1шт.
14
R15086
FUNNEL
FRAME - commutator end & brush holder ass'y
1шт.
15
R15087
RING - bearing retainer
1шт.
16
1932506
BRUSH, COMMUTATOR
KIT - brush
2шт.
17
R15089
SPRING - brush
2шт.
18
1944373
NOZZLE HOLDER
ARM - brush
2шт.
19
R15091
WASHER - space, brush arm
2шт.
20
R15092
KEY,3/8" Sq x 2 3/4", Par
SCREW - brush lead attaching
2шт.
21
R15093
X
WASHER - lock, brush lead attaching
2шт.
22
465004R91
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
- ball, commutator end
1шт.
23
R15095
PIN - dowel, commutator end & drive end
2шт.
24
R15096
BAND - cover
1шт.
25
R15097
SCREW - cover band
1шт.
26
R15098
FRAME - drive end
1шт.
27
R15099
COLLAR - space (Outside drive end)
1шт.
28
R15100
COLLAR - space (Inside drive end)
1шт.
29
465004R91
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
- ball, drive end
1шт.
30
A52397
LARGE PLATE
PLATE - ball bearing retainer, drive end
1шт.
31
R15102
SCREW - bearing retainer plate mounting
3шт.
32
R15040
X
WASHER - lock, bearing retainer plate screw
3шт.
33
R15104
WASHER - lock, shaft nut
1шт.
34
A25546
NUT
- shaft
1шт.
35
22-263
KEY
- Woodruff
1шт.
36
A185120
BOLT
- thru
2шт.
37
R15070
WASHER - lock, thru bolt
2шт.
38
R15107
SCREW - frame
1шт.
39
425-104
NUT,1/4"-20, Cl 5
WASHER - lock, frame
1шт.
Выбрано товаров: 40
