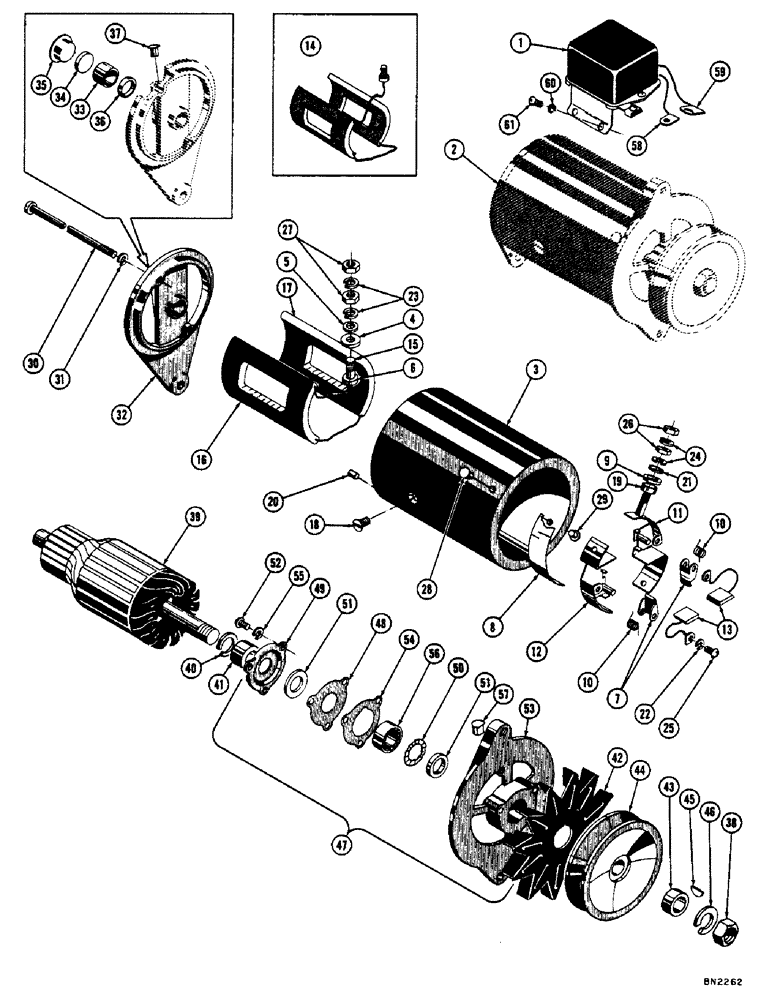

Запчасти Case 800 (064) - R12314 GENERATOR (06) - ELECTRICAL SYSTEMS

R12314

GENERATOR & VOLTAGE REGULATOR ASS'Y

1шт.

1

73436

BEARING CUP

REGULATOR ASS'Y - voltage (Order R16899 for service)

1шт.

2

NSS

NOT SOLD SEPARAT

GENERATOR ASS'Y

1шт.

3

GHG-2045

FRAME & FIELD ASS'Y

1шт.

4

GGU-30

WASHER - insulation, field terminal

1шт.

5

GGU-31

WASHER - plain, field terminal

1шт.

6

GGU-32

BUSHING - insulation, field terminal

1шт.

7

GJG-35

ARM - brush

2шт.

8

GJG-39

INSULATION - brush holder

1шт.

9

GJG-41

BUSHING - insulation, armature, terminal

1шт.

10

GJG-42

SPRING - brush

2шт.

11

GJG-1033

HOLDER - brush ground

1шт.

12

GJG-1034

HOLDER & TERMINAL - insulated brush

1шт.

13

GJG-2012BS

BRUSH SET - service

1шт.

14

GHG-1005B

COIL ASS'Y - field, complete

1шт.

15

GGU-27

STUD - field terminal, #10 - 32

1шт.

16

GHG-1007B

COIL - field, right

1шт.

17

GHG-1008B

COIL - field, left

1шт.

18

GK-38

SCREW - pole shoe

2шт.

19

MDF-25

BUSHING - insulation, brush holder rivet

1шт.

20

MN-21

PIN - dowel

2шт.

21

SW-634

WASHER - plain, armature terminal

1шт.

22

12X-195

WASHER - lock, brush lead screw, #8

2шт.

23

12X-196

WASHER - lock, field terminal, #10

2шт.

24

12X-199

WASHER - lock, armature terminal, 1/4

2шт.

25

8X-305

SCREW - round head, brush lead, #8 - 32 x 1/4

2шт.

26

8X-1063

NUT - hex., armature terminal (1/4 - 28 NF)

2шт.

27

8X-1377

NUT - hex., field terminal, #10 - 32

2шт.

28

8X-3280

RIVET - ground brush holder

2шт.

29

8X-3284

RIVET - insulation brush holder

1шт.

30

GY-20

BOLT - thru

2шт.

31

12X-199

WASHER - lock, thru bolt, 1/4

2шт.

32

GJG-2044B

HEAD ASS'Y - commutator end

1шт.

33

GJG-38A

BEARING - asbestos bronze

1шт.

34

GJG-46

WICK - felt

1шт.

35

GJG-49

COVER - bearing, commutator end

1шт.

36

GJK-1020

RETAINER - oil

1шт.

37

X-3326

OILER

1шт.

38

GBM-21B

NUT - armature shaft, drive end

1шт.

39

GHG-2030F

ARMATURE ASS'Y

1шт.

40

GAR-171

RING - snap

1шт.

41

GEG-55

SPACER - shaft, drive end, inner

1шт.

42

PU-217

FAN - ventilating

1шт.

43

PU-218

SPACER - shaft, drive end, outer

1шт.

44

PU-1233

PULLEY - drive

1шт.

45

X-260

KEY - #5 Woodruff

1шт.

46

12X-864

WASHER - lock, shaft, drive end

1шт.

47

GGW-1102C

HEAD ASS'Y - drive end

1шт.

48

GBM-125

RETAINER - felt washer, inner

1шт.

49

GBM-127

RETAINER - bearing

1шт.

50

GBM-128

RETAINER - felt washer, outer

1шт.

51

GG-164

WASHER - felt

2шт.

52

GGW-52

SCREW - round head retainer, #10 - 32 x 1/2

3шт.

53

GGW-102C

HEAD - drive end

1шт.

54

GJK-9

GASKET

1шт.

55

12X-196

WASHER - lock, retainer screw, #10

3шт.

56

X-295

BEARING - ball, SAE #203

1шт.

57

X-2961

OILER

1шт.

58

GHD-30A

LEAD ASS'Y - armature terminal

1шт.

59

GHD-33A

LEAD ASS'Y - field terminal

1шт.

60

12X-196

WASHER - lock, voltage regulator mounting, #10

1шт.

61

8X-321

SCREW - round head, voltage regulator mounting, #10 - 32 x 5/16

1шт.
