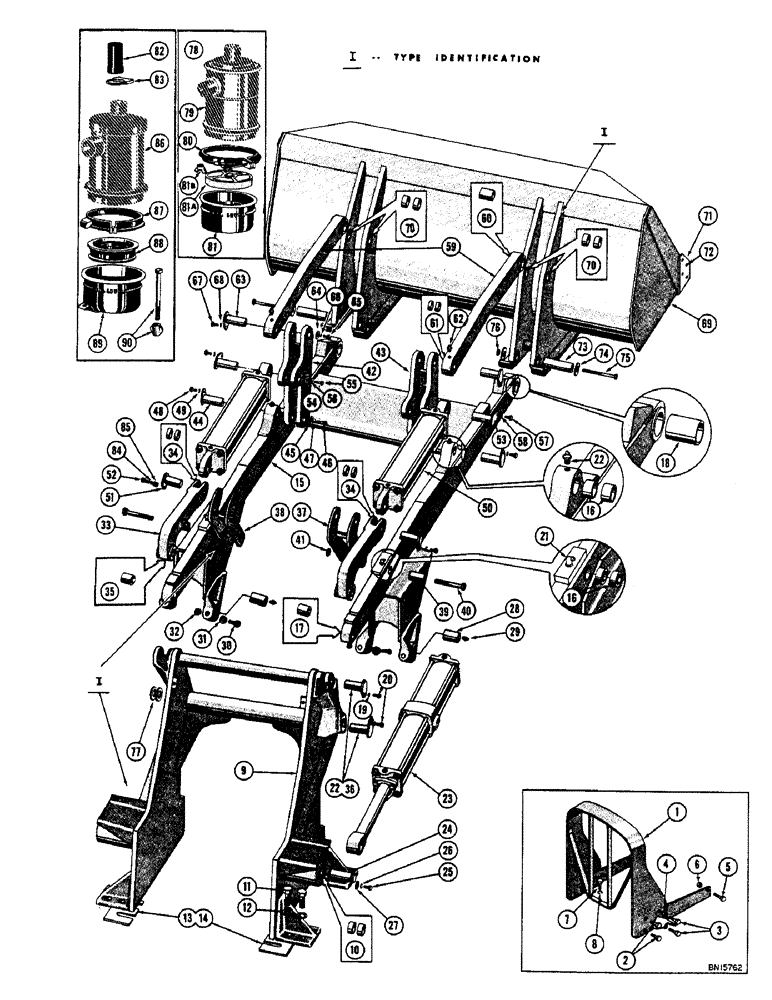

Запчасти Case 800 (166) - REAR HINGE LOADER (TYPE I) (05) - UPPERSTRUCTURE CHASSIS

1

R13976

GUARD ASS'Y - front

1шт.

2

414-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4 (R13976 mt'g.)

4шт.

3

114-715

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

Hex, 3/4"-16 x 2 1/2", G5 (R13976 mt'g.)

4шт.

4

7733058

LOCK NUT

NUT - lock (3/4 - 16 NF)

4шт.

5

14-1636

BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/4 (R13976 mt'g.)

2шт.

6

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

7

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2 (R13976 mt'g.)

1шт.

8

492-11100

LOCK WASHER,1"

1"

1шт.

9

R16580

FRAME ASS'Y - upright

1шт.

10

70466

BUSHING

4шт.

11

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-3/4 (R16580 mt'g.)

16шт.

12

492-11100

LOCK WASHER,1"

1"

16шт.

13

73169

SHIM

1шт.

14

73170

SHIM

1шт.

15

R14287

FRAME ASS'Y - lift

1шт.

16

72936

BUSHING

8шт.

17

R13421

BUSHING

2шт.

18

R14259

BUSHING

2шт.

19

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

HHCS - 5/8 - 18 NF x 1-3/4

4шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

6шт.

23

R12267

CYLINDER ASS'Y - hydraulic (See figure 224 for breakdown) (Order R13564 for service) (See figure 226 for breakdown)

2шт.

24

70524

PIN

- (72891 mt'g.)

2шт.

25

700705743

SCREW

HHCS - 5/8 - 18 NF x 1-1/4 (70524 mt'g.)

2шт.

26

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

28

72972

PIN - cylinder bracket (R16580 & R14287 mt'g.)

4шт.

29

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - straight grease, 1/4" NPT

4шт.

30

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS - 3/4 - 16 NF x 5-1/2 (72972 mt'g.)

4шт.

31

73092

WASHER - special

4шт.

32

7733058

LOCK NUT

NUT - lock

4шт.

33

R19835

ARM ASS'Y - leveling

2шт.

34

72973

BUSHING

2шт.

35

R14259

BUSHING

1шт.

36

R14702

PIN ASS'Y

4шт.

37

R19778

LEVER ASS'Y - R.H.

1шт.

38

R19777

LEVER ASS'Y - L.H.

1шт.

39

74733

SPACER

2шт.

40

14-1696

HHCS - 1 - 14 NF x 6 (R19777 & R19778 mt'g.) Hex, 1"-14 x 6, G5

2шт.

41

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

42

R13198

LEVER - L.H. (Order R2731 for service)

1шт.

43

R13199

LEVER - R.H (Order R2731 for service)

1шт.

44

R13200

PIN ASS'Y - (R13198 & R13199 mt'g.) (Order R14705 for service)

2шт.

45

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

46

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

47

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

48

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

49

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

50

R12239

CYLINDER ASS'Y - hydraulic (See figure 230 for breakdown)

2шт.

51

R15288

PIN ASS'Y

2шт.

52

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1

2шт.

53

R13200

PIN ASS'Y - (73046 mt'g.) (Order R14705 for service)

2шт.

54

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

55

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

56

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

57

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

58

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

59

R12259

ARM ASS'Y - dump

2шт.

60

70466

BUSHING

1шт.

61

72973

BUSHING

2шт.

62

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

2шт.

63

R13200

PIN ASS'Y - dump arm mt'g. (Order R14705 for service)

2шт.

64

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

65

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

66

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

67

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

68

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

69

R12240

BUCKET ASS'Y

1шт.

70

70466

BUSHING

8шт.

71

72855

BLADE

EDGE - cutting

1шт.

72

46-840

RIVET,Pop, 1/2" x 2 1/2"

- ctsk. head, 1/2 x 2-1/2 (72855 mt'g.)

27шт.

73

74731

PIN - (R12240 mt'g.) (5-7/8" long)

4шт.

74

72915

GASKET

- special

8шт.

75

14-12120

HHCS - 3/4 - 16 NF x 7-1/2 (72912 or 74731 mt'g.)

4шт.

76

7733058

LOCK NUT

NUT - hex. (3/4 - 16 NF)

4шт.

77

74298

WASHER

SPACER

1шт.

78

R11237

CLEANER ASS'Y - air (See optional type, ref. #86)

1шт.

79

NSS

NOT SOLD SEPARAT

BODY ASS'Y - air cleaner

1шт.

80

P836994

CLAMP

ASS'Y

1шт.

81

72571

CUP ASS'Y - oil

1шт.

81a

R15724

SCREEN ASS'Y - removable

1шт.

81b

R15725

X

NUT - wing

2шт.

82

R11234

STACK - air cleaner

1шт.

83

R11243

X

CLAMP ASS'Y

1шт.

84

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

85

D23740

BUSHING

2шт.

R22268

CLEANER

ASS'Y - air (Optional type)

1шт.

86

NSS

NOT SOLD SEPARAT

BODY ASS'Y - air cleaner

1шт.

87

R22419

BAND ASS'Y

1шт.

88

R21392

CUP ASS'Y - inner

1шт.

89

R22420

CUP

ASS'Y - outer

1шт.

90

R22421

BOLT ASS'Y

2шт.
