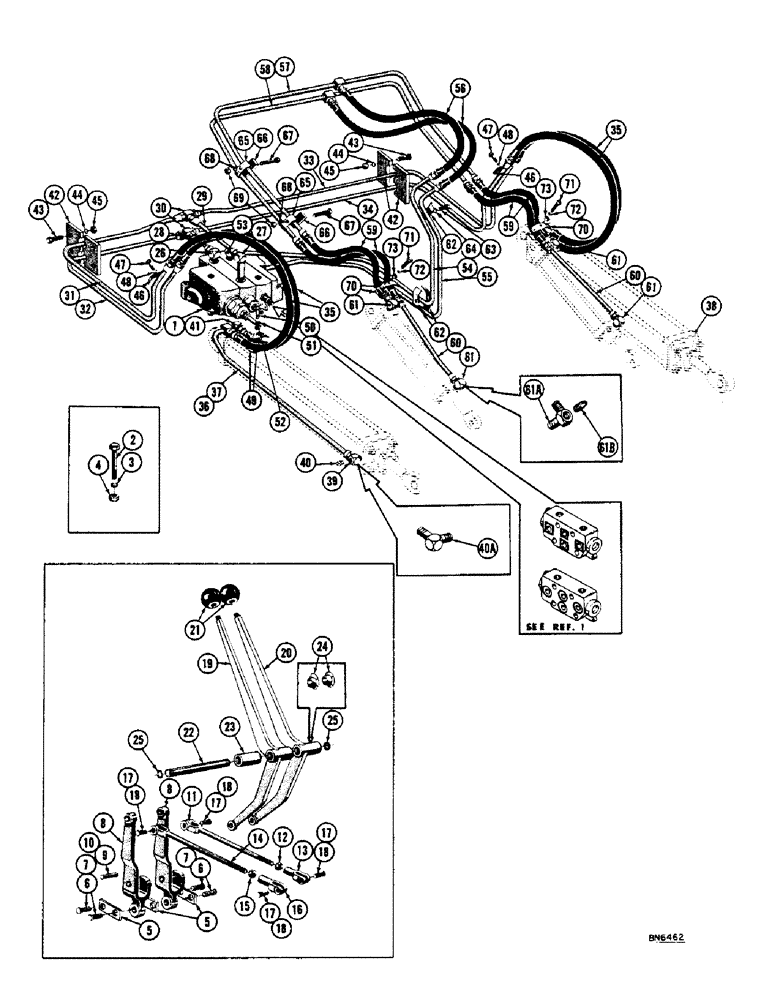

Запчасти Case 800 (162) - END HINGE LOADER HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

34369

VALVE ASS'Y - hydraulic (Type I) Round seal mt'g. between sections - see illustration (See figure 252 for breakdown) (Order R14047 for service)

1шт.

R14047

VALVE ASS'Y - hydraulic (Type II) Square seal mt'g. between sections - see illustration (See figurre 264 for breakdown)

1шт.

2

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2 (34369 or R14047 mt'g.)

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

3шт.

5

70122

LINK - control valve

4шт.

6

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - link

4шт.

7

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

8

71300

PIN

LEVER - hydraulic valve

2шт.

9

70137

PIN - valve lever

2шт.

10

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

70157

ROD ASS'Y - valve control

1шт.

11

70182

ROD - valve control

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

70169

ROD ASS'Y - valve control

1шт.

14

70183

RING

ROD - valve control

1шт.

15

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

17

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Yoke 3/8" x 1 1/16"

4шт.

18

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

4шт.

19

NSS

NOT SOLD SEPARAT

LEVER - valve control (Type I - for use without 74898 bushings) (Order (1) 74889 lever & (2) 74898 bushings)

1шт.

74889

LEVER - valve control (Type II - for use with 74898 bushings)

1шт.

20

NSS

NOT SOLD SEPARAT

LEVER - valve control (Type I - for use without 74898 bushings) (Order (1) 74890 lever & (2) 74898 bushings)

1шт.

74890

LEVER - valve control (Type II - for use with 74898 bushings)

1шт.

21

376959R2

KNOB

BALL - grip

2шт.

22

70148

SHAFT - valve lever pivot

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - lever (Type I - for use without 74898 bushings) (Order (1) 74849 spacer & (2) 74898 bushings)

1шт.

74849

SPACER - lever (Type II - for use with 74898 bushings)

1шт.

24

74898

BUSHING - nylon (optional0

6шт.

25

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

26

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NPT to 1" JIC

1шт.

27

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1" NPT to 1" JIC

1шт.

28

70700

SPRING

TUBE ASS'Y - valve to manifold, lower

1шт.

29

72278

TUBE ASS'Y - valve to manifold, upper 5.875" Length

1шт.

30

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- special

2шт.

31

73220

ARM,12.312" Length

TUBE ASS'Y - manifold, right upper

1шт.

32

73221

SLEEVE

TUBE ASS'Y - manifold, right lower

1шт.

33

72582

TUBE ASS'Y - manifold, left upper

1шт.

34

72580

JET,20.125" Length

TUBE ASS'Y - manifold, left lower

1шт.

35

71379

PLATE

HOSE ASS'Y - manifold to lift cylinders

4шт.

36

72584

FLOAT

TUBE ASS'Y - to lift cylinder front ports, L.H.

1шт.

37

72585

LEVER

TUBE ASS'Y - to lift cylinder front ports, R.H.

1шт.

38

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 3/4" JIC

1шт.

39

R14846

ELBOW - 90 special male (R.H. only)

1шт.

40

221-849

PLUG,Hex Soc, 1/8"-27

- extended square head pipe, 1/8" NPT (Special)

1шт.

40

A218-486

ELBOW - 90 degree male, 3/4" NPT to 3/4" JIC

3шт.

41

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 3/4" JIC

2шт.

42

72542

RING

BLOCK - clamping

4шт.

43

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

HHCS - 5/16 - 24 NF x 1 (72542 mt'g.)

8шт.

44

95-11034

WASHER,1/4"

- plain

8шт.

45

131-149

LOCK NUT,5/16"-24, GA

NUT - lock (5/16 - 24 NF)

8шт.

46

D33316

CLAMP

- tube (Manifold mt'g.)

2шт.

47

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2 (31665 mt'g.)

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.

49

D33316

CLAMP

- tube (71379 mt'g.)

4шт.

50

414-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

2шт.

51

92-5

LOCK WASHER,5/16"

2шт.

52

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

2шт.

53

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree long male, 1" NPT to 1" JIC

1шт.

54

72578

LEVER

TUBE ASS'Y - valve to manifold, upper

1шт.

55

72576

PLATE

TUBE ASS'Y - valve to manifold, lower

1шт.

56

71386

HOSE ASS'Y, Serial Range: --manifold

2шт.

57

71373

TUBE ASS'Y - manifold, upper

1шт.

58

71372

TUBE ASS'Y - manifold, lower

1шт.

59

D61392

HOSE

ASS'Y - manifold to dump cylinder

4шт.

60

71362

KEY

TUBE ASS'Y - to dump cylinder front ports

2шт.

61

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 3/4" JIC

4шт.

61a

R14846

ELBOW - 90 degree special

1шт.

61b

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, extended square head (1/8" NPT) Special

1шт.

62

D33316

CLAMP

- tube (71462 & 71460 mt'g.)

3шт.

63

7884729

HARDWARE

HHCS - 5/16 - 24 NF x 1-3/4 (31665 mt'g.)

1шт.

64

92-5

LOCK WASHER,5/16"

1шт.

65

D33316

CLAMP

PLATE - clamp (71373 & 71372 mt'g.)

4шт.

66

70723

SPACER - tubing

4шт.

67

14-560

HHCS - 5/16 - 24 NF x 3-3/4 (31665 mt'g.)

4шт.

68

92-5

LOCK WASHER,5/16"

4шт.

69

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

4шт.

70

D33316

CLAMP

- tube (71388 mt'g.)

4шт.

71

414-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

2шт.

72

92-5

LOCK WASHER,5/16"

2шт.

73

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

2шт.
