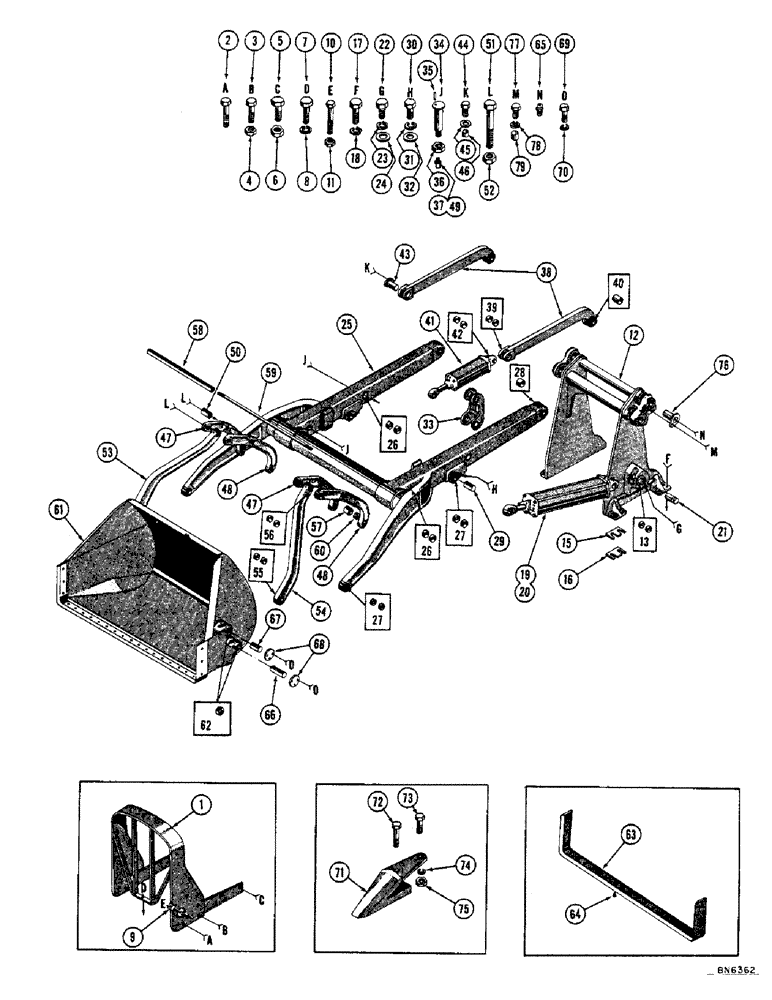

Запчасти Case 800 (158) - END HINGE LOADER (TYPE II) (05) - UPPERSTRUCTURE CHASSIS

1

72221

BUMPER ASS'Y

1шт.

2

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4 - 16 NF x 3 (72221 mt'g.)

4шт.

3

414-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4 (72221 mt'g.)

4шт.

4

7733058

LOCK NUT

NUT - lock (3/4 - 16 NF)

2шт.

5

14-1636

BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/4 (72221 mt'g.)

2шт.

6

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

7

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2 (72221 mt'g.)

1шт.

8

492-11100

LOCK WASHER,1"

1"

1шт.

9

31636

BLOCK - stop

2шт.

10

414-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2 - 20 NF x 3-1/2 (31636 mt'g.)

2шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

2шт.

12

R20198

FRAME ASS'Y - main (Used with fabricated lift arms)

1шт.

13

70466

BUSHING

4шт.

14

RESERVED

1шт.

15

72213

SHIM - loader

1шт.

16

72214

SHIM - loader

1шт.

17

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2 (R20198 mt'g.)

8шт.

18

492-11100

LOCK WASHER,1"

1"

8шт.

19

72467

CYLINDER ASS'Y - R.H. lift (Used with fabricated lift arms) (See figure 222 for breakdown)

1шт.

20

72468

CYLINDER ASS'Y - L.H. lift (Used with fabricated lift arms) (See figure 222 for breakdown)

1шт.

21

70524

PIN

- cylinder mt'g.

2шт.

22

700705743

SCREW

HHCS - 5/8 - 18 NF x 1-1/4 (70524 mt'g.)

2шт.

23

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

25

R17558

ARM ASS'Y - main lift (Fabricated)

1шт.

26

70476

BUSHING

8шт.

27

70466

BUSHING

8шт.

28

R14259

BUSHING

2шт.

29

72104

SHROUD

PIN - cylinder mt'g. (Used with fabricated lift arms)

2шт.

30

700705743

SCREW

HHCS - 5/8 - 18 NF x 1-1/4 (72104 mt'g.)

4шт.

31

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

495-21069

WASHER,5/8"

4шт.

33

R15499

LEVER ASS'Y - (Used with fabricated lift arms)

2шт.

34

72659

PIN ASS'Y - (R15499 mt'g.)

2шт.

35

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

PIN - drive lock (72659 mt'g.)

2шт.

36

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

37

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Used with 72659 pin) 1/8"-27 x .66 lg

2шт.

38

R15307

ARM ASS'Y - bucket leveling

2шт.

39

72973

BUSHING

2шт.

40

R14259

BUSHING

1шт.

41

72257

CYLINDER ASS'Y - hydraulic (Used with fabricated lift arms) (Order with ref. #42 for service) (See figure 232 for breakdown)

2шт.

42

72973

BUSHING

4шт.

43

R15493

PIN ASS'Y - (R15499 mt'g.)

2шт.

44

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1 (R15493 mt'g.)

2шт.

45

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

46

D23740

BUSHING

2шт.

47

72621

LEVER - R.H. (Used with fabricated lift arms)

2шт.

48

72622

LEVER - L.H. (Used with fabricated lift arms)

2шт.

72659

PIN ASS'Y - lever (72621 & 72622 mt'g.) (Not illustrated)

2шт.

19269R1

LOCK PIN,3/8" x 1", Slotted

PIN, , Drive lock (72659 mt'g.) (Not illustrated) 3/8" x 1", Slotted

2шт.

49

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Used with 72659 pin) 90º, 1/8" NPT x .84" lg

2шт.

50

70512

SPACER

2шт.

51

14-1696

HHCS - 1 - 14 NF x 6 (Cylinder mt'g.) Hex, 1"-14 x 6, G5

2шт.

52

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

53

70521

ARM ASS'Y - R.H. dump

1шт.

54

70522

ARM ASS'Y - L.H. dump

1шт.

55

70466

BUSHING

2шт.

56

70476

BUSHING

2шт.

57

70512

SPACER

2шт.

58

72738

DRIVE BUSHING

SPACER - tie rod

1шт.

59

72739

WASHER

ROD - tie

1шт.

60

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

2шт.

61

70548

BUCKET ASS'Y

1шт.

62

70466

BUSHING

8шт.

63

70509

EDGE - cutting

1шт.

64

46-836

RIVET,Csk, 1/2" x 2 1/4"

- 1/2" dia. x 2-1/4

23шт.

65

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

4шт.

66

70525

PIN - (70548 mt'g.)

2шт.

67

70526

PIN - (70548 mt'g.)

2шт.

68

70531

PIN

PLATE - end cover

4шт.

69

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd

12шт.

70

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, Shakeproof

12шт.

8553

SPARE PART

TEETH INSTALLATION - digging (Optional equipment)

1шт.

71

70544

X

TOOTH - digging

7шт.

72

114-417

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

Hex, 1/2"-20 x 3 1/4, G5 (70544 mt'g.)

7шт.

73

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

7шт.

74

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

75

425-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

14шт.

76

R14702

PIN ASS'Y

4шт.

77

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

HHCS - 5/8 - 18 NF x 1-3/4 (R14702 mt'g.)

4шт.

78

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

79

D23740

BUSHING

2шт.
