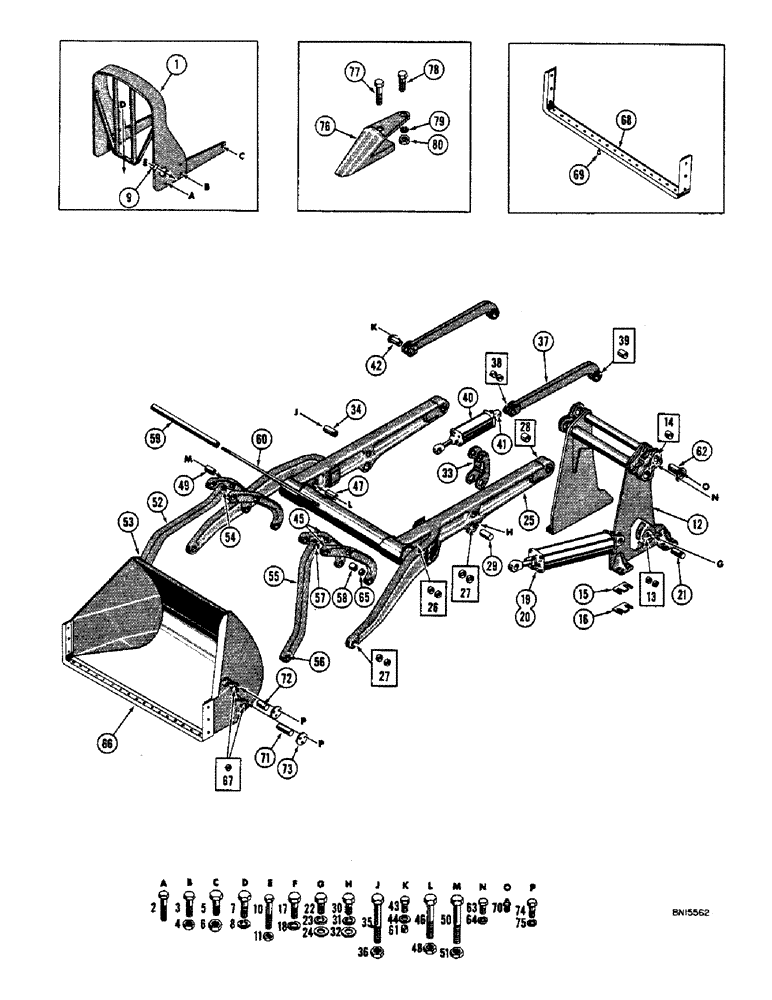

Запчасти Case 800 (154) - END HINGE LOADER (TYPE I) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
72221
BUMPER ASS'Y
1шт.
2
19-68
BOLT,Hex, 3/4" - 16 x 3", Gr 5
HHCS - 3/4 - 16 NF x 3 (72221 mt'g.)
4шт.
3
414-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS - 3/4 - 16 NF x 2-3/4 (72221 mt'g.)
4шт.
4
7733058
LOCK NUT
NUT - lock (3/4 - 16 NF)
2шт.
5
14-1636
BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-1/4 (72221 mt'g.)
2шт.
6
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
7
14-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-1/2 (72221 mt'g.)
1шт.
8
492-11100
LOCK WASHER,1"
1"
1шт.
9
31636
BLOCK - stop
2шт.
10
414-856
BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5
HHCS - 1/2 - 20 NF x 3-1/2 (31636 mt'g.)
2шт.
11
230-4618
LOCK NUT,1/2"-20, GA
NUT - lock (1/2 - 20 NF)
2шт.
12
R20197
FRAME ASS'Y - main
1шт.
13
70466
BUSHING
4шт.
14
R14350
BUSHING
2шт.
15
72213
SHIM - loader
1шт.
16
72214
SHIM - loader
1шт.
17
14-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-1/2 (R20197 mt'g.)
8шт.
18
492-11100
LOCK WASHER,1"
1"
8шт.
19
70450
GROOVED PULLEY
CYLINDER ASS'Y - R.H. lift (See figure 222 for breakdown)
1шт.
20
70451
LID
CYLINDER ASS'Y - L.H. lift (See figure 222 for breakdown)
1шт.
21
70524
PIN
- (Cylinder mt'g.)
2шт.
22
700705743
SCREW
HHCS - 5/8 - 18 NF x 1-1/4 (70524 mt'g.)
2шт.
23
92-11062
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
24
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
25
R16862
ARM ASS'Y - main lift
1шт.
26
70476
BUSHING
8шт.
27
70466
BUSHING
8шт.
8
R14259
BUSHING
2шт.
29
70524
PIN
- (Cylinder mt'g.)
2шт.
30
700705743
SCREW
HHCS - 5/8 - 18 NF x 1-1/4 (70524 mt'g.)
4шт.
31
92-11062
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
32
495-21069
WASHER,5/8"
4шт.
33
R15505
LEVER ASS'Y
2шт.
34
70511
SPACER - lever
2шт.
35
14-1696
HHCS - 1 - 14 NF x 6 (R15505 mt'g.) Hex, 1"-14 x 6, G5
2шт.
36
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
37
R15307
ARM ASS'Y - bucket leveling
2шт.
38
72973
BUSHING
2шт.
39
R14259
BUSHING
1шт.
40
72258
CYLINDER ASS'Y - hydraulic (Order with ref. #41 for service) (See figure 228 for breakdown) (Order 72257 for service) (See figure 232 for breakdown)
2шт.
41
72973
BUSHING
4шт.
42
R15288
PIN ASS'Y - (R15505 mt'g.)
2шт.
43
354393X1
SCREW
HHCS - 1/2 - 20 NF x 1 (R15288 mt'g.)
2шт.
44
95-8
WASHER,1/2"
- plain 1/2"
2шт.
45
70491
PLUG
LEVER ASS'Y
4шт.
46
14-1688
BOLT,Hex, 1" - 14 x 5-1/2", Gr 5
HHCS - 1 - 14 NF x 5-1/2 (70491 mt'g.)
2шт.
47
70512
SPACER
2шт.
48
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
49
70512
SPACER
2шт.
50
14-1696
HHCS - 1 - 14 NF x 6 (Cylinder mt'g.) Hex, 1"-14 x 6, G5
2шт.
51
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
52
70521
ARM ASS'Y - R.H. dump
1шт.
53
70466
BUSHING
2шт.
54
70476
BUSHING
2шт.
55
70522
ARM ASS'Y - L.H. dump
1шт.
56
70466
BUSHING
2шт.
57
70476
BUSHING
2шт.
58
70512
SPACER
2шт.
59
70520
SPACER - tie rod
1шт.
60
70519
ROD - tie
1шт.
61
D23740
BUSHING
2шт.
62
R14702
PIN ASS'Y
4шт.
63
414-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
HHCS - 5/8 - 18 NF x 1-3/4 (R14702 mt'g.)
4шт.
64
92-11062
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
65
230-46116
LOCK NUT,1"-14, GA
NUT - lock (1 - 14 NF)
2шт.
66
70548
BUCKET ASS'Y
1шт.
67
70466
BUSHING
8шт.
68
70509
EDGE - cutting
1шт.
69
46-836
RIVET,Csk, 1/2" x 2 1/4"
- 1/2" dia. x 2-1/4
23шт.
71
70525
PIN - (70548 mt'g.)
2шт.
72
70526
PIN - (70548 mt'g.)
2шт.
73
70531
PIN
PLATE - end cover
4шт.
74
414-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5
Hex, 3/8"-24 x 1 1/4", G5, Full Thd
12шт.
75
93-41039
LOCK WASHER,Ext Tooth, 3/8"
WASHER - lock, Shakeproof
12шт.
8553
SPARE PART
TOOTH INSTALLATION - digging (Optional equipment)
1шт.
76
70544
X
TOOTH - digging
7шт.
77
114-417
BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5
Hex, 1/2"-20 x 3 1/4, G5 (70544 mt'g.)
7шт.
78
414-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
HHCS - 1/2 - 20 NF x 2-1/4
7шт.
79
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
14шт.
80
425-118
NUT,1/2"-20, G5
- regular SF hex. (1/2 - 20 NF)
14шт.
