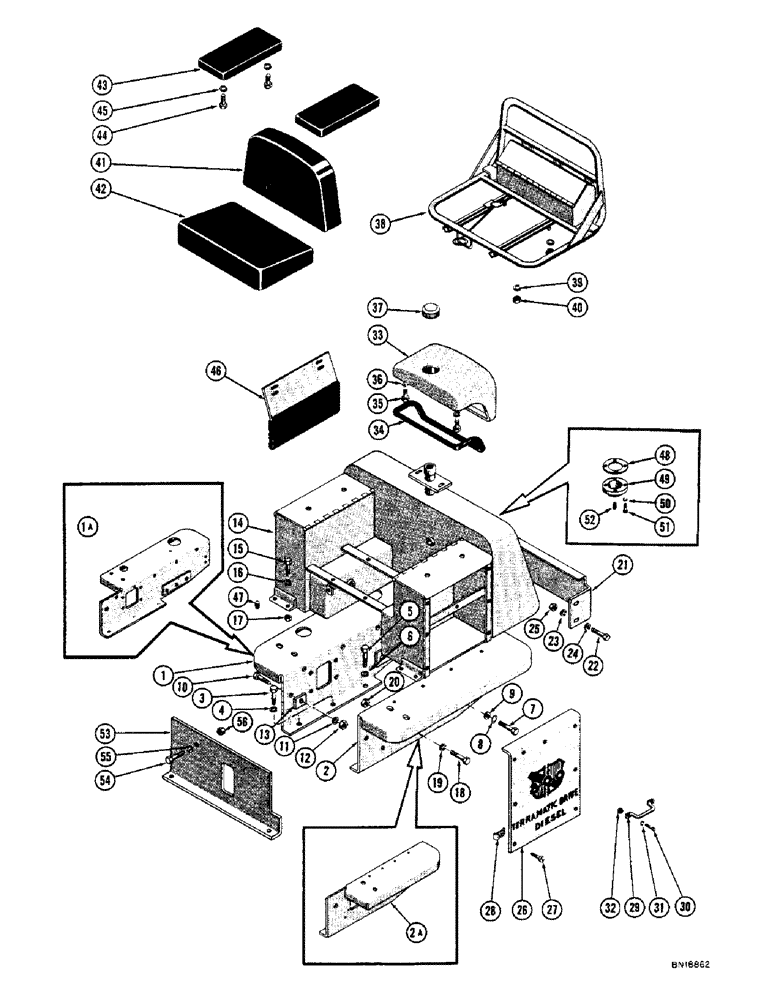

Запчасти Case 800 (142) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

70249

FENDER ASS'Y - R.H. (Used with type I floor plate)

1шт.

R11338

FENDER ASS'Y - R.H. (Used with type II floor plate)

1шт.

1a

R11242

FENDER ASS'Y - R.H. (Used on Loader tractor only)

1шт.

2

R23361

FENDER ASS'Y - L.H. (Used on type I floor plate)

1шт.

R11337

FENDER ASS'Y - L.H. (Used with type II floor plate)

1шт.

2a

R11240

FENDER ASS'Y - L.H. (Used on Loader tractor only)

1шт.

3

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (Fender mt'g.)

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (Fender mt'g.)

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (Fender mt'g.)

6шт.

8

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER - lock, Shakeproof (1/2")

6шт.

9

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- plain () 1/2"

6шт.

10

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (Fender mt'g.)

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-118

NUT,1/2"-20, G5

- regular SF hex. (1/2 - 20 NF)

2шт.

13

72033

SCREW

SPACER - fender

2шт.

14

R23360

SEAT & TANK ASS'Y - weld (Used with type I floor plate)

1шт.

R11331

SEAT & TANK ASS'Y - weld (Used with type II floor plate)

1шт.

15

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

(R23360 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

16

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

4шт.

18

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1 (R23360 mt'g.)

7шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

20

425-118

NUT,1/2"-20, G5

- regular SF hex. (1/2 - 20 NF)

7шт.

21

R13898

GUARD - rear

1шт.

22

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (R13898 mt'g.)

4шт.

23

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

495-21044

WASHER,3/8"

4шт.

25

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

4шт.

26

R12084

PLATE - outer side

1шт.

27

R11360

SCREW - self tapping (R12084 mt'g.)

6шт.

28

R11355

NUT - "U" type

6шт.

29

70248

LEVER

HANDLE - grab

2шт.

30

353517X1

SCREW

HHCS - 5/16 - 24 NF x 3/4 (70248 mt'g.)

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

4шт.

33

70217

HOUSING - rear light

1шт.

34

70214

CHANNEL

- rubber

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(70217 mt'g.) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

36

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

A33558

CAP

- fuel tank

1шт.

38

R11756

SEAT FRAME & TOOL BOX ASS'Y - welded

1шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF) (R11756 mt'g.)

4шт.

41

72359

CUSHION - back

1шт.

42

70176

CUSHION - seat

1шт.

43

70222

REST - arm

2шт.

44

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(70222 & 74097 mt'g.) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

46

74097

PAD

- side

2шт.

47

217-442

PLUG,3/4" - 14

- pipe, square head (3/4") (Hydraulic drain)

1шт.

48

35621

GASKET

- fuel tank drain

1шт.

49

70244

CAP - fuel tank drain

1шт.

50

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

51

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

4шт.

52

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, square head (1/8") (Fuel drain)

1шт.

53

70614

SUPPORT - floor plate (Used with 72565 floor plate only)

1шт.

54

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (70614 mt'g.)

1шт.

55

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

56

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.
