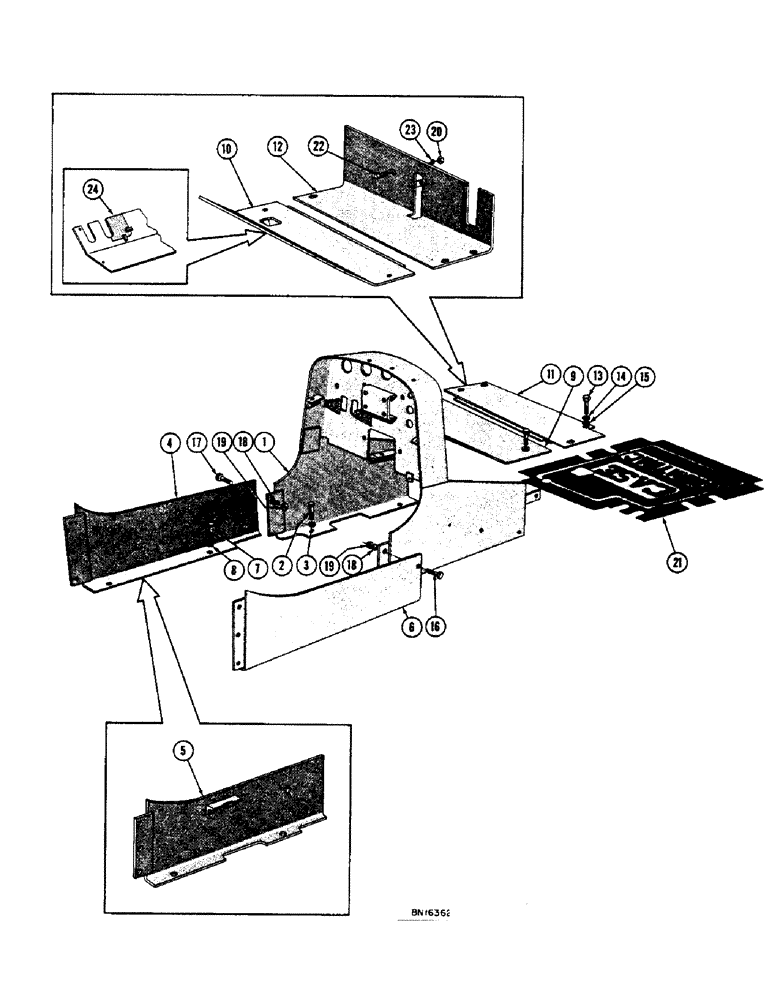

Запчасти Case 800 (140) - SIDE PLATES, COWL, AND DASH (05) - UPPERSTRUCTURE CHASSIS

1

R23272

COWL ASS'Y

1шт.

2

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

70936

PANEL - R.H. engine side (Used with type I floor plate)

1шт.

5

R11117

PANEL - R.H. engine side (Used with type II floor plate)

1шт.

6

70937

PANEL - L.H. engine side

1шт.

7

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

R23265

PLATE ASS'Y - floor, front (Type I)

1шт.

10

R23264

PLATE ASS'Y - floor, front (Type II)

1шт.

11

72565

PLATE ASS'Y - floor, rear (Type I)

1шт.

12

R23261

PLATE ASS'Y - floor, rear (Type II)

1шт.

13

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

14

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

495-21044

WASHER,3/8"

4шт.

16

354393X1

SCREW

HHCS - 1/2 - 20 NF x 1

1шт.

17

7701063

SCREW,Hex, 1/2" - 20 x 1 1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

425-118

NUT,1/2"-20, G5

- regular SF hex. (1/2 - 20 NF)

2шт.

20

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

21

71670

MAT - floor

1шт.

22

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

23

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

R16933

COVER - access

1шт.
