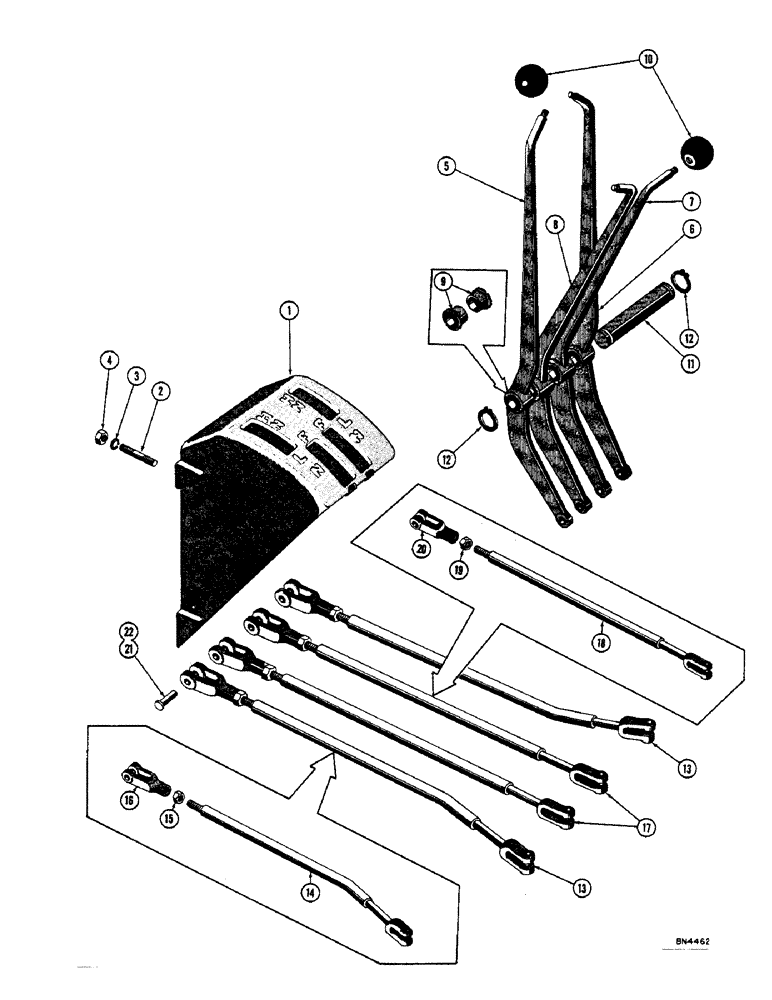

Запчасти Case 800 (108) - CONTROL TOWER (05) - UPPERSTRUCTURE CHASSIS

1

114-418

BOLT,Hex, 1/2" - 20 x 6", Gr 5

TOWER - transmission control

1шт.

2

46510

STUD - 1/2 - 13 NC x 2 (70111 mt'g.)

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

LEVER - high-low shift, L.H. (Type I - for use without 74898 bushing) (Order (1) 74885 lever & (2) 74898 bushings)

1шт.

74885

LEVER - high-low shift, L.H. (Type II - for use with 74898 bushings)

1шт.

6

NSS

NOT SOLD SEPARAT

LEVER - high-low shift, R.H. (Type I - for use without 74898 bushings) (Order (1) 74886 lever & (2) 74898 bushings)

1шт.

74886

LEVER - high-low shift, R.H. (Type II - for use with 74898 bushings)

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - forward-reverse, L.H. (Type I - for use without 74898 bushings) (Order (1) 74883 lever & (2) 74898 bushings)

1шт.

74883

LEVER - forward-reverse, L.H. (Type II - for use with 74898 bushings)

1шт.

8

NSS

NOT SOLD SEPARAT

LEVER - forward-reverse, R.H. (Type I - for use without 74898 bushings) (Order (1) 74884 lever & (2) 74898 bushings)

1шт.

74884

LEVER - forward-reverse, R.H. (Type II - for use with 74898 bushings)

1шт.

9

74898

BUSHING - nylon (For use with Type II levers only)

8шт.

10

376959R2

KNOB

BALL - grip

4шт.

11

70147

SHAFT

- lever pivot

1шт.

12

W-10757-S

RING - snap

2шт.

13

72251

ROD ASS'Y - transmission control

2шт.

14

72252

SHAFT

ROD - transmission control

1шт.

15

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

1шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Yoke 5/16"-24

1шт.

17

72254

SCREW

ROD ASS'Y - transmission control

2шт.

18

72255

BLOCK

ROD - transmission control

1шт.

19

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

1шт.

20

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Yoke 5/16"-24

1шт.

21

763268

CLEVIS PIN

PIN - yoke

8шт.

22

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

8шт.
