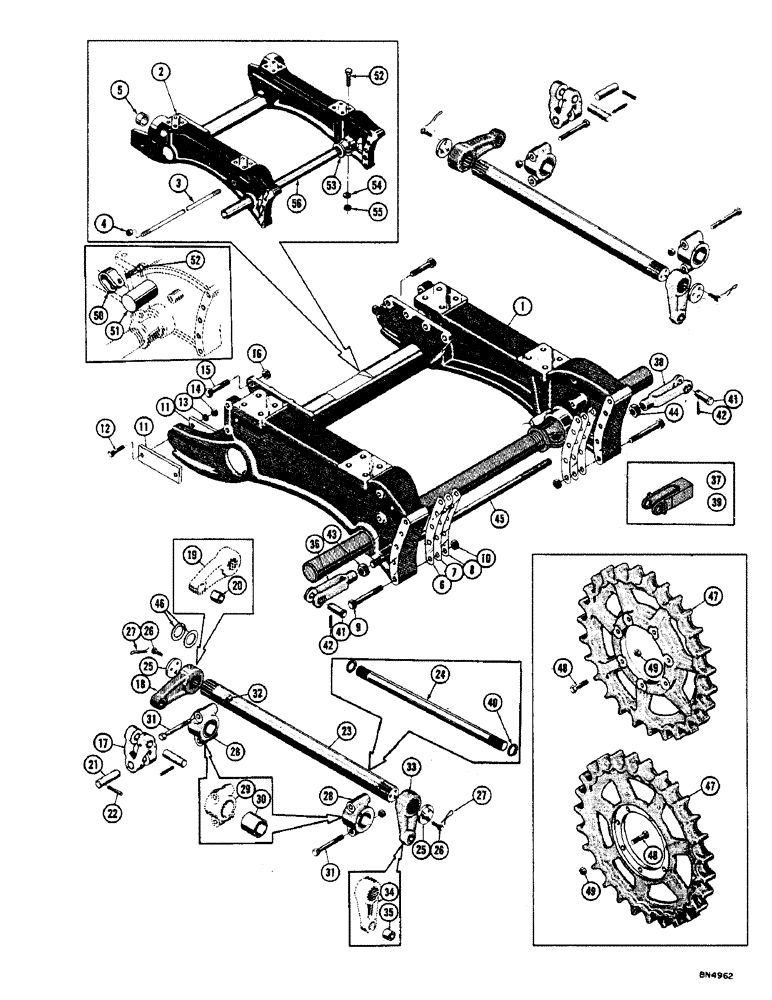

Запчасти Case 800 (120) - SUSPENSION SYSTEM (04) - UNDERCARRIAGE

1

NSS

NOT SOLD SEPARAT

FRAME ASS'Y - main (60" gauge - illustrated) (Order R15797 & R4149 for service)

1шт.

NSS

NOT SOLD SEPARAT

FRAME ASS'Y - main (54" gauge - not illustrated) (Order R15798 & R4149 for service)

1шт.

2

R15797

FRAME ASS'Y - main, service (60" gauge - illustrated) (Order with kit R4149 for service)

1шт.

R15798

FRAME ASS'Y - main, service (54" gauge - not illustrated) (Order with kit - R4149 for service)

1шт.

3

R14157

ROD - compression

1шт.

4

25-1124

NUT,1 1/2"-12, G5

- reg. SF hex. (1-1/2 - 12 NC) (R15797 & R15798 frames only)

4шт.

5

70091

BUSHING

- (R15797 & R15798 frames only)

2шт.

6

71655

SHIM

1шт.

7

71656

SHIM

1шт.

8

72151

SHIM

1шт.

9

71976

AMMETER

HHCS - 3/4 - 16 NF x 6-1/2 special (R15797 mt'g.)

10шт.

70179

HHCS - 3/4 - 16 NF x 4-1/4 special (R15798 mt'g.)

10шт.

10

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

10шт.

11

70171

PLATE - wear

4шт.

12

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4 (70171 mt'g.)

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

425-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

4шт.

15

114-713

BOLT,Hex, 3/4" - 16 x 2", Gr 5, Full Thd

Hex, 3/4"-16 x 2", G5, Full Thd (R15797 mt'g.) (To engine frame)

8шт.

114-713

BOLT,Hex, 3/4" - 16 x 2", Gr 5, Full Thd

Hex, 3/4"-16 x 2", G5, Full Thd (R15798 mt'g.) (To engine frame)

6шт.

16

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF) (60" gauge)

8шт.

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF) (54" gauge)

6шт.

17

70041

KEY

LINK - torsion (1-1/4" hole dia.) (Used with 71010 & 71011 recoil housings only)

2шт.

R13786

LINK

- torsion (1-15/32" hole dia.) (Used with R23227 & R23228 recoil housings only)

2шт.

18

72028

ASS'Y - front equalizer (60" gauge) (Type I - used with 70041 torsion link only)

2шт.

72041

LEVER ASS'Y - front equalizer (54" gauge) (Type I - used with 70041 torsion link only)

1шт.

R13132

LEVER

ASS'Y - front equalizer (60" gauge) (Type II - used with R13786 torsion link only)

2шт.

R13152

LEVER ASS'Y - front equalizer (54" gauge) (Type II - used with R13786 torsion link only)

2шт.

19

NSS

NOT SOLD SEPARAT

LEVER - front equalizer

1шт.

20

70028

BUSHING

- (Used in 72028 and 72041 levers only)

1шт.

D36473

BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L

- (Used in R13132 and R13152 levers only)

1шт.

21

70089

PIN - socket link (1-1/4" dia.) (70041 mt'g. only)

4шт.

R13128

PIN

- socket link (1-15/32" dia.) (R13786 mt'g. only)

4шт.

22

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, , Drive lock (70089 mt'g. only) 3/8" x 2 1/2", Slotted

4шт.

438-13244

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, , drive lock (R13128 mt'g. only) 1/2" x 2 3/4", Slotted

4шт.

23

R13450

X

BAR - torsion (Type I - for lock plates)

2шт.

24

D42882

SHAFT

BAR - torsion (Type II - for snap rings)

2шт.

25

74541

PLATE - lock

4шт.

26

46947

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled) (74541 mt'g.)

12шт.

27

391-825

ELECTRICAL WIRE

WIRE - tie

1шт.

28

70096

BRACKET

ASS'Y - torsion bar

4шт.

29

NSS

NOT SOLD SEPARAT

BRACKET - torsion bar

1шт.

30

70091

BUSHING

1шт.

31

14-1296

BOLT,Hex, 3/4" - 16 x 6", Gr 5

HHCS - 3/4 - 16 NF x 6 (70096 mt'g.)

8шт.

32

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

8шт.

33

72040

FITTING

ASS'Y - rear equalizer

2шт.

34

NSS

NOT SOLD SEPARAT

LEVER - rear equalizer

1шт.

35

70914

BUSHING

1шт.

36

71675

YOKE ASS'Y - L.H. (Type I) (Order R16591 for service)

1шт.

37

R16591

YOKE

ASS'Y - L.H. (Type II)

1шт.

38

71676

YOKE ASS'Y - R.H. (Type I) (Order R16592 for service)

1шт.

39

R16592

YOKE

ASS'Y - R.H. (Type II)

1шт.

40

R18674

RING

- snap (R18705 mt'g.)

4шт.

41

71673

PIN - yoke

2шт.

42

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

PIN, GROOVED, 1/4" x 1 1/2", Type E

2шт.

43

129-330

NUT,1"-14, G5, LH

1шт.

44

704775

NUT

- hex. (1 - 14 NF, R.H. threads)

1шт.

45

71323

LOCK NUT

ROD - equalizer (60" gauge)

1шт.

70093

ROD - equalizer (54" gauge)

1шт.

46

74298

WASHER

SPACER - (60" gauge only)

1шт.

47

R52351

DRIVE SPROCKET

SPROCKET - drive (Standard)

2шт.

74880

SPROCKET - drive (Optional snow type)

2шт.

48

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- drive sprocket

14шт.

49

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

14шт.

R4149

KIT - pivot shaft clamp

2шт.

50

R20158

CLAMP

"U" CLAMP

2шт.

51

NSS

NOT SOLD SEPARAT

BAR - clamp stop (Order R4149 for service)

2шт.

52

19-473

BOLT,Hex, 3/4" - 16 x 4 1/2", Gr 8

HHCS - 3/4 - 16 NF x 4-1/2 (R20158 & R14205 mt'g.)

2шт.

53

R14205

CLAMP

- pivot

2шт.

54

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

55

425-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

2шт.

56

R14277

SHAFT - pivot (60" gauge only) (Threaded)

1шт.

R14278

SHAFT

- pivot (54" gauge only) (Threaded)

1шт.
