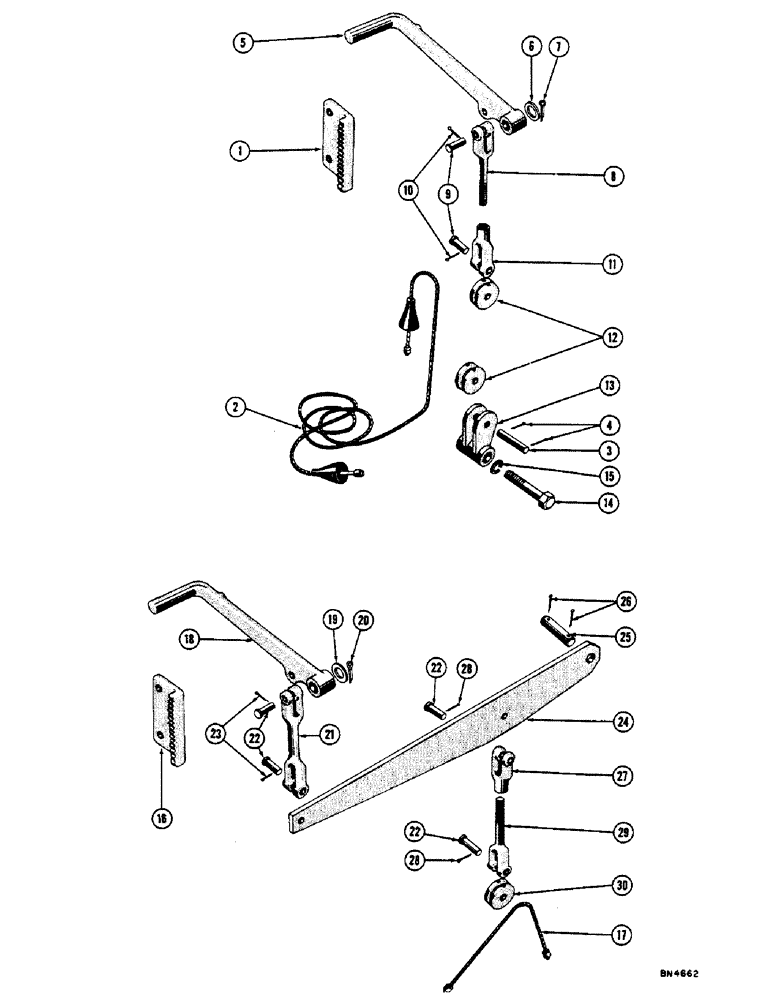

Запчасти Case 800 (112) - PARKING BRAKE (SHOE BRAKES) (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
70922
RACK - parking brake (Replacements mounted with rivets)
1шт.
2
70925
STRAND ASS'Y - parking brake
1шт.
3
72311
CAP COVER
PIN - yoke
1шт.
4
32-812
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" dia. x 5/8
2шт.
5
70926
LEVER - parking brake
1шт.
6
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
- plain
1шт.
7
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
1шт.
8
70927
YOKE - brake link
1шт.
10
432-610
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
2шт.
11
21-4
YOKE - adjustable
1шт.
12
70930
SHEAVE - 1" root dia.
2шт.
13
70920
BRACKET - idler sheave
1шт.
14
14-848
BOLT,Hex, 1/2" - 20 x 3", Gr 5
HHCS - 1/2 - 20 NF x 3 (70920 mt'g.)
1шт.
15
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
16
70922
RACK - parking brake (Replacements mounted with rivets), (disc brakes)
1шт.
17
R14728
STRAND ASS'Y - parking brake (disc brake)
1шт.
18
R13593
LEVER - parking brake, (disc brake)
1шт.
19
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
- plain, parking brake (disc brake)
1шт.
20
432-816
COTTER PIN,1/8" x 1"
parking brake (disc brake) 1/8" x 1"
1шт.
21
R13591
ROD - linkage, parking brake (disc brake)
1шт.
22
CLEVIS PIN,9.53mm OD x 26.92mm L
PIN, CLEVIS, , Yoke, Parking brake (Disc brake) 3/8" x 1 1/16"
4шт.
23
280250
COTTER PIN,3/32" OD x 3/4" L
PIN, SPLIT (COTTER), , Parking brake (disc brake) 3/32" x 3/4"
2шт.
24
R13616
LEVER - parking brake, (disc brake)
1шт.
25
R13612
PIN - pivot, parking brake (disc brake)
1шт.
26
432-816
COTTER PIN,1/8" x 1"
parking brake (disc brake) 1/8" x 1"
2шт.
27
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - adjustable, parking brake (disc brake)
1шт.
28
280250
COTTER PIN,3/32" OD x 3/4" L
PIN, SPLIT (COTTER), , Parking brake (disc brake) 3/32" x 3/4"
2шт.
29
R13873
YOKE - link, parking brake (disc brake)
1шт.
30
70930
SHEAVE - 1" root dia., parking brake (disc brake)
1шт.
Выбрано товаров: 30
