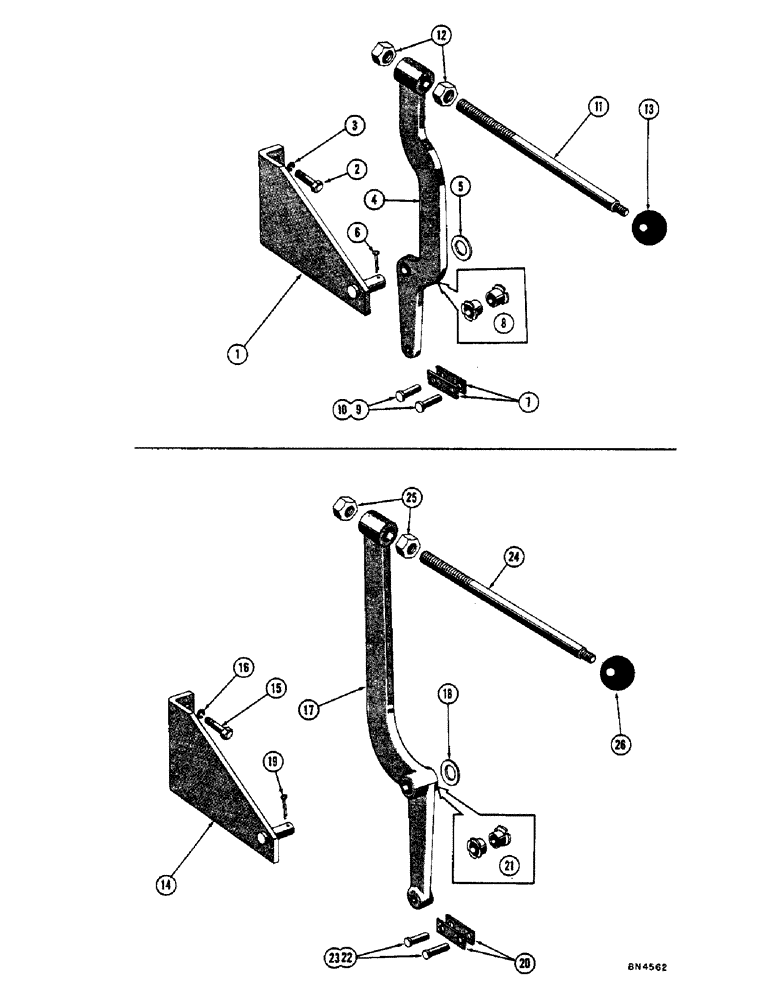

Запчасти Case 800 (110) - TWO SPEED SHIFT (SHOE BRAKES) (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
74959
SUPPORT ASS'Y - range lever
1шт.
2
414-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS - 3/8 - 24 NF x 1 (74959 mt'g.)
2шт.
3
492-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
4
NSS
NOT SOLD SEPARAT
LEVER - range shift (Type I - for use without 74898 bushings) (Order (1) 74912 lever & (2) 74898 bushings)
1шт.
74912
LEVER - range shift (Type II - for use with 74898 bushings)
1шт.
5
195-45
WASHER,3/4"
1шт.
6
432-1024
COTTER PIN,5/32" x 1 1/2"
5/32" x 1 1/2"
1шт.
7
73130
LINK - range lever
2шт.
8
74898
BUSHING - nylon (For use with 74912 lever only)
2шт.
10
280250
COTTER PIN,3/32" OD x 3/4" L
PIN, SPLIT (COTTER), 3/32" x 3/4"
2шт.
11
70155
ROD - range lever
1шт.
12
425-118
NUT,1/2"-20, G5
- reg. SF hex. (1/2 - 20 NF)
2шт.
13
70213
KNOB
- control lever
1шт.
14
74959
SUPPORT ASS'Y - range lever, two speed shift (disc brakes)
1шт.
15
414-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS - 3/8 - 24 NF x 1 (74949 mt'g.), two speed shift (disc brakes)
2шт.
16
492-11038
LOCK WASHER,3/8"
WASHER, LOCK, , Two speed shift (disc brakes) 3/8"
2шт.
17
R13573
LEVER - range shift, two speed shift (disc brakes)
1шт.
18
195-45
WASHER,3/4"
2 speed shift (disc brakes) 3/4"
1шт.
19
432-1024
COTTER PIN,5/32" x 1 1/2"
two speed shift (disc brakes) 5/32" x 1 1/2"
1шт.
20
73130
LINK - range lever, two speed shift (disc brakes)
2шт.
21
74898
BUSHING - nylon, two speed shift (disc brakes)
2шт.
22
CLEVIS PIN,9.53mm OD x 26.92mm L
PIN, CLEVIS, , Yoke, 2-speed shift (Disc brakes) 3/8" x 1 1/16"
2шт.
23
280250
COTTER PIN,3/32" OD x 3/4" L
PIN, SPLIT (COTTER), , Two speed shift (disc brakes) 3/32" x 3/4"
2шт.
24
R13592
ROD - range lever, two speed shift (disc brakes)
1шт.
25
425-118
NUT,1/2"-20, G5
- reg. SF hex. (1/2 - 20 NF), two speed shift (disc brakes)
2шт.
26
70213
KNOB
- control lever, two speed shift (disc brakes)
1шт.
Выбрано товаров: 27
