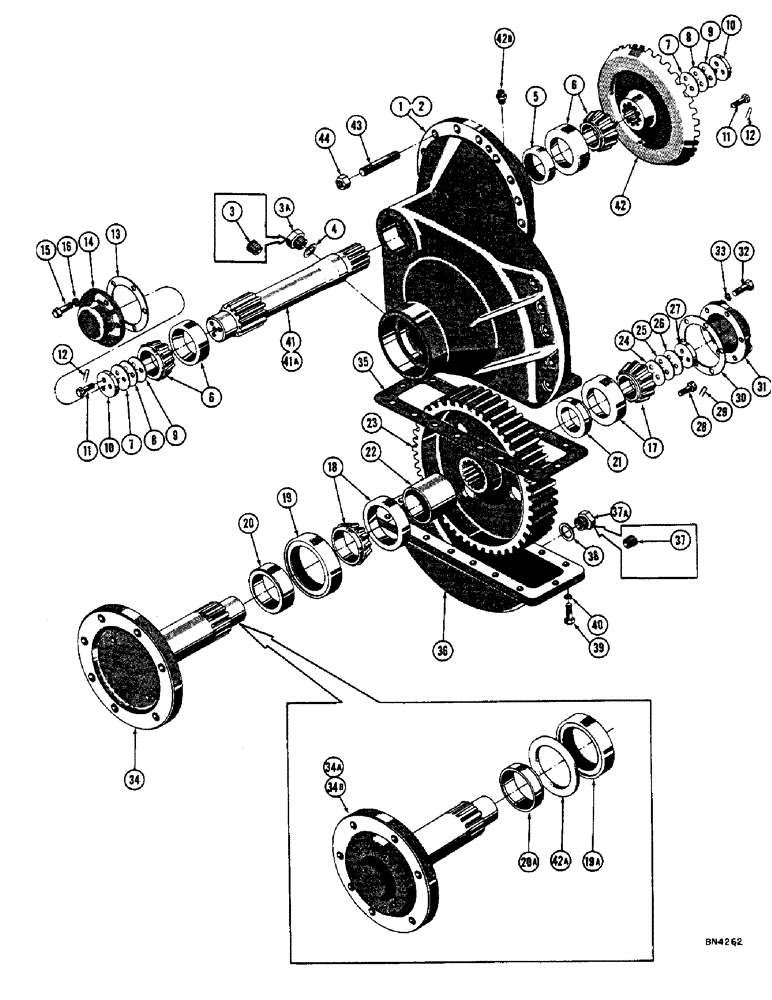

Запчасти Case 800 (102) - FINAL DRIVE (03) - TRANSMISSION

D11727

TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (54" gauge)

1шт.

D11728

TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (60" gauge)

1шт.

R4566

TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (54" gauge)

1шт.

R4567

TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (60" gauge)

1шт.

R23326

FINAL DRIVE ASS'Y - R.H. (54" gauge)

1шт.

R23330

FINAL DRIVE ASS'Y - R.H. (60" gauge)

1шт.

1

R11023

HOUSING - R.H. extension (54" gauge)

1шт.

R10989

X

HOUSING - R.H. extension (60" gauge) (Order (1) R12325 bracket (1) R14890 housing (2) 13-1024 hex. head cap screws, and (2) 92-1 lockwashers for service)

1шт.

R23325

FINAL DRIVE ASS'Y - L.H. (54" gauge)

1шт.

R23329

FINAL DRIVE ASS'Y - L.H. (60" gauge)

1шт.

2

R11022

HOUSING - L.H. extension (54" gauge)

1шт.

R10988

X

HOUSING - L.H. extension (60" gauge) (Order (1) R12325 bracket (1) R14891 housing (2) 13-1024 hex. head cap screws, and (2) 92-1 lockwashers for service)

1шт.

3

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- pipe, ctsk. head., 1/2" NPT (Type I)

1шт.

3a

R14777

PLUG

- check (Type II) (1" - 18 NS)

1шт.

4

A58613

SEALING WASHER

- special (Used with R14777 plug only)

1шт.

5

O9345AB

X

SEAL - oil

1шт.

6

ST979

CUP ASSY.

CUP - roller bearing

2шт.

40440

BEARING

CONE - roller bearing

2шт.

7

R21741

SHIM,.005" Thk

1шт.

8

R21742

SHIM,.007" Thk

1шт.

9

R21743

SHIM,.020" Thk

1шт.

10

74541

PLATE - lock (Type I - 1/2" holes)

2шт.

1997099C1

PLATE

- lock (Type II - 9/16" holes)

2шт.

11

46947

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled) (74541 mt'g.)

6шт.

114-514

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

HHCS - 9/16 - 18 NF x 1-1/4 (Drilled) (R19889 mt'g.)

6шт.

12

391-825

ELECTRICAL WIRE

WIRE - tie

1шт.

13

A50340

GASKET

- bearing cap

1шт.

14

70278

CAP - bearing

1шт.

15

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (70278 mt'g.)

6шт.

16

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

17

13367DC

ROLLER BEARING

CONE - roller bearing

1шт.

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

CUP - roller bearing

1шт.

18

49365H

BEARING, CUP

CUP - roller bearing

1шт.

64373H

ROLLER BEARING,82.56mm ID x 30.26mm W

CONE - roller bearing

1шт.

19

R4640

SEAL

SEAL - oil (Used with R16702 sleeve only)

1шт.

19a

R22729

SEAL

- oil (Used with R22728 sleeve only)

1шт.

20

R16702

X

SLEEVE - output shaft (Type I)

1шт.

20a

R22728

SLEEVE

- output shaft (Type II)

1шт.

21

A50279

BUSHING

SPACER - drive gear

1шт.

22

72187

SPACER

- drive gear

1шт.

23

71578

GEAR - final drive

1шт.

24

R21741

SHIM,.005" Thk

1шт.

25

R21742

SHIM,.007" Thk

1шт.

26

R21743

SHIM,.020" Thk

1шт.

27

74541

PLATE - lock (Type I - 1/2" holes)

1шт.

1997099C1

PLATE

- lock (Type II - 9/16" holes)

1шт.

28

46947

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled) (74541 mt'g.)

3шт.

114-514

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

HHCS - 9/16 - 18 NF x 1-1/4 (Drilled) (R19889 mt'g.)

3шт.

29

391-825

ELECTRICAL WIRE

WIRE - tie

1шт.

30

A50339

GASKET

- bearing cap

1шт.

31

70280

FITTING

CAP - bearing

1шт.

32

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (70280 mt'g.)

6шт.

33

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

34

NSS

NOT SOLD SEPARAT

SHAFT - output (Type I) (Order R16696 shaft and R16702 sleeve for service)

1шт.

34a

R16696

SHAFT - output (Type II) (Order R4641 for service)

1шт.

R4641

KIT

- output shaft replacement (Not illustrated)

1шт.

R19891

SHAFT - output

1шт.

114-514

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

BOLT - special hex.

3шт.

1997099C1

PLATE

- lock

1шт.

R21741

SHIM,.005" Thk

2шт.

R21742

SHIM,.007" Thk

2шт.

R21743

SHIM,.020" Thk

5шт.

34b

R19891

SHAFT - output (Type III)

1шт.

35

70826

GASKET

- extension housing cover

1шт.

36

70274

COVER - extension housing

1шт.

37

217-442

PLUG,3/4" - 14

- pipe, ctsk. head, 3/4" NPT (Type I)

1шт.

37a

R14777

PLUG

- drain (Type II)

1шт.

38

72293

GASKET

- drain plug (Used with R14777 plug only)

1шт.

39

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd (70274 mt'g.)

16шт.

40

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

41

70757

X

PINION AND SHAFT - (Type I - 1/2" holes) (54" gauge)

1шт.

73111

ENGINE FLYWHEEL

PINION AND SHAFT - (Type I - 1/2" holes) (60" gauge) (Order R4644 for service)

1шт.

R4644

SHAFT

KIT - pinion shaft replacement (Not illustrated)

1шт.

A50302

SHAFT

- pinion

1шт.

114-514

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

BOLT - special hex.

6шт.

1997099C1

PLATE

- lock

2шт.

R21741

SHIM,.005" Thk

4шт.

R21742

SHIM,.007" Thk

4шт.

R21743

SHIM,.020" Thk

9шт.

41a

R23323

X

PINION AND SHAFT - (Type II - 9/16" holes) (54" gauge)

1шт.

A50302

SHAFT

PINION AND SHAFT - (Type II - 9/16" holes) (60" gauge)

1шт.

42

70758

GEAR - bevel

1шт.

42a

R22730

WASHER

- felt (Used with R22729 seal only)

1шт.

42b

R15538

VALVE

INLET - air (Used with R22729 seal only)

1шт.

43

70830

STUD - 5/8 - 18 NF x 2-9/16 (Final drive mt'g.)

32шт.

44

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

32шт.
