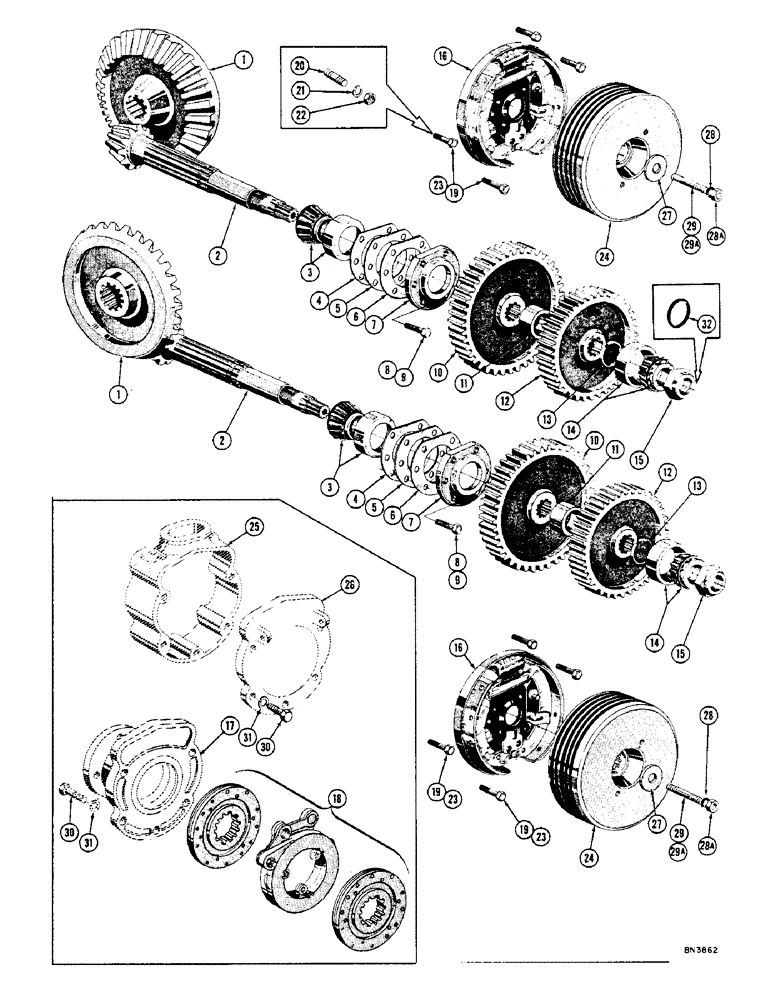

Запчасти Case 800 (094) - BRAKE SHAFT PARTS (03) - TRANSMISSION

D11727

TRANSMISSION AND FINAL DRIVE ASSY - (With shoe brakes) (54" gauge)

1шт.

D11728

TRANSMISSION AND FINAL DRIVE ASSY - (With shoe brakes) (60" gauge)

1шт.

R4566

TRANSMISSION AND FINAL DRIVE ASSY - (With disc brakes) (54" gauge)

1шт.

R4567

TRANSMISSION AND FINAL DRIVE ASSY - (With disc brakes) (60" gauge)

1шт.

1

70758

SPARE PART GEAR - bevel

2шт.

2

70759

SPARE PART PINION & SHAFT

2шт.

3

131481A1

HARNESS

Roller

2шт.

84986C91

BEARING

CONE - roller

2шт.

4

71396

SHIM

SPARE PART Locking plate (.010")

1шт.

5

71397

SHIM

Locking plate (.005")

1шт.

6

NLS

NO LONGER SERVICED

Locking plate (.003")

1шт.

7

70839

PLATE

Locking

2шт.

8

46954

CYLINDER END CAP,Hex, 3/8" - 24 x 1", Gr 5, Drilled Hd

HHCS - 3/8 - 24 NF x 1 (Drilled head) (70839 mt'g.)

12шт.

9

391-825

ELECTRICAL WIRE

WIRE Tie

1шт.

10

70295

Driven, low

2шт.

11

70833

SPARE PART

2шт.

12

70296

SPARE PART GEAR - driven, high

2шт.

13

49478

TABLE

#196, Ext

2шт.

14

VT2100

X

CUP - roller bearing

2шт.

462172R91

ROLLER BEARING

Roller bearing

2шт.

15

70828

LOCK NUT

Locking

2шт.

16

R13779

BRAKE ASSY - (Type I - shoe type brakes) (See figure 98 for breakdown)

2шт.

17

REF

INSTRUCTION

MOUNT - brake (See figure 88, ref. #42) (For disc type brakes only)

2шт.

18

R13983

X

BRAKE ASSY - (Type II - disc type brakes) (See figure 100 for breakdown)

2шт.

19

46974

HHCS - 1/2 - 13 NC x 1 (Drilled head) (R13779 mt'g.) (Type I)

8шт.

20

R11379

SPARE PART Special (R13779 mt'g.) (Type II)

8шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

Used with R11379 stud only

8шт.

22

425-118

NUT,1/2"-20, G5

Regular SF hex (Used with R11379 stud only)

8шт.

23

391-825

ELECTRICAL WIRE

WIRE Tie (Used with 46974 or R11379)

1шт.

24

R11483

SPARE PART Brake (For shoe type brakes only)

2шт.

25

REF

INSTRUCTION

HOUSING - brake (For disc brakes only) (See figure 100, ref. #13)

2шт.

26

REF

INSTRUCTION

COVER - brake (For disc type brakes only) (See figure 100, ref. #14)

2шт.

27

32506

SPARE PART Brake drum (For shoe type brakes only)

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

Used with 13-816 screw only

2шт.

28a

231-1408

LOCK NUT,1/2"-13, GB

(Used with 72824 stud only)

2шт.

29

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(R11483 mt'g.) (Type I)

2шт.

29a

G102110

BOLT

1/2"-13 NC x 1-7/8 (R11483 mt'g.) (Type II)

2шт.

30

REF

INSTRUCTION

HHCS - 1/2 - 13 NC x 1-1/4 (For disc type brakes only)

20шт.

31

REF

INSTRUCTION

WASHER - med. sec. lock (For disc type brakes only) (See figure 100, ref. #16)

20шт.

32

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Seal

2шт.
