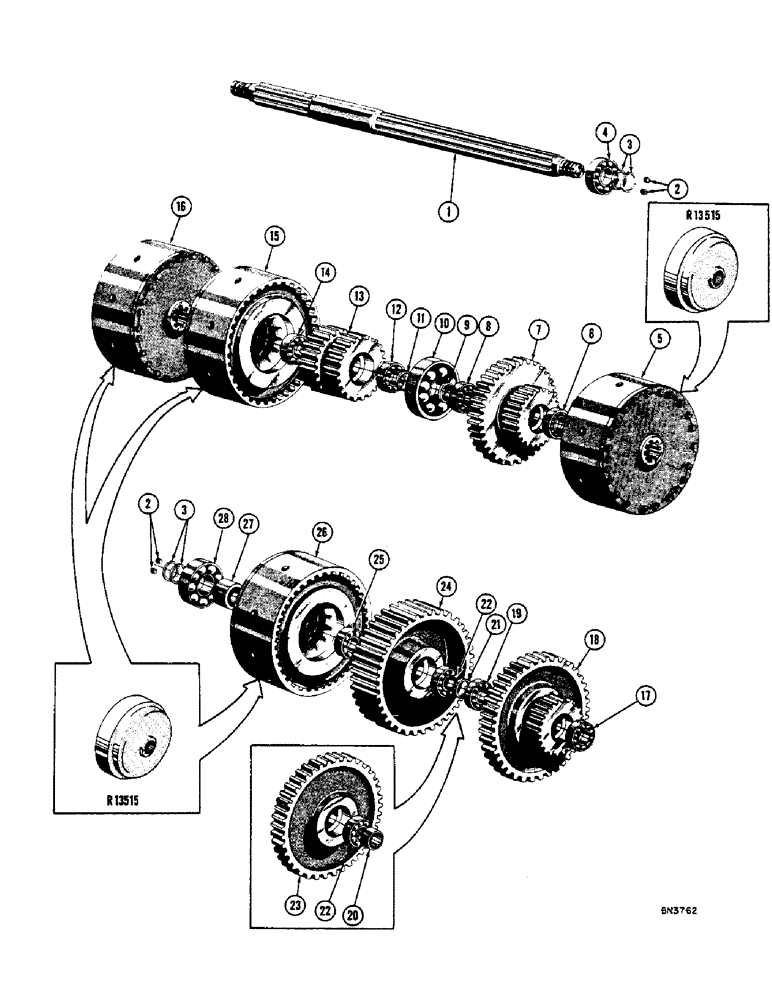

Запчасти Case 800 (092) - CLUTCH SHAFT PARTS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
D11727
TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (54" gauge)
1шт.
D11728
TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (60" gauge)
1шт.
R4566
TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (54" gauge)
1шт.
R4567
TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (60" gauge)
1шт.
1
71938
SHAFT
ASS'Y - clutch
2шт.
2
221-850
PLUG,Hex Soc, 1/16"-27
- Allen head pipe, 1/16" NPT
4шт.
3
1341408C1
SEALING RING
RING - piston
8шт.
4
O4509TF
X
BEARING - ball
2шт.
5
70847
CLUTCH ASS'Y - high, hydraulic (See figure 96 for breakdown) (Order R13515 for service) (See figure 96 for breakdown)
2шт.
6
G10418
BEARING, BALL
BEARING - ball
2шт.
7
70294
COVER
GEAR - clutch, high
2шт.
8
G10418
BEARING, BALL
BEARING - ball
2шт.
9
A50034
SPACER
2шт.
10
ST220
BALL BEARING,39.83mm ID x 110mm OD x 27mm W
BEARING - ball
2шт.
11
A50034
SPACER
2шт.
12
G10418
BEARING, BALL
BEARING - ball
2шт.
13
70298
GEAR - clutch, low
2шт.
14
G10418
BEARING, BALL
BEARING - ball
2шт.
15
70847
CLUTCH ASS'Y - low, hydraulic (See figure 96 for breakdown) (Order R13515 for service) (See figure 96 for breakdown)
2шт.
16
70847
CLUTCH ASS'Y - forward, hydraulic (See figure 96 for breakdown) (Order R13515 for service) (See figure 96 for breakdown)
2шт.
17
G10418
BEARING, BALL
BEARING - ball
2шт.
18
70299
GEAR - clutch, forward
2шт.
19
T25088
BALL BEARING,55 mm ID x 90 mm OD x 18 mm
BEARING - ball
2шт.
20
A50279
BUSHING
SPACER
1шт.
21
70829
SPACER
1шт.
22
T25088
BALL BEARING,55 mm ID x 90 mm OD x 18 mm
BEARING - ball
2шт.
23
70299
GEAR - clutch, reverse (R.H. shaft)
1шт.
24
70297
SHAFT
GEAR - clutch, reverse (L.H. shaft)
1шт.
25
G10418
BEARING, BALL
BEARING - ball
2шт.
26
70847
CLUTCH ASS'Y - reverse, hydraulic (See figure 96 for breakdown) (Order R13515 for service) (See figure 96 for breakdown)
2шт.
Выбрано товаров: 32
