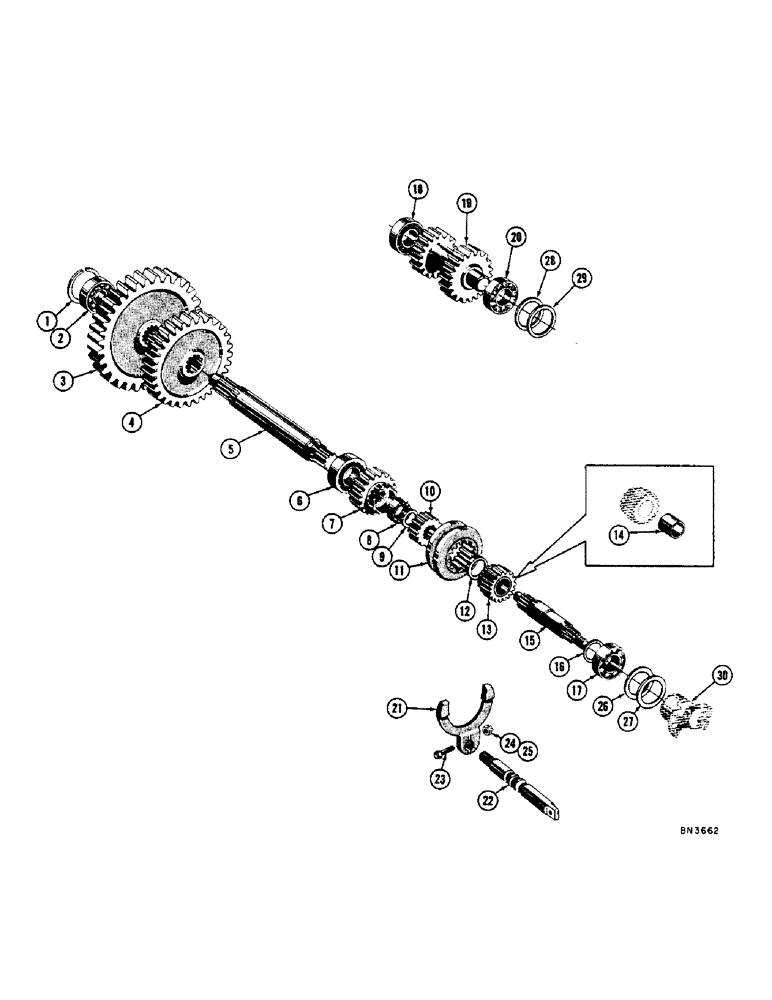

Запчасти Case 800 (090) - MAIN DRIVE AND TWO SPEED SHIFT PARTS (03) - TRANSMISSION

D11727

TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (54" gauge)

1шт.

D11728

TRANSMISSION AND FINAL DRIVE ASS'Y - (With shoe brakes) (60" gauge)

1шт.

R4566

TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (54" gauge)

1шт.

R4567

TRANSMISSION AND FINAL DRIVE ASS'Y - (With disc brakes) (60" gauge)

1шт.

1

49477

RING, SNAP

RING SNAP 3.156", Int, #315

1шт.

2

175192A1

BRACKET

BEARING - ball

1шт.

3

70753

GEAR

Reverse

1шт.

4

70752

SPARE PART GEAR - forward

1шт.

5

70841

KIT

Drive

1шт.

6

69571R91

TAPERED BEARING

Roller

1шт.

7

70754

SPARE PART Driven, low

1шт.

8

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

Ball

1шт.

9

70835

SHAFT

Input shaft

1шт.

10

74278

SPARE PART HUB - clutch inner & high

1шт.

11

A50479

COLLAR

Shifting

1шт.

12

70836

PISTON

Shifting collar

1шт.

13

70292

SPARE PART

GEAR & BUSHING ASSY - driven, low

1шт.

14

70815

GASKET

BUSHING

1шт.

15

70840

SHAFT - input

1шт.

16

70837

SPARE PART Input

1шт.

17

40022

WASHER

BEARING - ball

1шт.

18

40265

ROLLER BEARING

1шт.

19

70755

SPARE PART GEAR - counter

1шт.

20

175192A1

BRACKET

BEARING - ball

1шт.

21

70751

FORK - shifter

1шт.

22

71254

SPARE PART SHAFT - shifter

1шт.

23

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

(71254 mt'g.)

1шт.

24

25-236

SLOTTED NUT,3/8"-24, G5, Thk

Castle

1шт.

25

132-28

COTTER PIN,3/32" x 1"

1шт.

26

73360

ADAPTER

SPARE PART SHIM - (.010")

1шт.

27

73361

HANDLE

SPARE PART SHIM - (.020")

1шт.

28

40592

SHIM

SPARE PART SHIM, (.050")

1шт.

29

40593

SPARE PART (.010")

1шт.

30

REF

INSTRUCTION

YOKE - end

1шт.
