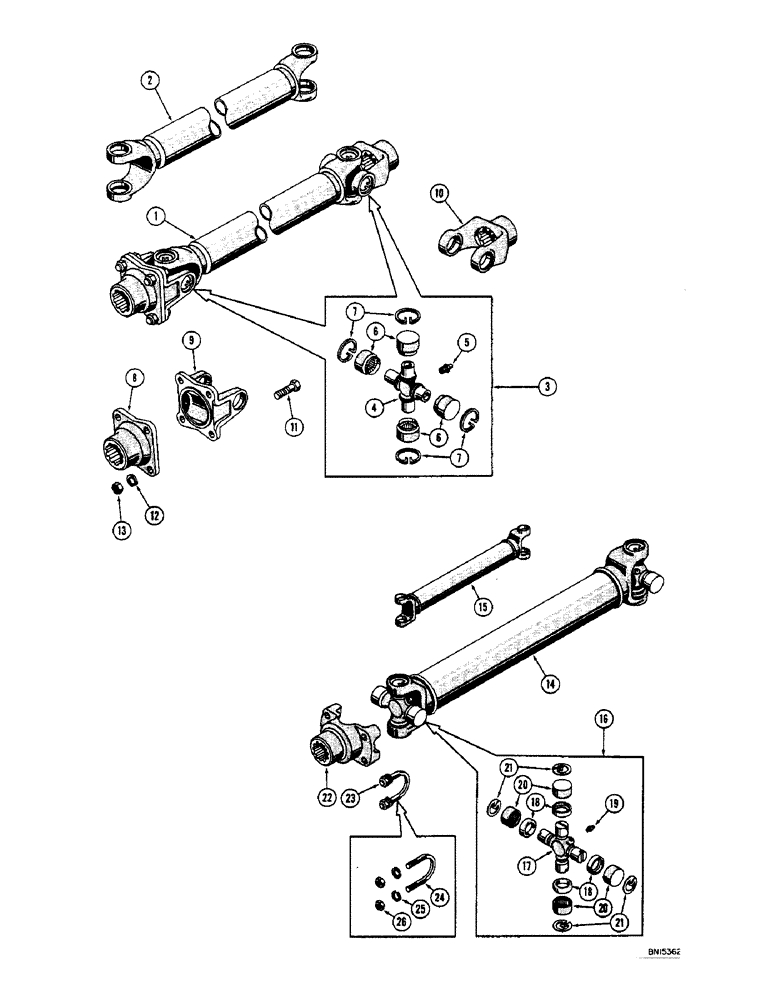

Запчасти Case 800 (086) - DRIVESHAFT AND UNIVERSAL JOINTS (TYPE II "BLOOD BROS.") (03) - TRANSMISSION

1

R12661

SHAFT ASS'Y - universal

1шт.

2

R14747

TUBE & YOKE ASS'Y - universal

1шт.

3

845198

KIT

JOURNAL & BEARING KIT - universal

2шт.

4

NSS

NOT SOLD SEPARAT

CROSS - universal

1шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degree grease

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING ASS'Y - universal

4шт.

7

R14757

RING - snap

4шт.

8

R14745

FLANGE - companion

1шт.

9

R14746

YOKE - flange (Torque converter end)

1шт.

10

R14748

YOKE - plain (Transmission end)

1шт.

11

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

HHCS - 7/16 - 20 NF x 1-1/4 (R14745 mt'g.)

8шт.

12

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

50456

NUT,7/16"-20, G5

NUT, 7/16"-20, G5

4шт.

14

R14332

SHAFT ASS'Y - universal, l joints (type III "spicer")

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - universal, drive joints (type III "spicer")

1шт.

16

R2713

BEARING ASSY

JOURNAL & BEARING KIT - drive shaft & universal joints (type III "spicer")

2шт.

R13990

CROSS - drive shaft & universal joints (type III "spicer")

1шт.

17

NSS

NOT SOLD SEPARAT

CROSS - drive shaft & universal joints (type III "spicer")

1шт.

18

R13994

GASKET, drive shaft & universal joints (type III "spicer")

4шт.

19

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degree grease, drive shaft & universal joints (type III "spicer")

1шт.

20

R13991

BEARING ASS'Y - drive shaft & universal joints (type III "spicer")

4шт.

21

R13992

RING, SNAP

RING - snap, drive shaft & universal joints (type III "spicer")

4шт.

22

R17993

YOKE - drive shaft & universal joints (type III "spicer")

2шт.

23

R13345

BOLT

"U" BOLT ASS'Y - drive shaft & universal joints (type III "spicer")

4шт.

24

NSS

NOT SOLD SEPARAT

"U" BOLT - drive shaft & universal joints (type III "spicer")

1шт.

25

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Drive shaft & universal joints (Type III "spicer") 3/8"

2шт.

26

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF), Drive shaft & universal joints (Type III "spicer")

2шт.
