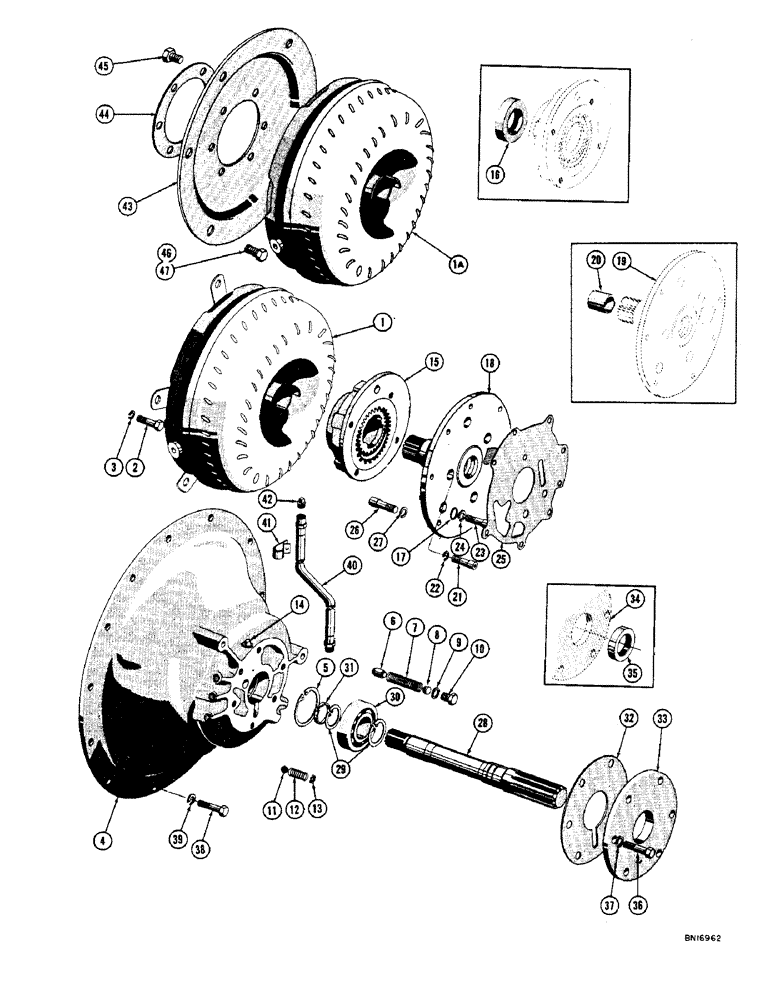

Запчасти Case 800 (082) - TORQUE CONVERTER (03) - TRANSMISSION

1

R16504

BISCUIT - converter (For use without flex plate drive)

1шт.

1a

R17441

BISCUIT - converter (For use with flex plate drive)

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 - 18 NC x 3/4

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

R14082

HOUSING & PUMP ASS'Y - converter

1шт.

4

72742

HOUSING - converter

1шт.

5

31241

RING - snap

1шт.

6

31222

VALVE

- pressure relief

1шт.

7

31221

SPRING

- pressure relief valve

1шт.

8

71752

PISTON

RETAINER - relief valve spring

1шт.

9

31233

PIN

WASHER - relief valve plug

1шт.

10

31234

PIN

PLUG - pressure relief valve

1шт.

11

VT4913

X

BALL - cooler by-pass

1шт.

12

31220

VALVE SPRING

SPRING - cooler by-pass

1шт.

13

31236

RETAINER - spring

1шт.

14

71753

PISTON

PLUG - pipe

1шт.

R16493

PUMP & COLLECTOR RING ASS'Y - converter

1шт.

15

R16498

HOUSING

PUMP ASS'Y - converter

1шт.

16

40619

- oil

1шт.

17

O8569AB

X

SEAL - "O" ring

1шт.

18

R16494

TURBINE

HUB STATOR REACTION & BUSHING ASS'Y

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - stator reaction

1шт.

20

31216

BUSHING

1шт.

21

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head, 1/4 - 20 NC x 1 (R16498 mt'g.)

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- socket head, 5/16 - 18 NC x 3/4 (R16498 mt'g.)

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

71766

GASKET

- pump & collector ring ass'y

1шт.

26

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - socket head, 5/16 - 18 NC x 1 (R16493 mt'g.)

8шт.

27

92-5

LOCK WASHER,5/16"

8шт.

28

R16466

SHAFT

- turbine output

1шт.

29

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

30

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ASS'Y - ball

1шт.

31

31218

O-RING

- piston

1шт.

32

31189

GASKET

- converter housing to bearing retainer

1шт.

33

33183

RETAINER ASS'Y - rear bearing

1шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - rear bearing

1шт.

35

126677A1

KIT

SEAL - oil

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(33183 mt'g.) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

37

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(R14082 mt'g.) Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(R14082 mt'g.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

39

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

40

19275

HOSE ASS'Y - pressure check

1шт.

41

49774

CLAMP

- hose (19275 mt'g.)

1шт.

42

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- pipe, extended square head (1/4" NPT)

1шт.

R17453

KIT

- converter drive & reforcement plate

1шт.

43

R17453

KIT

PLATE - converter drive (Flex plate drive)

1шт.

44

R17457

PLATE - reinforcing (Used with R17441 biscuit only)

1шт.

45

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- plate, 3/8 - 24 NF x 1/2 (R17457 mt'g.)

6шт.

46

A14512

WASHER

- drive plate (R17459 mt'g.)

6шт.

47

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

- place, 5/16 - 18 NC x 5/8 (R17459 mt'g.)

6шт.
