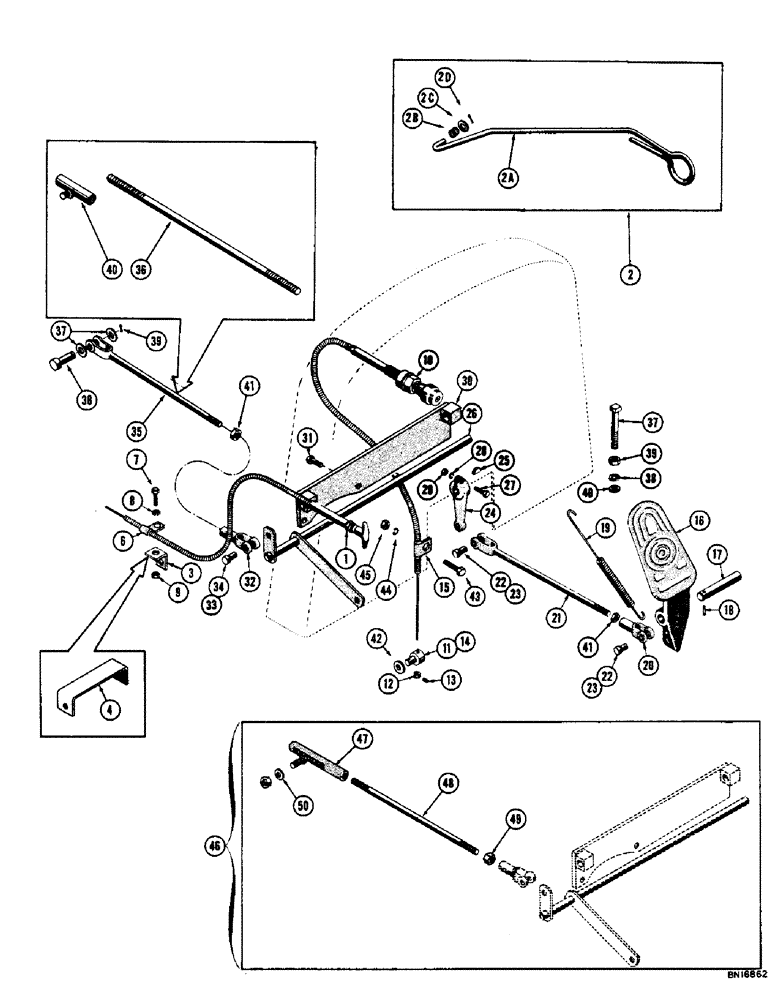

Запчасти Case 800 (080) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

R13595

CONTROL ASS'Y - engine shut-off (Type I - order ref. #2 for service)

1шт.

2

R3816

SHUT-OFF VALVE

KIT - fuel shut off (Rod type)

1шт.

2a

R3816

SHUT-OFF VALVE

ROD - fuel shut off

1шт.

2b

31220

VALVE SPRING

SPRING

1шт.

2c

95-21031

WASHER,1/4"

- plain

1шт.

2d

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

3

71324

NUT

CLIP - shut-off support

1шт.

4

71952

ROLL PIN

BRACKET - shut off support

1шт.

5

RESERVED

1шт.

6

80049853

YOKE

- tube

1шт.

7

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

(49853 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

10

71092

THROTTLE ASS'Y - hand

1шт.

11

35313

PIVOT - hand throttle

1шт.

12

34823

CHAIN LINK

STOP - pivot

1шт.

13

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, #10 - 24 NC x 1/4 (34823 mt'g.)

1шт.

14

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- (71092 mt'g.)

1шт.

16

34828

PEDAL - accelerator

1шт.

17

71044

LOCK

SHAFT - pedal pivot

1шт.

18

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, (71044 mt'g.) 5/32" x 1", Type E

1шт.

19

R33370

SPRING

- accelerator pedal

1шт.

20

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Yoke 5/16"-24

1шт.

21

R17364

SHAFT

ROD - foot pedal

1шт.

22

763268

CLEVIS PIN

PIN - yoke

2шт.

23

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

24

71394

LEVER - accelerator linkage

1шт.

25

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(71394 mtg.) #3, 1/8" x 1/2"

1шт.

26

71002

SHAFT ASS'Y - throttle linkage

1шт.

27

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4 (71394 mt'g.)

1шт.

28

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

1шт.

30

70999

BRACKET ASS'Y - throttle linkage

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(70999 mt'g.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Yoke 5/16"-24

1шт.

33

763268

CLEVIS PIN

PIN - yoke

1шт.

34

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

35

R10939

ROD - throttle (Order kit #R2853 ref. #46 for service)

1шт.

36

R14509

ROD - throttle

1шт.

37

95-11034

WASHER,1/4"

- plain

2шт.

38

763268

CLEVIS PIN

PIN - yoke

1шт.

39

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

40

R14508

BALL JOINT - special

1шт.

41

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

2шт.

42

195-18

WASHER,1/4"

- plain

1шт.

43

353517X1

SCREW

HHCS - 5/16 - 24 NF x 3/4 (49852 mt'g.)

1шт.

44

92-5

LOCK WASHER,5/16"

1шт.

45

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

1шт.

46

R2853

KIT - throttle control rod

1шт.

47

R14508

BALL JOINT - special

1шт.

48

R14509

ROD - throttle

1шт.

49

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

2шт.

50

92-5

LOCK WASHER,5/16"

1шт.
