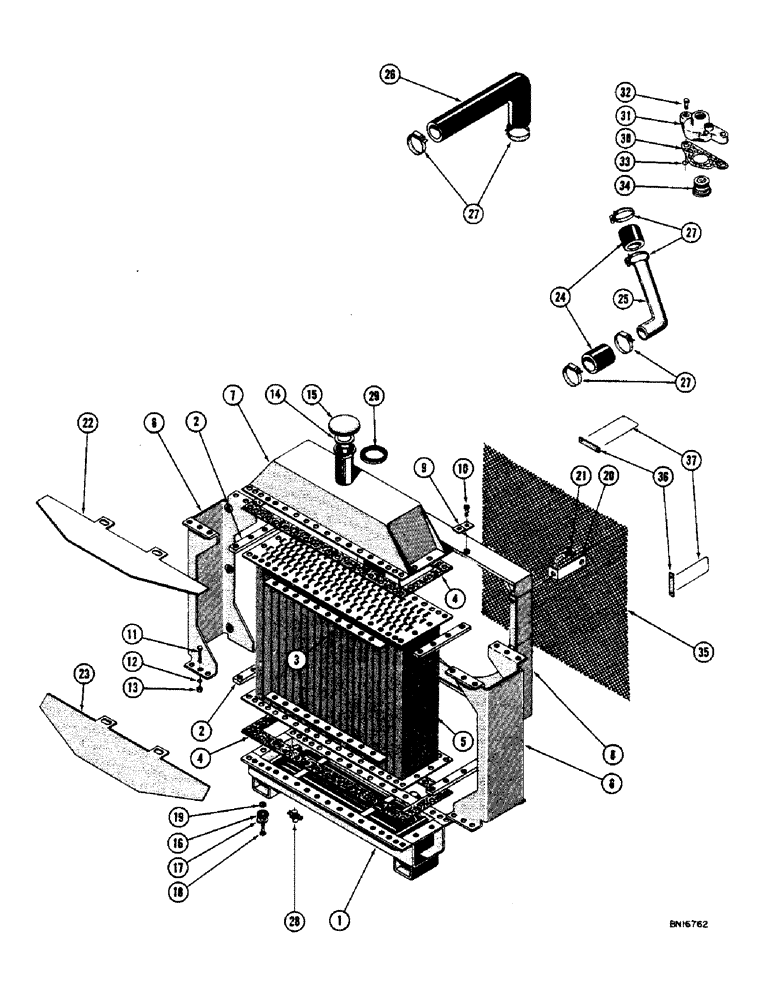

Запчасти Case 800 (052) - RADIATOR, THERMOSTAT, AND HOSES (01) - ENGINE
№
Артикул
Название
Примечание
Количество
R2428
RADIATOR
ASS'Y - (Perfex Corp.)
1шт.
1
R14567
TANK & COOLER ASS'Y - radiator bottom
1шт.
2
72772
WASHER - core, short
4шт.
3
72771
CUP
WASHER - core, long
4шт.
4
N6649
STRIP-GASKET
- core
4шт.
5
72770
BALL BEARING
CORE - radiator
1шт.
6
72766
SIDE MEMBER - radiator
2шт.
7
72763
TANK ASS'Y - top
1шт.
8
72767
SCREW
SHROUD - fan
1шт.
9
72768
TUBE
CLIP - fan shroud
4шт.
10
73605
X
SCREW - shroud
10шт.
11
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- 5/16 - 18 NC x 3/4
80шт.
12
92-5
LOCK WASHER,5/16"
80шт.
13
9635082
NUT,5/16" - 18, Gr 5
- regular SF hex. (5/16 - 18 NC)
64шт.
14
72764
WASHER
- radiator cap
1шт.
15
A21389
CAP
- radiator
1шт.
16
70198
WASHER
- vibration (Radiator mt'g.)
2шт.
17
51200247
WASHER
- special (Radiator mt'g.), Pickup Cam
1шт.
18
114-410
BOLT,Hex, 1/2" - 20 x 2", Gr 5
(Radiator mt'g.) Hex, 1/2"-20 x 2", G5
2шт.
19
230-4618
LOCK NUT,1/2"-20, GA
NUT - lock (1/2 x 20 NF) (Radiator mt'g.)
2шт.
20
70598
ANGLE - radiator support
2шт.
21
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
(Radiator mt'g.) Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
22
70261
BAFFLE ASS'Y - radiator top
1шт.
23
73353
MAGNETO
BAFFLE ASS'Y - radiator bottom
1шт.
24
70136
X
HOSE - radiator
2шт.
25
70131
TUBE - outlet
1шт.
26
70628
HOSE
- radiator inlet
1шт.
27
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
6шт.
28
217-92
COCK
- radiator drain
1шт.
29
R14780
GROMMET
- radiator filler neck
1шт.
30
10673
FITTING
GASKET - cylinder water outlet
1шт.
31
71835
INSERT
OUTLET - cylinder water
1шт.
32
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
(71835 mt'g.) Hex, 3/8"-16 x 1 3/4", G5
3шт.
33
492-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
34
10275
THERMOSTAT
1шт.
R3555
SCREEN INSTALLATION - anti sandblast (Optional equipment)
1шт.
35
R22136
SCREEN - radiator guard
1шт.
36
R14077
STRAP
- radiator guard
8шт.
37
R14078
ELECTRICAL WIRE
WIRE
4шт.
Выбрано товаров: 39
