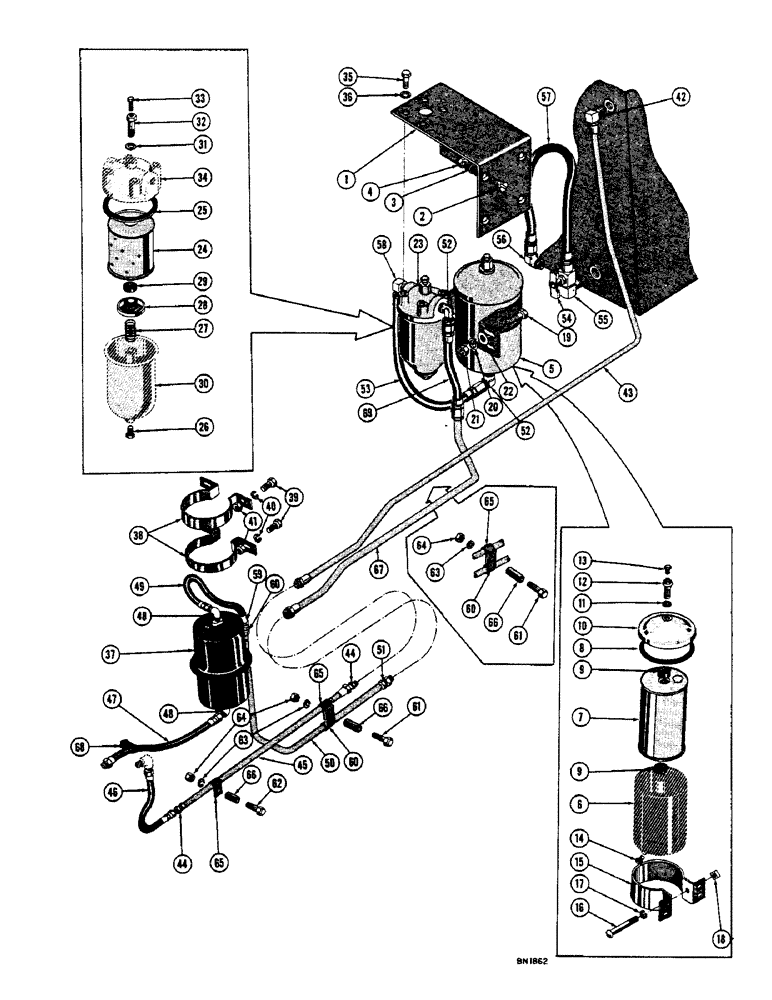

Запчасти Case 800 (048) - FUEL LINES AND FILTERS (01) - ENGINE

1

74128

BRACKET - filter mt'g.

1шт.

2

74-514

FHMS - 5/16 - 24 NF x 7/8 (74128 mt'g.)

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

4шт.

5

71243

FILTER

ASS'Y - fuel primary

1шт.

6

NSS

NOT SOLD SEPARAT

BODY ASS'Y - primary fuel filter

1шт.

7

NLS

NO LONGER SERVICED

CARTRIDGE - fuel filter

1шт.

8

73500

GASKET - filter cover

1шт.

9

73497

PLATE

GASKET - filter cartridge

2шт.

10

34850

CYLINDER

COVER ASS'Y - fuel filter

1шт.

11

10054

COLLAR

GASKET - cover screw

1шт.

12

73501

SCREW

- filter cover

1шт.

13

73502

BOLT

VENT ASS'Y - filter air

1шт.

14

G46015

PLUG - filter drain

1шт.

15

73499

SPRING

STRAP - filter mounting

1шт.

16

73505

BLOCK

BOLT - mounting strap

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER - lock, mounting strap

1шт.

18

73503

NUT - hex., mt'g. strap

1шт.

19

353517X1

SCREW

HHCS - 5/16 - 24 NF x 3/4 (71243 mt'g.)

4шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

4шт.

22

95-11034

WASHER,1/4"

- plain

4шт.

23

G11067

FILTER

ASS'Y - secondary

1шт.

24

G45006

FILTER, ELEMENT

CARTRIDGE - secondary filter

1шт.

25

G46005

GASKET

- head

1шт.

26

G46015

PLUG - filter drain

1шт.

27

G46020

SPRING - filter

1шт.

28

G46018

PLATE - sealing

1шт.

29

G46019

GROMMET - sealing plate

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

31

G46017

GASKET - capscrew

1шт.

32

G46088

SCREW - cap

1шт.

33

G46021

PLUG

- bleeder

1шт.

34

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(G11067 mt'g.) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

36

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

37

O9985AB1

FILTER ASS'Y - final stage fuel

1шт.

38

30134

BRACKET ASS'Y - final fuel filter

2шт.

39

414-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

HHCS - 5/16 - 24 NF x 7/8 (O9985AB1 mt'g.)

4шт.

40

92-5

LOCK WASHER,5/16"

4шт.

41

425-115

NUT,5/16"-24, G5

- reg. SF hex. (5/16 - 24 NF)

4шт.

42

31-250

ELBOW

- 90 degree male, 1/4 SAE - 1/8 NPT

1шт.

43

74718

TUBE ASS'Y - fuel line

1шт.

44

222-712

FITTING

UNION - male, 1/4 SAE

2шт.

45

71038

TUBE ASS'Y - fuel line

1шт.

46

D20272

HOSE

ASS'Y - fuel line

1шт.

47

74122

HOSE

ASS'Y - fuel line

1шт.

48

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NPT

2шт.

49

74131

HOSE ASS'Y - fuel line

1шт.

50

74187

TUBE ASS'Y - fuel line

1шт.

51

222-714

FITTING

UNION - male, 3/8 SAE

1шт.

52

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NPT

2шт.

53

74131

HOSE ASS'Y - fuel line

1шт.

54

217-94

SHUT-OFF VALVE

VALVE - shut-off

1шт.

55

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

56

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NPT

1шт.

57

74131

HOSE ASS'Y - fuel line

1шт.

58

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree street, 1/4 NPT

1шт.

59

222-746

COUPLING - female, 3/8 SAE - 1/4 NPT

1шт.

60

700707010

CLAMP

- tube

4шт.

61

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5 (49845 mt'g.)

3шт.

62

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2

1шт.

63

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

64

425-116

NUT,3/8" - 24, Gr 5

- reg. SF hex. (3/8 - 24 NF)

4шт.

65

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

4шт.

66

71029

SPACER - clamp

4шт.

67

R14833

TUBE ASS'Y - fuel line

1шт.

68

49768

CLIP

- hose

1шт.

69

R13572

HOSE ASS'Y - fuel line

1шт.
