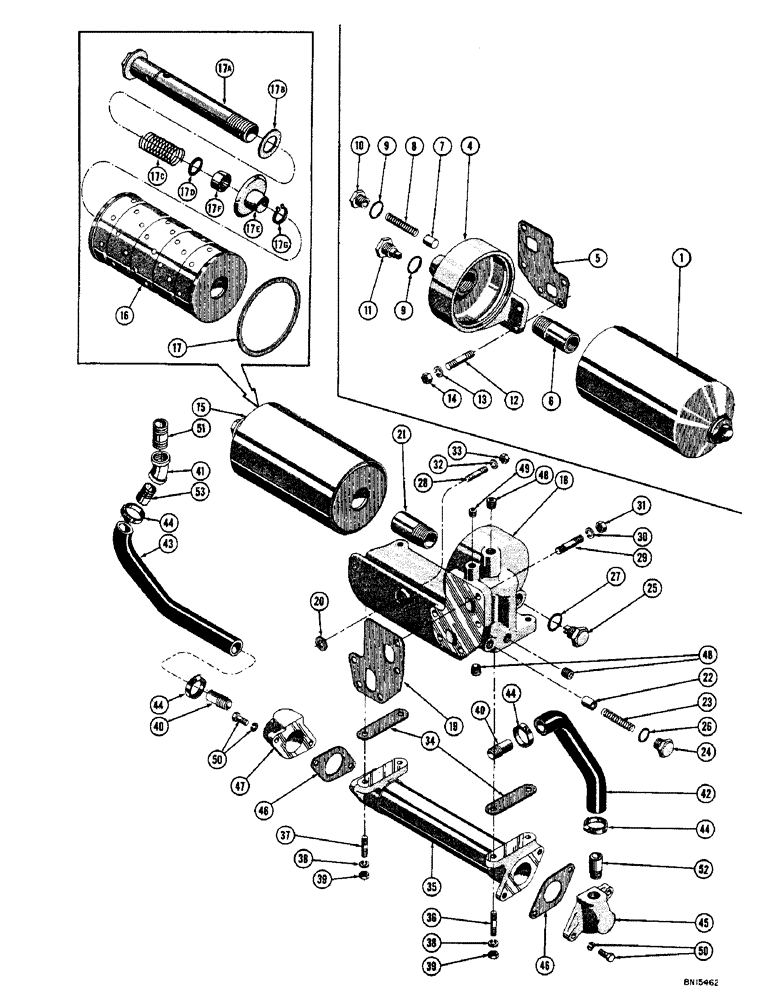

Запчасти Case 800 (046) - ENGINE LUBE OIL SYSTEM (TYPE II AND III) HORIZONTAL, ENGINE LUBE OIL SYSTEM (TYPE II) NO OIL COOLER (01) - ENGINE

1

R11707

FILTER ASS'Y - lube oil (See ref. #15 for breakdown)

1шт.

2

RESERVED

1шт.

3

RESERVED

1шт.

4

R11709

BASE - full flow filter

1шт.

5

R11710

GASKET - filter, Serial Range: base-crankcase

1шт.

6

R11711

ADAPTER- filter, Serial Range: base-filter

1шт.

7

R11712

VALVE - anti-drain back

1шт.

8

R11713

SPRING - valve

1шт.

9

A30059

GASKET

- plug

2шт.

10

R11714

PLUG - valve spring

1шт.

11

R11715

PLUG - magnetic

1шт.

2

R11716

STUD - 7/16 - 14 NC x 2 (R11709 mt'g.)

5шт.

13

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

14

47863

SPRING CUP

NUT - hex. (7/16 - 14 NC)

5шт.

15

R14437

FILTER ASS'Y - engine lube oil system (type III) oil cooler included

1шт.

16

35034

FILTER, ELEMENT

CARTRIDGE - oil filter, engine lube system (type III) oil cooler included

1шт.

17

R13228

GASKET

- filter, engine lube oil system (type III) oil cooler included

1шт.

17a

R15928

BOLT ASS'Y - center, engine lube oil system (type III) oil cooler included

1шт.

17b

R15929

SEAL - dyna, engine lube oil system (type III) oil cooler included

1шт.

17c

R15930

SPRING - oil filter, engine lube system (type III) cooler included

1шт.

17d

R15931

WASHER filter, engine lube oil system (type III) oil cooler included

1шт.

17e

R15932

ADAPTER - filter, engine lube oil system (type III) oil cooler included

1шт.

17f

R15933

SEAL - engine lube oil system (type III) oil cooler included

1шт.

17g

R15934

RING - retaining, engine lube oil system (type III) oil cooler included

1шт.

18

R14473

BASE - filter, engine lube oil system (type III) oil cooler included

1шт.

19

R14455

GASKET - filter base to crankcase, engine lube oil system (type III) oil cooler included

1шт.

20

R14460

GASKET - washer, base to crankcase, engine lube oil system (type III) oil cooler included

1шт.

21

R11711

ADAPTER - filter to base, engine lube oil system (type III) oil cooler included

1шт.

22

10421

VALVE - bypass, engine lube oil system (type III) oil cooler included

1шт.

23

R14462

SPRING - bypass valve, engine lube oil system (type III) oil cooler included

1шт.

24

10423

THUMB SCREW

PLUG - valve spring bypass, engine lube oil system (type III) oil cooler included

1шт.

25

R11715

PLUG - magnetic, engine lube oil system (type III) oil cooler included

1шт.

26

10424

HARNESS

GASKET - plug bypass valve, engine lube oil system (type III) oil cooler included

1шт.

27

A30059

GASKET

- plug, engine lube oil system (type III) oil cooler included

1шт.

28

R14463

STUD - 3/8 - 16 NC x 1-5/8 (R14473 mt'g.), engine lube oil system (type III) oil cooler included

1шт.

29

R11716

STUD - 7/16 - 14 NC x 2 (R14473 mt'g.), engine lube oil system (type III) oil cooler included

5шт.

30

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Engine lube oil system (Type III) Oil cooler included 7/16"

5шт.

31

47833

NUT - hex. (7/16 - 14 NC), engine lube oil system (type III) oil cooler included

5шт.

32

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Engine lube oil system (Type III) Oil cooler included 7/16"

1шт.

33

R14464

NUT - hex. (3/8 - 16 NC), engine lube oil system (type III) oil cooler included

1шт.

34

R14457

GASKET - oil cooler to base, engine lube oil system (type III) r included

2шт.

35

R14465

COOLER - oil, engine lube oil system (type III) included

1шт.

36

R14466

STUD - 3/8 - 16 NC x 1-5/8 (R14465 mt'g.), engine lube oil system (type III) oil cooler included

1шт.

37

R14463

STUD - 3/8 - 16 NC x 1-5/8 (R14465 mt'g.), engine lube oil system (type III) oil cooler included

3шт.

38

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Engine lube oil system (Type III) oil cooler included 3/8"

4шт.

39

R14464

NUT - hex. (3/8 - 16 NC), engine lube oil system (type III) oil cooler included

4шт.

40

R13040

NIPPLE - pipe, 1/2" NPT, engine lube oil system (type III) oil cooler included

2шт.

41

R14932

ELBOW - pipe, at water pump adapter, engine lube oil system (type III) oil cooler included

1шт.

42

R14468

HOSE

- oil cooler to crankcase, engine lube oil system (type III) included

1шт.

43

R14931

HOSE - oil cooler to water pump adapter, engine lube oil system (type III) included

1шт.

44

10615

OLIVE

CLAMP - hose, engine lube oil system (type III) oil cooler included

4шт.

45

R14470

ELBOW - oil cooler, rear, engine lube oil system (type III) included

1шт.

46

R14456

GASKET

- elbow to oil cooler, engine lube oil system (type III) included

2шт.

47

R14930

ELBOW - oil cooler front, engine lube oil system (type III) included

1шт.

48

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, ctsk. head, 3/8" NPT, engine lube oil system (type III) oil cooler included

3шт.

49

72626

PISTON

PLUG - pipe, 1/4" NPT, engine lube oil system (type III) oil cooler included

1шт.

50

R14472

SCREW & LOCKWASHER ASS'Y, engine lube oil system (type III) oil cooler included

4шт.

51

R14933

NIPPLE - pipe, 1/2" NPT, engine lube oil system (type III) oil cooler included

1шт.

52

R13040

NIPPLE - pipe, 1/2" NPT, engine lube oil system (type III) oil cooler included

1шт.

53

R14405

NIPPLE - pipe, 1/2" NPT, engine lube oil system (type III) oil cooler included

1шт.

217-103

COCK, DRAIN

DRAIN COCK - oil cooler (Not illustrated), engine lube oil system (type III) included

1шт.
