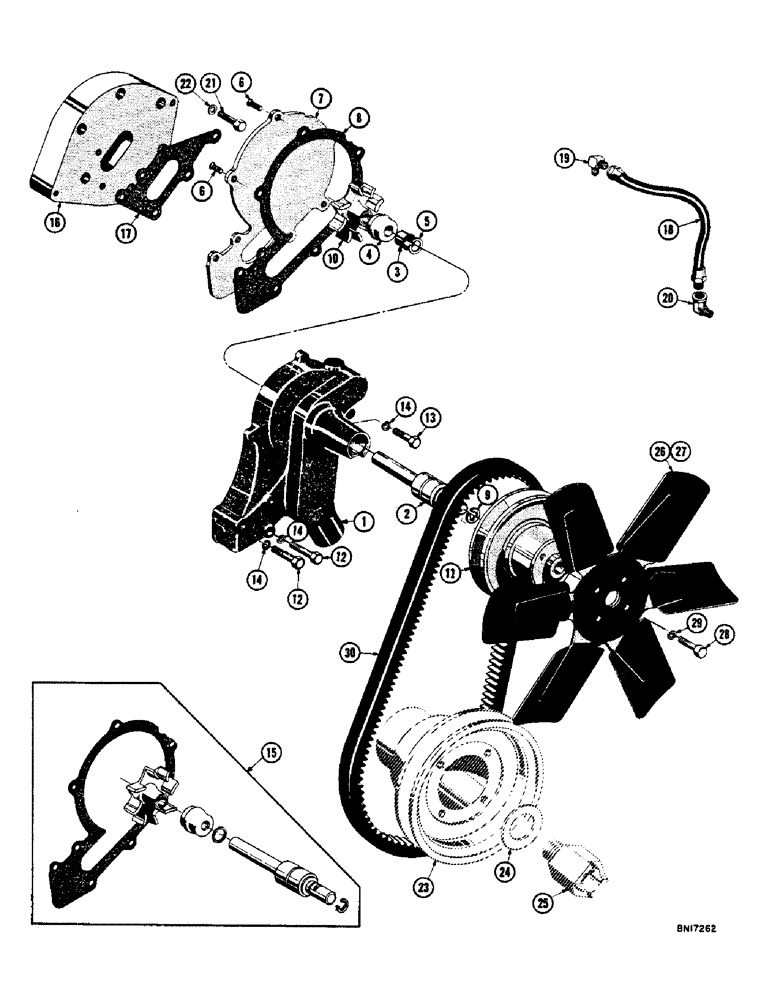

Запчасти Case 800 (038) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

R17907

SPARE PART (Complete)

1шт.

R17908

SPARE PART

1шт.

1

R13471

SPARE PART BODY - water pump

1шт.

R17912

SHAFT

& BEARING ASSY - drive

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT & BEARING ASSY - drive

1шт.

3

NSS

NOT SOLD SEPARAT

SLINGER - water pump

1шт.

4

10503

SEAL ASSY.

Water pump

1шт.

5

R13473

RING, SNAP

RING SNAP RETAINER - bearing

1шт.

6

10506

SCREW -, Serial Range: cover-body

4шт.

7

K965347

BUSHING

COVER - water pump

1шт.

8

70860

GASKET

Water pump

1шт.

9

R17913

RING, SNAP

RING SNAP Water pump pulley retainer

1шт.

10

R3705

KIT

IMPELLER ASSY - water pump

1шт.

11

R17909

PULLEY - fan hub

1шт.

12

36596

SCREW - 3/8"-16 NC x 2-1/8 (R17907 mt'g.)

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(R17907 mt'g.)

1шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

R3705

KIT

Water pump repair

1шт.

16

R14404

ADAPTER - water pump

1шт.

17

70859

GASKET

SPARE PART Water, Serial Range: pump-adapter

1шт.

18

R12000

SPARE PART ASSY - by pass

1шт.

19

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

1шт.

20

71837

GASKET

SPARE PART ELBOW - 90 degree street, 3/8" NPT

1шт.

21

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

SCREW - 1/4 - 20 NC x 1-1/4 (R14404 mt'g.)

6шт.

22

71838

GASKET

Copper

6шт.

23

REF

INSTRUCTION

PULLEY - fan drive (See figure 16, ref. #11)

1шт.

24

REF

INSTRUCTION

WASHER - crankshaft starting jaw (See figure 16, ref. #12)

1шт.

25

REF

INSTRUCTION

JAW - crankshaft starting (See figure 16, ref. #13)

1шт.

26

70268

FAN - suction (Standard & Dozer tractors)

1шт.

27

72806

TONGUE

SPARE PART FAN - pusher (Loader tractors)

1шт.

When replacing a suction type fan with a pusher type fan, an anti-sandblast screen must be used. See page 146 when ordering.

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Fan mt'g.)

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

R17746

BELT

Fan

1шт.
