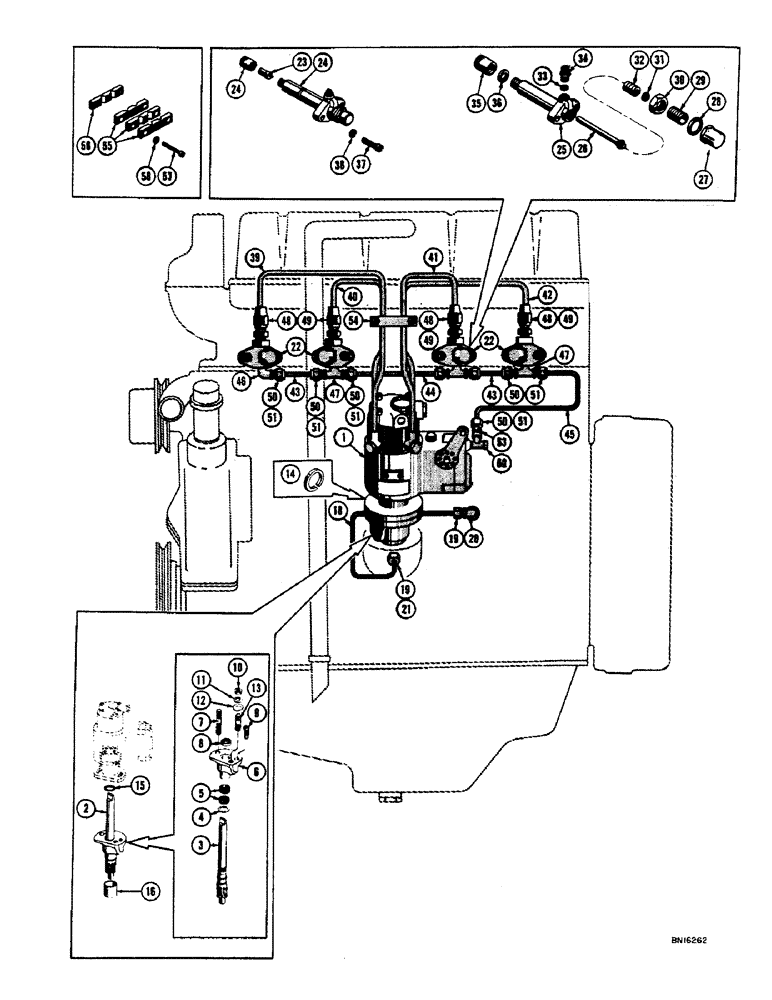

Запчасти Case 800 (032) - FUEL INJECTION SYSTEM (01) - ENGINE

1

71822

PUMP ASS'Y - fuel injection (See figure 34 for breakdown)

1шт.

2

71868

SHAFT ASS'Y - injection pump drive

1шт.

3

R12378

SHAFT - drive (.025 oversize)

1шт.

R12379

SHAFT - drive (.015 oversize), Serial Range: (Optional-R12378)

1шт.

4

R11597

WASHER - thrust

1шт.

5

313288R1

SEAL

- drive shaft

2шт.

6

R11598

ADAPTER - mounting

1шт.

7

R11599

STUD - mounting

1шт.

8

R11600

NUT - shaft retaining

1шт.

9

R11601

SCREW - mounting

1шт.

10

R11602

NUT - lock

2шт.

11

R11603

X

WASHER - lock

2шт.

12

R11604

WASHER - plain

2шт.

13

R11605

STUD - mounting

1шт.

14

92-5

LOCK WASHER,5/16"

(71822 mt'g.) 5/16"

2шт.

15

17886

SEAL - injection pump

1шт.

16

17885

BUSHING

- injection pump drive

1шт.

17

10160

CYLINDER END CAP

ELBOW - 90 degree street, 1/4" NPT, injection pump inlet (Not shown)

1шт.

18

33866

PIPE FITTING

TUBE - cylinder block to injection pump drive

1шт.

19

1281237C1

PLATE

NUT - tube, injection pump oil tube

2шт.

20

34009

ELBOW - injection pump oil tube

1шт.

21

444024

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING - reducing, 1/4" NPT to 1/8" NPT cylinder block

1шт.

22

71930

HYD TUBE

HOLDER & TIP ASS'Y - nozzle

4шт.

23

A31159

NOZZLE INJECTION

TIP - nozzle

1шт.

24

71931

HOLDER ASS'Y - nozzle (Order 71930 for service)

1шт.

25

19330

BODY - nozzle holder

1шт.

26

19331

SPINDLE

1шт.

27

19332

NUT - spring cap

1шт.

28

19333

WASHER - nozzle holder

2шт.

29

19334

NUT - adjusting, spring cap

1шт.

30

19335

NUT - lock

1шт.

31

19336

WASHER - nozzle holder

1шт.

32

R13084

SPRING - nozzle holder

1шт.

33

R13083

WASHER - nozzle holder

1шт.

34

19339

ROTOR

CONNECTOR - nozzle holder

1шт.

35

19340

NUT - nozzle cap

1шт.

36

19341

SPARE PART

WASHER - nozzle cap

1шт.

37

71862

SCREW - 5/16 - 18 NC 1-5/8 (71930 mt'g.)

8шт.

38

92-5

LOCK WASHER,5/16"

8шт.

39

71968

SCREEN

TUBE ASS'Y - injection (#1, Serial Range: nozzle-pump)

1шт.

40

71969

TUBE ASS'Y - injection (#2, Serial Range: nozzle-pump)

1шт.

41

71970

MANIFOLD

TUBE ASS'Y - injection (#3, Serial Range: nozzle-pump)

1шт.

42

71971

PIPE

TUBE ASS'Y - injection (#4, Serial Range: nozzle-pump)

1шт.

43

71859

TUBE ASS'Y - leak-off (#1 to #2 and #3 to #4 cylinders)

2шт.

44

71860

TUBE ASS'Y - leak-off (#2 to #3 cylinder)

1шт.

45

71869

TUBE ASS'Y - leak-off (#4, Serial Range: cylinder-pump)

1шт.

46

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 3/16 flex tube

1шт.

47

30309

TEE - 3/16 flex tube

3шт.

48

30307

NUT - ermeto coupling

4шт.

49

30308

RING - ermeto coupling

4шт.

50

681180R1

NUT,0.188" OD

- 3/16 flex tube

8шт.

51

222-101

SLEEVE,3/16" Tube

- 3/16 flex tube

8шт.

52

NLS

NO LONGER SERVICED

- street, 1/8" NPT

1шт.

53

NLS

NO LONGER SERVICED

CONNECTOR - male, leak-off tee at injection pump

1шт.

54

71864

CLAMP ASS'Y - fuel injection lines

1шт.

55

30303

CLAMP SECTION

3шт.

56

30303

CLAMP SECTION

1шт.

57

71867

SCREW - 1/4 - 20 NC (Clamp mt'g.)

2шт.

58

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
