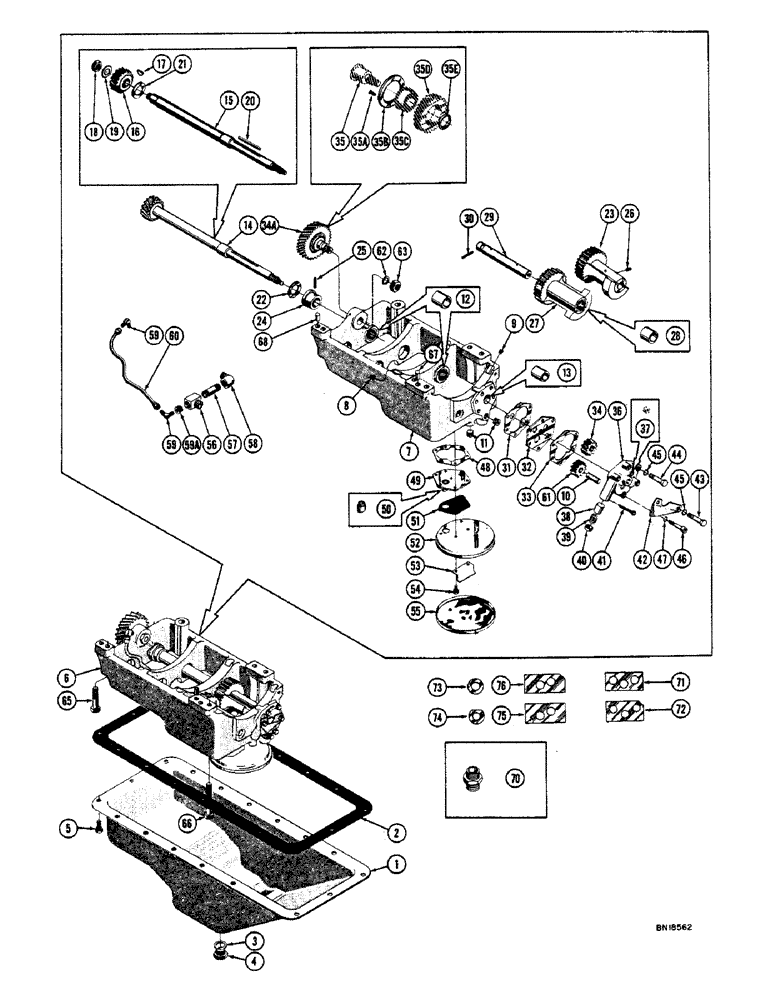

Запчасти Case 800 (024) - LANCHESTER BALANCER (USED WITH TYPE I CRANKCASE) (01) - ENGINE

1

17386

COUPLING,3/8" - 18 NPT x 3/8" - 18 NPT

PAN ASS'Y - oil

1шт.

2

11145

GASKET

- oil pan

1шт.

3

A30059

GASKET

- oil pan drain plug

1шт.

4

VT4521

X

PLUG - oil pan drain

1шт.

5

10139

SCREW & LOCKWASHER ASS'Y - 3/8 - 16 NC x 1 (17386 mt'g.)

18шт.

6

R13861

BALANCER ASS'Y - Lanchester

1шт.

7

R13862

HOUSING ASS'Y - counterweight drive

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - counterweight drive

1шт.

8

30395

PLUG - pipe

1шт.

9

72626

PISTON

PLUG - pipe

1шт.

10

72697

COVER

SHAFT - oil pump driven gear

1шт.

11

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

Pipe Hex Soc, 3/8"-18

2шт.

12

R18669

BUSHING

2шт.

13

R18666

BUSHING

1шт.

14

R11962

SHAFT ASS'Y - oil pump & counterweight drive

1шт.

15

R16083

SHAFT - oil pump & counterweight drive

1шт.

16

R16084

GEAR - counterweight drive shaft

1шт.

17

73365

LEVER

KEY - Woodruff (Gear mt'g.)

1шт.

18

73366

NUT - lock (Gear mt'g.)

1шт.

19

73367

WIRE HARNESS

LOCK - nut

1шт.

20

73364

KEY

- square (Counterweight gear mt'g.)

1шт.

21

R16085

WASHER - thrust

1шт.

22

R14529

WASHER - thrust, counterweight drive gear

2шт.

23

R13481

GEAR - counterweight driver

1шт.

24

R14530

COLLAR - drive shaft

1шт.

25

R14533

X

PIN - roll, collar to drive shaft (Order D29403 taper pin and R23225 nut for service)

1шт.

26

73385

GEAR

SCREW - set, drive gear

2шт.

27

R13480

GEAR ASS'Y - counterweight driven

1шт.

NSS

NOT SOLD SEPARAT

GEAR - counterweight driven

1шт.

28

D29402

BUSHING

2шт.

29

R14531

SHAFT ASS'Y - counterweight driven

1шт.

30

38-31228

PIN,3/16" x 1 3/4", Coiled

(73386 mt'g.) 3/16" x 1 3/4", Coiled

1шт.

31

R19389

GASKET - oil pump cover

1шт.

32

R11038

COVER - oil pump body

1шт.

33

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

34

R11037

GEAR - oil pump drive

1шт.

34a

R22007

GEAR & STUD ASS'Y - idler

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT - idler

1шт.

35a

171-251

SCREW,Sl Flat Hd, #10 - 24 x 1/2"

- #10 - 24 NC x 1/2

4шт.

35b

73373

PLATE - bearing retainer

1шт.

35c

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

35d

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

35e

73362

HOOD

SPACER - idler gear

1шт.

R13860

BODY ASS'Y - oil pump

1шт.

36

R14454

BODY ASS'Y - oil pump (Order R13860 for service)

1шт.

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - oil pump body

1шт.

38

R13545

X

VALVE - oil pressure relief

1шт.

39

D29528

VALVE SPRING

SPRING - relief valve

1шт.

40

A29260

RETAINER

- oil relief spring

1шт.

41

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

42

73396

SHIELD - oil relief valve

1шт.

43

73398

SCREW - oil pump body

3шт.

44

73397

CABLE

SCREW - oil pump body

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

46

R12721

SCREW - oil pump body

1шт.

47

76992

WASHER, LOCK

WASHER - lock (Shakeproof)

1шт.

48

10395

GASKET - oil inlet cover to housing

1шт.

49

73399

CLIP

COVER ASS'Y - oil inlet

1шт.

NSS

NOT SOLD SEPARAT

COVER - oil inlet

1шт.

50

10403

TUBE - oil inlet suction

1шт.

51

10397

BUSHING

GASKET - oil inlet cover to strainer frame

1шт.

52

73400

PIN

FRAME - oil inlet strainer

1шт.

53

10398

SPACER - oil inlet strainer

1шт.

54

11497

SCREW & LOCKWASHER ASS'Y - (73400 mt'g.)

6шт.

55

73401

SCREEN ASS'Y - oil strainer

1шт.

56

72685

BUSHING

TEE - 3/8" NPT (Counterweight housing center)

1шт.

57

R11971

NIPPLE - pipe (72685 tee to 74232 elbow)

1шт.

58

74232

ELBOW - 90 degree street

1шт.

59

31-250

ELBOW

- counterweight housing to idler gear boss

1шт.

59a

74231

BUSHING - reducing

1шт.

60

R11968

TUBE ASS'Y - counterweight housing to idler gear boss

1шт.

61

73395

GEAR - oil pump driven

1шт.

62

92-21062

LOCK WASHER,5/8"

idler gear stud 5/8"

1шт.

63

73366

NUT - hex., idler gear stud

1шт.

64

R11969

TUBE ASS'Y - housing to front cap (Not illustrated)

1шт.

65

R11893

SCREW - place, 7/16 - 14 NC x 3-3/4 (R13861 mt'g.)

2шт.

66

R11894

SCREW - place, 7/16 - 14 NC x 4-3/4 (R13861 mt'g.)

4шт.

67

R11896

PIN - dowel (Counterweight housing - front)

1шт.

68

30233

PIN - dowel (Counterweight housing - rear)

1шт.

69

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 degree street, 3/8" NPT (To front bearing cap) (Not illustrated)

1шт.

70

73369

PANEL

CONNECTOR - (To 221-413 elbow)

1шт.

71

R18579

SHIM - rear (.002")

1шт.

72

R18582

SHIM - rear (.004")

1шт.

73

R18580

SHIM - right front (.002")

1шт.

74

R18583

SHIM - right front (.004")

1шт.

75

R18581

SHIM - left front (.002")

1шт.

76

R18584

SHIM - right front (.004")

1шт.
