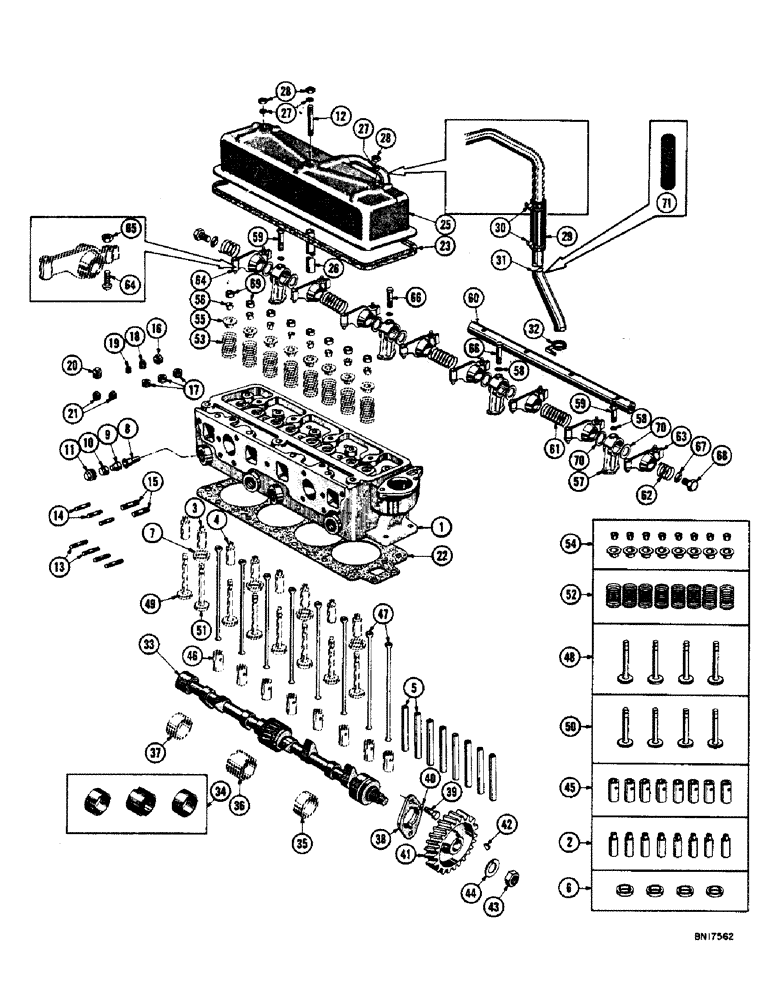

Запчасти Case 800 (020) - CYLINDER HEAD, VALVES, AND CAMSHAFT (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R11889
HEAD (CYLINDER)
HEAD ASS'Y - cylinder (With valves), Serial Range: (Optional-73774)
1шт.
73774
ASS'Y - cylinder (Stripped)
1шт.
2
6744
FITTING
GUIDE KIT - valve
1шт.
3
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve stem
4шт.
4
NSS
NOT SOLD SEPARAT
GUIDE - intake valve stem
4шт.
5
71923
TUBE - push rod
8шт.
6
6749
PIN
INSERT KIT - exhaust valve seat
1шт.
7
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat
4шт.
8
71926
BODY
ASS'Y - energy cell
4шт.
9
NLS
NO LONGER SERVICED
CAP - energy cell
4шт.
10
71919
RETAINER
- energy cell
4шт.
11
10607
PLUG
- energy cell retainer
4шт.
12
11159
STUD - 3/8 - 16 NC x 5-1/2 (Cylinder head cover mt'g.)
1шт.
13
NLS
NO LONGER SERVICED
STUD - 3/8 - 16 NC x 2-1/4 (Manifold mt'g.)
4шт.
14
10697
FITTING
STUD - 3/8 - 16 NC x 1-7/8 (Manifold mt'g.)
3шт.
15
11163
STUD - 3/8 - 16 NC x 1-3/4 (Manifold mt'g.)
2шт.
16
30395
PLUG - pipe, oil hole
1шт.
17
217-439
PLUG,Hex Soc, 1/2" - 14 NPTF
- pipe, ctsk. head, 1/2" NPT
3шт.
18
10772
LOCK WASHER
PLUG - pipe, 3/4" NPT
1шт.
19
A30029
PLUG
- fuse, 1/8" NPT
1шт.
20
221-13
PLUG,Sq Hd, 3/8"-18
- pipe, extended square head, 3/8" NPT
1шт.
21
10771
LOCK WASHER
PLUG - pipe, 5/8" NPT
2шт.
22
R18627
GASKET
- cylinder, Serial Range: head-crankcase
1шт.
23
11147
GASKET
- valve cover to cylinder head
1шт.
24
RESERVED
1шт.
25
72641
COVER ASS'Y - valve
1шт.
27
30257
GASKET
- valve cover studs
3шт.
28
25-106
NUT,3/8"-16, G5
- hex., (3/8 - 16 NC) (72641 mt'g.)
3шт.
29
32798
HOSE
- road draft tube
1шт.
30
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
31
74743
TUBE - road draft
1шт.
32
74835
BRACKET - road draft tube
1шт.
33
71806
PLATE
CAMSHAFT
1шт.
34
R4292
BUSHING KIT - camshaft
1шт.
35
NSS
NOT SOLD SEPARAT
BUSHING - camshaft front
1шт.
36
NSS
NOT SOLD SEPARAT
BUSHING - camshaft center
1шт.
37
NSS
NOT SOLD SEPARAT
BUSHING - camshaft rear
1шт.
38
NLS
NO LONGER SERVICED
PLATE - camshaft thrust
1шт.
39
11588
NUT
SCREW - 3/8 - 16 NC x 7/8 (11587 mt'g.)
2шт.
40
11166
WASHER - lock, (11587 mt'g.)
2шт.
41
71843
GASKET
GEAR - camshaft timing
1шт.
R16633
GEAR - camshaft timing (.001" undersize)
1шт.
R16634
GEAR - camshaft timing (.002" undersize)
1шт.
R16635
GEAR - camshaft timing (.003" undersize)
1шт.
R16630
GEAR - camshaft timing (.001" oversize)
1шт.
R16631
GEAR - camshaft timing (.002" oversize)
1шт.
R16632
GEAR - camshaft timing (.003" oversize)
1шт.
42
10776
LOCK WASHER
KEY - Woodruff (Timing gear)
1шт.
43
10718
FITTING
NUT - camshaft timing gear
1шт.
44
10447
SEALING RING COLLAR
LOCK - nut
1шт.
45
6741
ELBOW
TAPPET KIT - valve
1шт.
46
NSS
NOT SOLD SEPARAT
TAPPET - valve
8шт.
47
71925
SPARE PART
ROD - valve push
8шт.
48
6732
VALVE KIT - intake
1шт.
49
NSS
NOT SOLD SEPARAT
VALVE - intake
4шт.
50
6735
VALVE
KIT - exhaust
1шт.
51
NSS
NOT SOLD SEPARAT
VALVE - exhaust
4шт.
52
6737
SPRING KIT
- valve
1шт.
53
NSS
NOT SOLD SEPARAT
SPRING - valve
8шт.
54
6739
SEAT
& LOCK KIT - valve
1шт.
55
NSS
NOT SOLD SEPARAT
RETAINER - valve spring
8шт.
56
NSS
NOT SOLD SEPARAT
LOCK - valve spring retaining
16шт.
57
30176
SUPPORT - rocker arm shaft
4шт.
58
495-11047
WASHER,7/16", SAE
(30176 mt'g.) 7/16", SAE
4шт.
59
11152
HARNESS
SCREW - 7/16 - 14 NC x 3/8 - 16 NC (30176 mt'g.)
2шт.
60
11116
ARM
SHAFT - rocker arm
1шт.
61
30223
RIGID TUBE
SPRING - rocker arm shaft, long
3шт.
62
30229
BULB
SPRING - rocker arm shaft, short
2шт.
64
72025
SCREW - rocker arm adjusting
4шт.
65
72024
HYD CONNECTOR
NUT - lock, rocker arm ass'y
4шт.
66
30240
SCREW - 7/16 - 14 NC x 4 (30176 mt'g.)
2шт.
67
30259
NUT
- copper asbestors
2шт.
68
30270
LEVER
PLUG - rocker arm shaft
4шт.
70
72673
GASKET
SPACER - rocker arm shaft
8шт.
71
R17265
ELEMENT - road draft tube
1шт.
Выбрано товаров: 78
