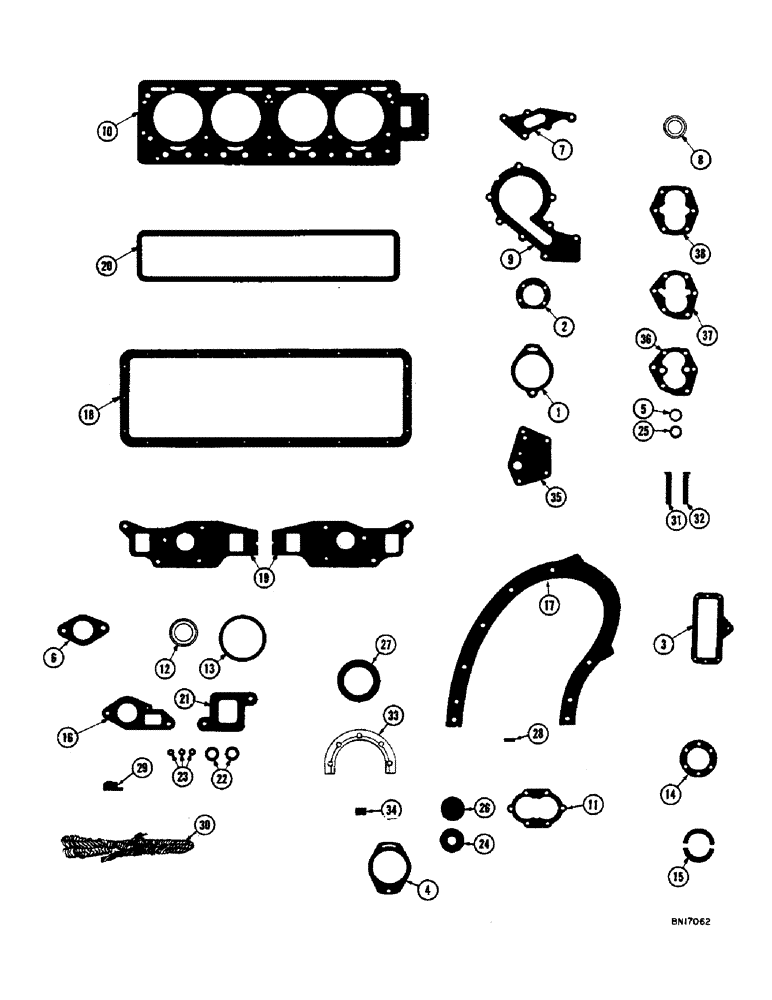

Запчасти Case 800 (012) - SERVICE GASKET SETS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
R2285
X
GASKET SET - service
1шт.
1
A30522
GASKET
- magneto hole cover
1шт.
2
30072
GASKET - adapter hole cover
1шт.
3
30070
PULLEY
GASKET - adapter to gear cover
1шт.
4
10480
GASKET -, Serial Range: magneto-adapter
1шт.
5
17886
SEAL - injection pump
1шт.
6
30160
GASKET
GASKET - air inlet elbow to manifold
1шт.
7
70859
GASKET
- water, Serial Range: pump-adapter
1шт.
8
10503
SEAL ASSY.
SEAL - water pump
1шт.
9
70860
GASKET
- water pump cover
1шт.
10
R18627
GASKET
- cylinder head
1шт.
11
11141
BALL
GASKET - oil pump cover
1шт.
12
10670
FITTING
SEAL - oil, crankshaft front
1шт.
13
126-129
WOODRUFF KEY,#C, 5/16" x 1 1/8", HT
PACKING - cylinder liner
8шт.
14
33849
GASKET - hand hole cover
1шт.
15
D52296
SEAL
- oil, crankshaft rear
2шт.
16
10673
FITTING
GASKET - water outlet elbow
1шт.
17
11144
PIVOT
GASKET - gear, Serial Range: cover-crankcase
1шт.
18
11145
GASKET
- oil pan
1шт.
19
R19121
GASKET - manifold
2шт.
20
11147
GASKET
- cylinder head cover
1шт.
21
10679
PIPE FITTING
GASKET - water inlet elbow
1шт.
22
NLS
NO LONGER SERVICED
- copper asbestos
2шт.
23
30257
GASKET
- copper asbestos
3шт.
24
71847
SEAL
WASHER - felt (Oil strainer tube)
1шт.
25
A30059
GASKET
- oil pan drain
1шт.
26
10134
FELT - flywheel pointer cover
1шт.
27
10681
PIPE FITTING
SEAL - dust, fan drive pulley
1шт.
28
R11931
WICK - rocker arm oil
8шт.
29
R11932
GASKET - rear bearing filler block
2шт.
30
VT3391
PACKING
- rear bearing filler block (10 ft.)
1шт.
31
D52296
SEAL
- L.H. side, rear bearing filler block
1шт.
32
D52296
SEAL
- R.H. side, rear bearing filler block
1шт.
33
R11933
RETAINER - crankshaft oil seal
1шт.
34
11170
PLUG - cranksahft pulley keyway
1шт.
35
10397
BUSHING
GASKET - oil inlet cover to strainer frame
1шт.
36
R19389
GASKET - oil pump cover to counterweight housing
1шт.
37
73392
GASKET - oil pump, Serial Range: body-cover
1шт.
38
10395
GASKET - oil inlet cover to housing
1шт.
Выбрано товаров: 39
