Запчасти Case 800 (266) - EQUIPMENT CONTROL VALVE SECTIONS (07) - HYDRAULIC SYSTEM

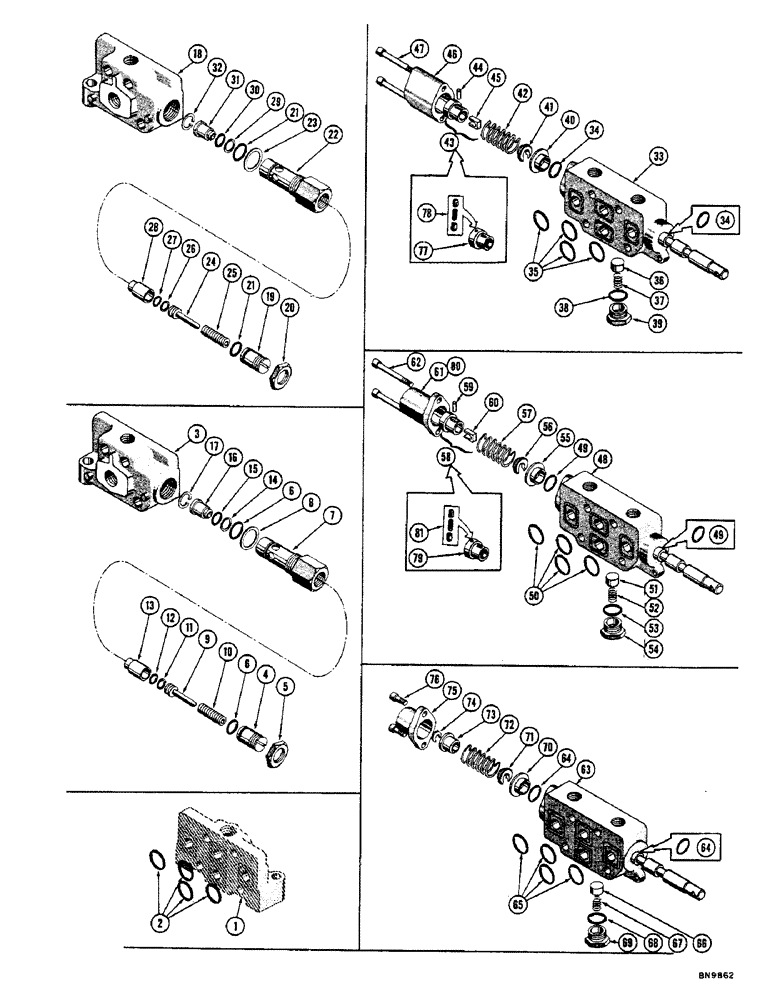

Схема запчастей Case 800 - (266) - EQUIPMENT CONTROL VALVE SECTIONS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

R14268

SECTION ASS'Y - end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

R14273

SECTION ASS'Y - end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

R15403

SEAL - "O" ring

4шт.

R14276

SECTION ASS'Y - end

1шт.

3

R15423

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y - relief valve

1шт.

4

R12506

SCREW - spring adjusting

1шт.

5

R12507

LOCK NUT

- locking

1шт.

6

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

7

R12505

SHELL - cartridge

1шт.

8

23146

WASHER

- fibre

1шт.

9

R12508

PLUNGER - displacement

1шт.

10

23136

SPRING

- compression

1шт.

11

R12509

RING

- back up

1шт.

12

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

13

R12510

SEAT

- floating

1шт.

14

R12512

OIL SEAL

RING - back up

1шт.

15

A11027

GASKET

SEAL - "O" ring

1шт.

16

R12511

POPPET

1шт.

17

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

R14271

SECTION ASS'Y - end

1шт.

18

R15460

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y - relief valve

1шт.

19

R12506

SCREW - spring adjusting

1шт.

20

R12507

LOCK NUT

- locking

1шт.

21

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

22

R12505

SHELL - cartridge

1шт.

23

23146

WASHER

- fibre

1шт.

24

R12508

PLUNGER - displacement

1шт.

25

23136

SPRING

- compression

1шт.

26

R12509

RING

- back up

1шт.

27

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

28

R12510

SEAT

- floating

1шт.

29

R12512

OIL SEAL

RING - back up

1шт.

30

A11027

GASKET

SEAL - "O" ring

1шт.

31

R12511

POPPET

1шт.

32

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

R14272

SECTION ASS'Y - center

1шт.

33

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order R14272 for service)

1шт.

34

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

35

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

36

D45694

SPOOL

POPPET - check

1шт.

37

R15308

VALVE SPRING

SPRING - check valve

1шт.

38

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

39

39007

CAP

- check valve

1шт.

40

39009

RETAINER

- "O" ring

1шт.

41

39014

SEAT - spring retaining

1шт.

42

39015

SPRING - valve

1шт.

43

73569

GUIDE ASS'Y - spring (Order ref. #77 & #78 for service)

1шт.

44

39016

PIN - spiralox

1шт.

45

39011

CLIP - spring guide

1шт.

46

R14174

CAP & SLEEVE ASS'Y - valve

1шт.

47

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8 - 16 NC x 3-1/2

2шт.

R14269

SECTION ASS'Y - center

1шт.

33

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order R14269 for service)

1шт.

34

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

35

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

36

D45694

SPOOL

POPPET - check valve

1шт.

37

R15308

VALVE SPRING

SPRING - check valve

1шт.

38

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

39

39007

CAP

- check valve

1шт.

40

39009

RETAINER

- "O" ring

1шт.

41

39014

SEAT - spring retainer

1шт.

42

39015

SPRING - valve

1шт.

43

73569

GUIDE ASS'Y - spring (Order ref. #77 & #78 for service)

1шт.

44

39016

PIN - spiralox

1шт.

45

39011

CLIP - spring guide

1шт.

46

R14174

CAP & SLEEVE ASS'Y - valve

1шт.

47

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8 - 16 NC x 3-1/2

2шт.

R14275

SECTION ASS'Y - center

1шт.

48

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order R14275 for service)

1шт.

49

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

SEAL - "O" ring

2шт.

50

R15403

SEAL - "O" ring

4шт.

51

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

52

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

53

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

54

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

55

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

56

16205

SEAT - spring retainer

1шт.

57

23127

SPRING

- valve

1шт.

58

73568

COCK

GUIDE ASS'Y - spring (Order ref. #79, #80, & #81 and (2) R22755 control valve links for service)

1шт.

59

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, , Spiralox 5/16" x 13/16", Slotted

1шт.

60

1281423C1

DECAL

CLIP - spring guide

1шт.

61

73570

CAP & SLEEVE ASS'Y - valve

1шт.

62

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18 NC x 3/4

2шт.

R14274

SECTION ASS'Y - center

1шт.

63

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order R14274 for service)

1шт.

64

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

65

R15403

SEAL - "O" ring

4шт.

66

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

67

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

68

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

69

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

70

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

71

16205

SEAT - spring retainer

1шт.

72

23127

SPRING

- valve

1шт.

73

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

74

16413

HOSE

- spring guide

1шт.

75

23115

HYDRAULIC HOSE

CAP - valve

1шт.

76

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18 NC x 3/4

2шт.

R14270

X

SECTION ASS'Y - center

1шт.

63

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order R14270 for service)

1шт.

64

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

65

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

66

D45694

SPOOL

POPPET - check valve

1шт.

67

R15308

VALVE SPRING

SPRING - check valve

1шт.

68

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

69

39007

CAP

- check valve

1шт.

70

39009

RETAINER

- "O" ring

1шт.

71

39014

SEAT - spring retainer

1шт.

72

39015

SPRING - valve

1шт.

73

39022

PTO

GUIDE - spring

1шт.

74

39025

WASHER - spring guide retaining

1шт.

75

39021

PTO

CAP - valve

1шт.

76

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 3/8 - 16 NC x 7/8

2шт.

77

R22457

GUIDE - spring (Loader valve only)

1шт.

78

R4457

KIT - poppet (Loader valve only)

1шт.

79

R22671

GUIDE - spring (Dozer valve only)

1шт.

80

R22736

CAP - valve end (Dozer valve only)

1шт.

81

D40752

KIT

- poppet (Dozer valve only)

1шт.

Выбрано товаров: 123
