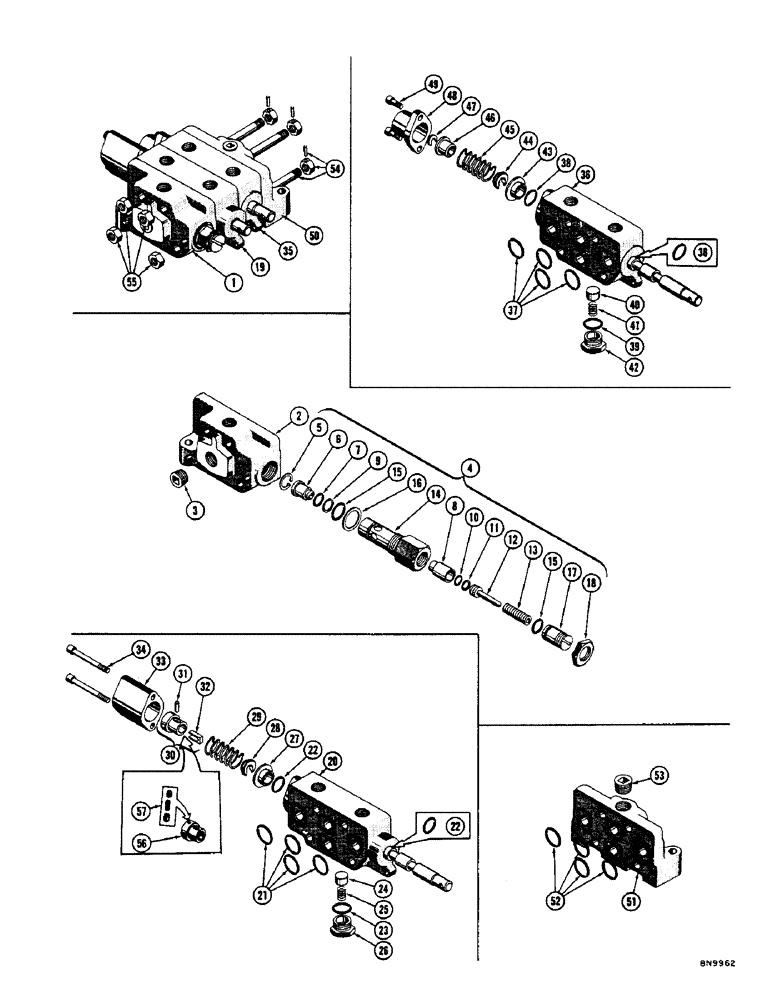

Запчасти Case 800 (264) - R14047 EQUIPMENT CONTROL VALVE (07) - HYDRAULIC SYSTEM

R14047

VALVE ASS'Y - hydraulic

1шт.

1

R14271

SECTION ASS'Y - end

1шт.

2

R15460

BODY - end section

1шт.

3

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, 1" NPT

1шт.

4

R14175

VALVE - relief, sub ass'y

1шт.

5

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

6

R12511

POPPET

- relief valve

1шт.

7

A11027

GASKET

SEAL - "O" ring

1шт.

8

R12510

SEAT

- floating

1шт.

9

R12512

OIL SEAL

RING - back up

1шт.

10

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

11

R12509

RING

- back up

1шт.

12

R12508

PLUNGER - displacement

1шт.

13

23136

SPRING

- compression

1шт.

14

R12505

SHELL - cartridge

1шт.

15

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

16

23146

WASHER

- fibre

1шт.

17

R12506

SCREW - spring adjusting

1шт.

18

R12507

LOCK NUT

- locking

1шт.

19

R14269

SECTION ASS'Y - center

1шт.

20

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - (Order R14269 for service)

1шт.

21

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

22

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

23

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

24

D45694

SPOOL

POPPET - check valve

1шт.

25

R15308

VALVE SPRING

SPRING - check valve

1шт.

26

39007

CAP

- check valve

1шт.

27

39009

RETAINER

- "O" ring

1шт.

28

39014

RETAINER - spring

1шт.

29

39015

SPRING

1шт.

30

73569

GUIDE ASS'Y - spring (Order ref. #56 & #57 for service)

1шт.

31

39016

PIN - spirolox

1шт.

32

39011

CLIP - restriction

1шт.

33

R14174

CAP - valve

1шт.

34

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8 - 16 NC x 3-1/2

2шт.

35

R14270

X

SECTION ASS'Y - center

1шт.

36

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - (Order R14270 for service)

1шт.

37

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

38

350818R1

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring

2шт.

39

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

40

D45694

SPOOL

POPPET - check valve

1шт.

41

R15308

VALVE SPRING

SPRING - check valve

1шт.

42

39007

CAP

- check valve

1шт.

43

39009

RETAINER

- "O" ring

1шт.

44

39014

RETAINER - spring

1шт.

45

39015

SPRING

1шт.

46

39022

PTO

GUIDE - spring

1шт.

47

39025

RETAINER - spring guide

1шт.

48

39021

PTO

CAP - valve

1шт.

49

R15399

SHCS - 3/8 - 16 NC x 7/8

2шт.

50

R14268

SECTION ASS'Y - end

1шт.

51

R15310

BODY - valve end section

1шт.

52

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

53

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, 1" NPT

1шт.

54

39031

STUD ASS'Y

4шт.

55

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, , Elastic stop 5/8"-18, GC

4шт.

56

R22457

GUIDE - spring (Loader only)

1шт.

57

R4457

KIT - poppet (Loader only)

1шт.
