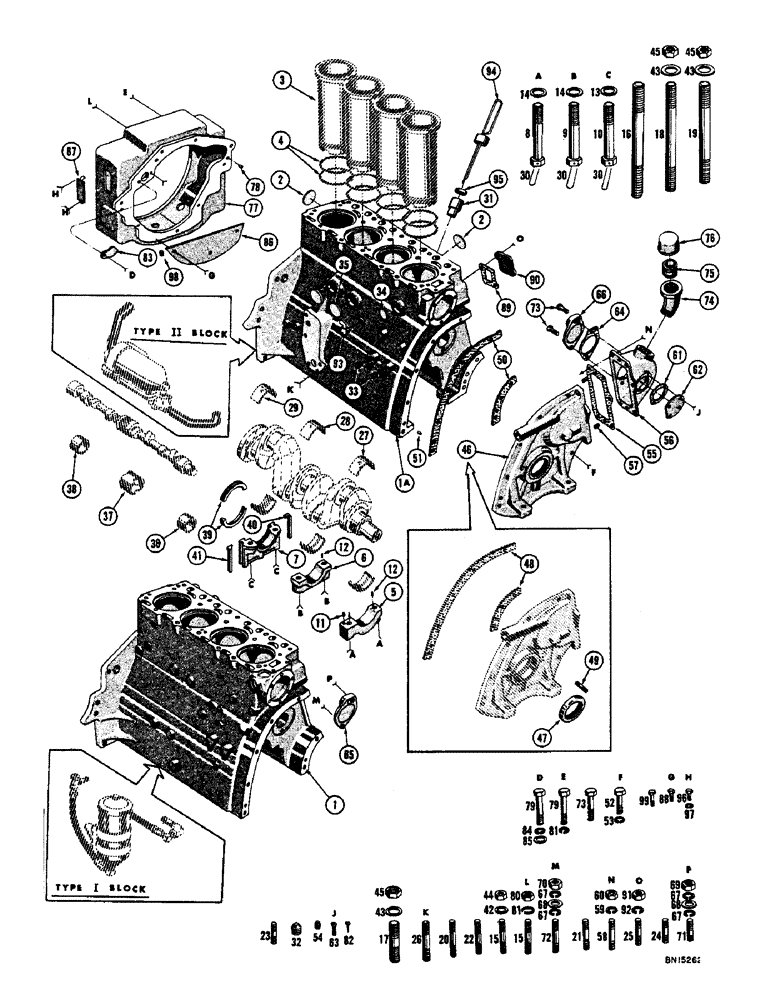

Запчасти Case 800 (008) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

1

R10913

SPARE PART CYLINDER & CRANKCASE ASS'Y - "S" ass'y (Optional to R11879) (Type I - for engines with vertical type full flow filters)

1шт.

1a

R14114

SPARE PART CYLINDER & CRANKCASE ASS'Y - "S" ass'y (Optional to R14113) (Type II - for engines with horizontal type full flow filters)

1шт.

1

R11879

SPARE PART CYLINDER & CRANKCASE ASS'Y - "A" ass'y (Type I - for engines with vertical type full flow filters) (Stripped block)

1шт.

1a

R14113

CYLINDER & CRANKCASE ASSY - "A" assy (Type II - for engines with horizontal type full flow filters) (Stripped block)

1шт.

2

41-32

PLUG,Exp, 2"

Hubbard

5шт.

3

REF

INSTRUCTION

LINER - cylinder (See figure 16, ref. #39)

4шт.

4

REF

INSTRUCTION

PACKING - cylinder (See figure 16, ref. #40)

8шт.

5

R11880

CAP - crankshaft front bearing

1шт.

6

11091

CAP - crankshaft center bearing

1шт.

7

11087

BELT

CAP - crankshaft rear bearing

1шт.

8

11154

HARNESS

5/8"-11 NC x 3-1/4 (R11880 mt'g.)

2шт.

9

11154

HARNESS

5/8"-11 NC x 3-1/4 (11091 mt'g.)

2шт.

10

11155

CABLE

5/8"-11 NC x 3-1/4 (11087 mt'g.)

2шт.

11

10294

BUSHING

DOWEL - ring (R11880 mt'g.)

1шт.

12

30271

SPARE PART DOWEL - pin (Bearing, Serial Range: caps-crankcase)

5шт.

13

71818

SPARE PART Plain (11087 mt'g.)

2шт.

14

71819

GEAR

SPARE PART WASHER - plain (11091 & R11880 mt'g.)

4шт.

15

VT4501

SPARE PART STUD - 3/8 - 16 NC x 1-11/16 (Cylinder head to crankcase front)

2шт.

VT4501

SPARE PART STUD - 3/8 - 16 NC x 1-11/16 (Flywheel housing mt'g.)

2шт.

16

71861

SPARE PART 9/16"-12 NC - 18 NF x 6-13/16 (Cylinder, Serial Range: head-crankcase)

3шт.

17

71918

SPARE PART 9/16"-12 NC - 18 NF x 2 (Cylinder, Serial Range: head-crankcase)

5шт.

18

11161

SCREW

STUD - 9/16"-12 NC - 18 NF x 6-11/16 (Cylinder, Serial Range: head-crankcase)

7шт.

19

71863

HEADLAMP

STUD - 9/16"-12 NC - 18 NF x 6-1/4 (Cylinder, Serial Range: head-crankcase)

2шт.

20

10697

FITTING

3/8"-16 NC x 1-7/8, Serial Range: (Manifold-crankcase)

2шт.

21

10138

STUD - 3/8"-16 NC x 1-7/16 (Generator, Serial Range: bracket-crankcase)

2шт.

22

A29431

STUD

3/8"-16 NC x 1-3/4

1шт.

23

10619

STUD - 5/16"-18 NC x 1

4шт.

24

11581

NUT

STUD - 3/8"-16 NC x 1-1/4

2шт.

25

G102128

BOLT

3/8"-16 NC x 1-3/8 (Water inlet, Serial Range: elbow-crankcase)

2шт.

26

R11716

STUD - 7/16"-14 NC x 2 (Filter base to crankcase) (Used with type II crankcase only)

4шт.

27

REF

INSTRUCTION

BEARING ASSY - front main (See figure 16, ref. #3)

1шт.

28

REF

INSTRUCTION

BEARING ASSY - center main (See figure 16, ref. #4)

1шт.

29

REF

INSTRUCTION

BEARING ASSY - rear main (See figure 16, ref. #5)

1шт.

30

30272

WIRE - lock, 11" long (Bearing cap capscrews)

3шт.

31

VT3369

SPARE PART SUPPORT - oil gauge rod

1шт.

32

VT3395

X

PLUG - pipe, 1/4" NPT

5шт.

33

30395

PLUG - pipe (Oil filter holes)

2шт.

72625

SET PISTON RINGS+0.8

SPARE PART SPACER - (Not illustrated)

2шт.

34

41-28

EXPANSION PLUG

Hubbard, 3/4" dia. (Crankcase RH front)

1шт.

35

10771

LOCK WASHER

PLUG - Hubbard, 1-5/8" dia. (Crankcase heater holes)

2шт.

36

REF

INSTRUCTION

BUSHING - camshaft front (See figure 20, ref. #34)

1шт.

37

REF

INSTRUCTION

BUSHING - camshaft center (See figure 20, ref. #34)

1шт.

38

REF

INSTRUCTION

BUSHING - camshaft rear (See figure 20, ref. #34)

1шт.

39

D52296

SEAL

Oil crankshaft rear bearing

2шт.

40

D52296

SEAL

Rear bearing filler block, LH

1шт.

41

D52296

SEAL

Rear bearing filler block, RH

1шт.

42

492-11038

LOCK WASHER,3/8"

(Cylinder head to crankcase)

2шт.

43

R16733

SPARE PART Plain (Cylinder, Serial Range: head-crankcase)

19шт.

44

25-106

NUT,3/8"-16, G5

Reg. SF hex (Cylinder head to crankcase)

2шт.

45

NLS

NO LONGER SERVICED

NUT - hex, 9/16"-18 NF (Cylinder, Serial Range: head-crankcase)

18шт.

46

R11888

SPARE PART ASSY - timing gear

1шт.

47

10670

FITTING

Crankshaft oil and dust

1шт.

48

REF

INSTRUCTION

GASKET - gear cover to crankcase (See ref. #50)

1шт.

49

VT3675

X

STUD - 3/8"-16 NC x 1-1/2

3шт.

50

11144

PIVOT

Gear, Serial Range: cover-crankcase

1шт.

51

30233

SPARE PART PIN - dowel, gear cover mounting

2шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(R11888 mt'g.)

7шт.

53

492-11038

LOCK WASHER,3/8"

9шт.

54

30395

PLUG - pipe, 1/8" NPT

1шт.

55

30070

PULLEY

Adapter to gear cover

1шт.

56

33875

TUBE NUT

PIPE FITTING Hydraulic pump

1шт.

57

30233

SPARE PART PIN - dowel

2шт.

58

VT3675

X

STUD - 3/8"-16 NC x 1-1/2 (33875 mt'g.)

5шт.

59

492-11038

LOCK WASHER,3/8"

5шт.

60

25-106

NUT,3/8"-16, G5

Reg. SF hex

5шт.

61

30072

SPARE PART Adapter hole

1шт.

62

30073

COVER - adapter hole

1шт.

63

172-97

SPARE PART SCREW - flat head, #10-32 x 1/2 (30073 mt'g.)

4шт.

64

A30522

GASKET

Hydraulic pump hole cover

1шт.

65

10155

TOOL

COVER - hydraulic pump hole (Used with type I crankcase only)

1шт.

66

R11735

COVER - hydraulic pump hole (Used with type II crankcase only)

1шт.

67

492-11038

LOCK WASHER,3/8"

(10155 mt'g. only)

4шт.

68

495-21044

WASHER,3/8"

(10155 mt'g. only)

2шт.

69

VT4505

SPARE PART NUT - hex, 3/8"-16 NC (10155 mt'g. only)

1шт.

70

25-106

NUT,3/8"-16, G5

Reg. SF hex (10155 mt'g. only)

1шт.

71

11262

HOSE

STUD - 3/8"-16 NC x 1-1/8 (10155 mt'g. only)

1шт.

72

11163

STUD - 3/8"-16 NC x 1-3/4 (10155 mt'g. only)

1шт.

73

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER ASSY - -16 NC x 1-1/4 (R11735 mt'g. only) 3/8"

2шт.

74

33877

ROLL PIN

ELBOW - 45 degree street (Oil filler)

1шт.

75

60300020

FITTING

NIPPLE - pipe (Oil filler)

1шт.

76

10406

SPARE PART ASSY - oil filler

1шт.

77

10125

HOUSING - flywheel (Must be modified as illustrated for flex plate drive)

1шт.

78

30327

PIN - dowel (10125 mt'g.)

2шт.

79

11261

HOSE

SCREW - 3/8"-16 NC x 1-1/2 (10125 mt'g.)

5шт.

80

25-106

NUT,3/8"-16, G5

Reg. SF hex (10125 mt'g.)

3шт.

81

492-11038

LOCK WASHER,3/8"

5шт.

82

10135

SCREW - drive, #10-32 x 3/4

1шт.

83

10133

COVER - flywheel pointer

1шт.

84

93-41039

LOCK WASHER,Ext Tooth, 3/8"

(10133 mt'g.)

1шт.

85

195-25

WASHER,3/8"

(10133 mt'g.)

1шт.

86

R13348

SHIELD - dust (Flywheel housing)

1шт.

87

R17486

COVER - flywheel access

1шт.

88

33865

SPARE PART SCREW - 1/4-20 NC x 1/2 (Dust shield mt'g.)

3шт.

89

10679

PIPE FITTING

GASKET - water inlet cover

1шт.

90

70891

COVER - cylinder water inlet

1шт.

91

25-106

NUT,3/8"-16, G5

Reg. SF hex (70891 mt'g.)

2шт.

92

492-11038

LOCK WASHER,3/8"

(70891 mt'g.)

2шт.

93

217-103

COCK, DRAIN

Cylinder water drain

1шт.

94

R11895

DIPSTICK

ROD ASSY - oil gauge

1шт.

95

10416

FELT - oil gauge rod

1шт.

96

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(R17486 mt'g.)

2шт.

97

92-4

LOCK WASHER,1/4"

(R17486 mt'g.)

2шт.

98

R12384

PLUG ASSY - flywheel housing

1шт.

99

R13349

SCREW & LOCKWASHER ASSY - 1/4"-20 NC x 3/4

1шт.
