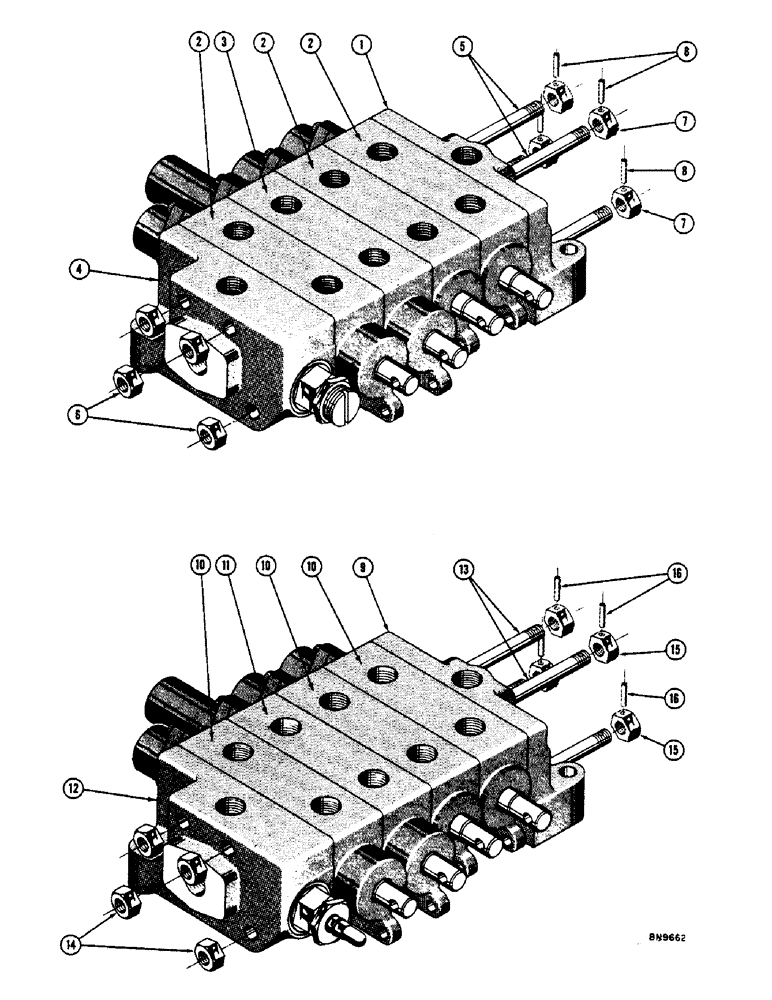

Запчасти Case 800 (250) - R14055 AND 72361 EQUIPMENT CONTROL VALVES (07) - HYDRAULIC SYSTEM

R14055

VALVE ASS'Y - hydraulic

1шт.

1

R14273

SECTION ASS'Y - end (See figure 266 for breakdown)

1шт.

2

R14274

SECTION ASS'Y - center (See figure 266 for breakdown)

3шт.

3

R14275

SECTION ASS'Y - center (See figure 266 for breakdown)

1шт.

4

R14276

SECTION ASS'Y - end (See figure 266 for breakdown)

1шт.

5

38576

KEY

STUD ASS'Y - valve

4шт.

6

231-2448

LOCK NUT,1/2"-20, GB

NUT - stop (1/2 - 20 NF)

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex. (Drilled)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

72361

DISC

VALVE ASS'Y - hydraulic

1шт.

9

23169

PLUG

SECTION ASS'Y - end (See figure 258 for breakdown) (Order R14273 for service)

1шт.

10

1281424C1

DECAL

SECTION ASS'Y - center (See figure 258 for breakdown)

3шт.

11

23168

DECAL

SECTION ASS'Y - center (See figure 258 for breakdown)

1шт.

12

23128

HYDRAULIC HOSE

SECTION ASS'Y - end (See figure 258 for breakdown) (Order D23813 for service) (See page 258 for breakdown)

1шт.

13

38576

KEY

STUD ASS'Y - valve

4шт.

14

231-2448

LOCK NUT,1/2"-20, GB

NUT - stop (1/2 - 20 NF)

1шт.

15

NSS

NOT SOLD SEPARAT

NUT - hex. (Drilled)

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.
