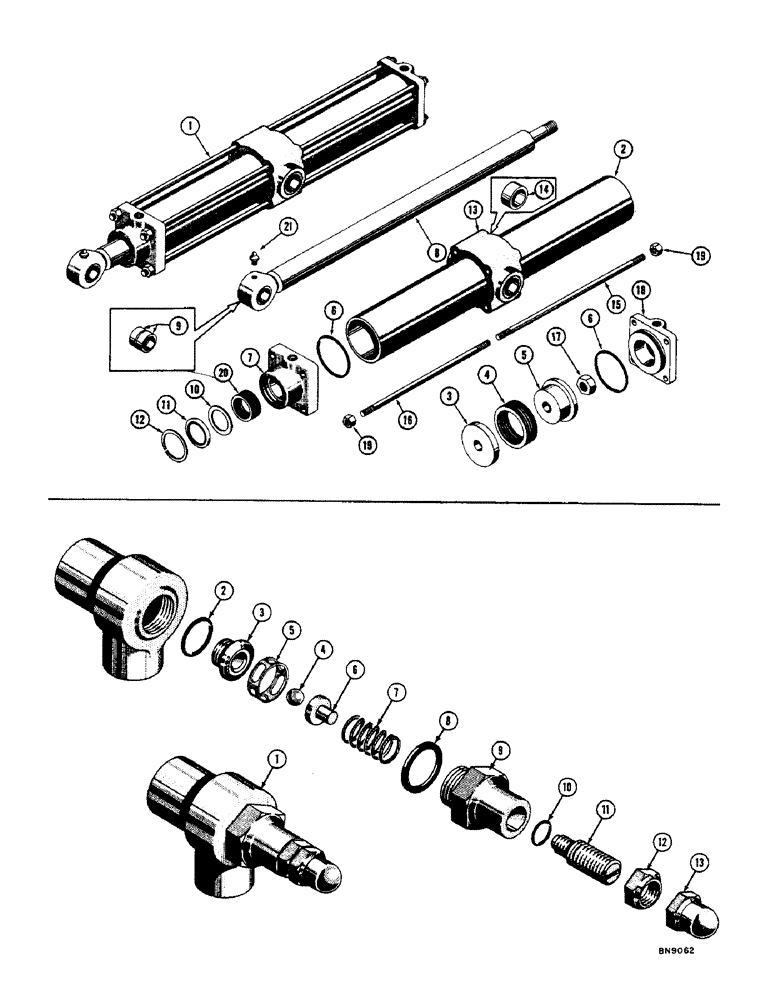

Запчасти Case 800 (240) - R15281 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

R15281

VALVE - special relief

1шт.

2

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Valve seat -116, 70 Duro, .737" ID x .103" Thk

1шт.

3

D24406

SEAT

- valve

1шт.

4

211-1016

BALL,12.7mm OD, Gr 24

- relief valve (.) 1/2" Dia

1шт.

5

COLLAR - (Not required on this model valve)

1шт.

6

635785R1

SPACER

- spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

663029R1

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

13

34109

NUT - cap

1шт.
