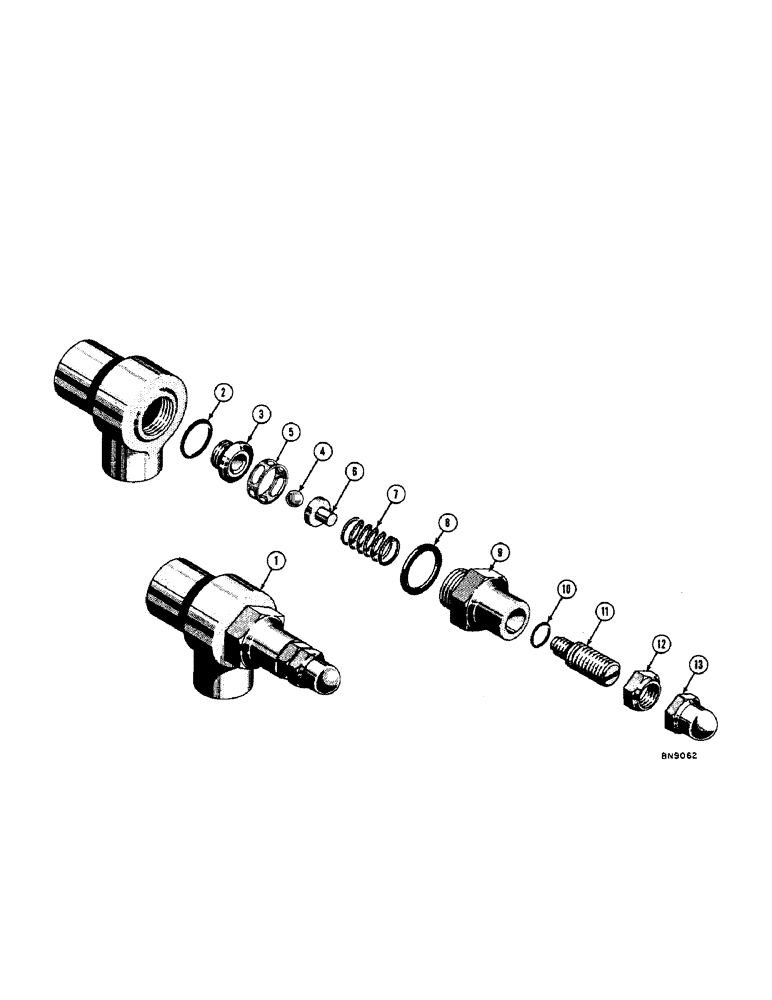

Запчасти Case 800 (238[1]) - 33959 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - special relief (Has #985 on housing) Use D24452

1шт.

2

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve (Use D24406)

1шт.

D24406

SEAT

- valve

1шт.

4

211-1016

BALL,12.7mm OD, Gr 24

- relief valve (.) 1/2" Dia

1шт.

5

D24389

COLLAR - seat jam (Not used on all models)

1шт.

6

635785R1

SPACER

- spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

663029R1

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

13

34109

NUT - cap

1шт.
