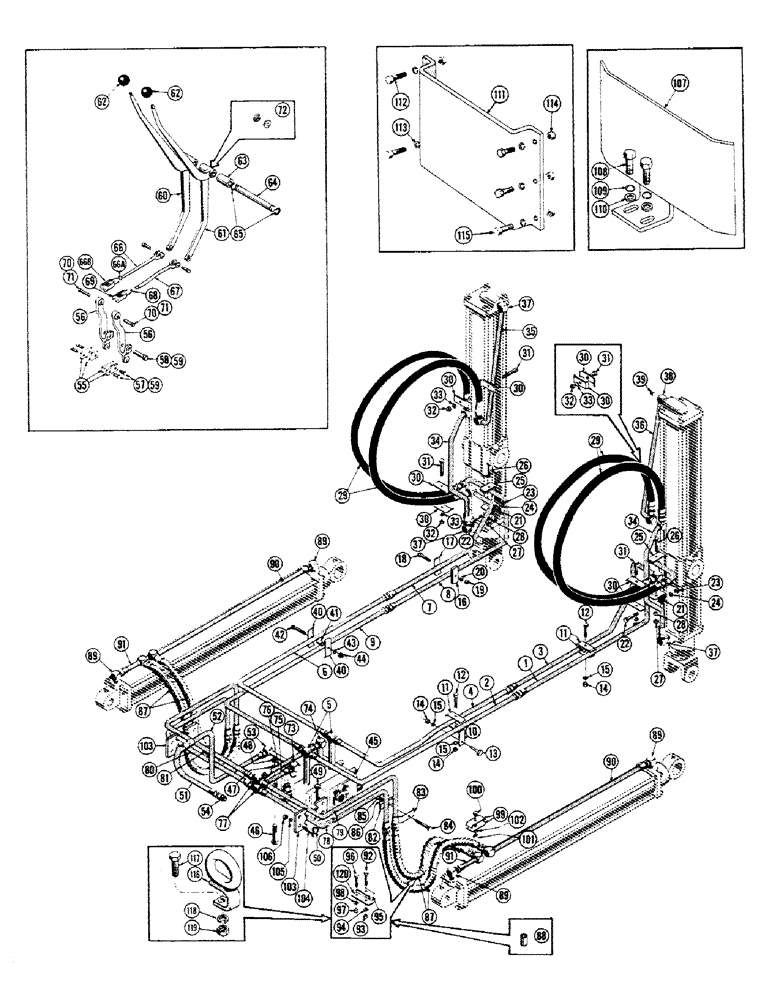

Запчасти Case 800 (224) - HYDRAULIC SYSTEM FOR HYDRAULIC ANGLEDOZER, DOZER HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

71561

TOOL BOX

TUBE ASS'Y.

1шт.

2

71549

TUBE ASS'Y. - (Used up to serial #7081202)

1шт.

R13505

TUBE ASS'Y. - (Used from serial #7081202)

1шт.

3

71559

COIL

TUBE ASS'Y.

1шт.

4

71555

ARM

TUBE ASS'Y. - (Used up to serial #7081202)

1шт.

R13506

TUBE ASS'Y. - (Used from serial #7031202)

1шт.

5

72119

TEE - special

2шт.

6

72519

TUBE ASS'Y. - (Used up to serial #7081202)

1шт.

R13507

TUBE ASS'Y. - (Used from serial #7081202)

1шт.

7

71565

TUBE ASS'Y. - (Used from serial #7081202)

1шт.

8

71563

TUBE ASS'Y.

1шт.

9

72295

EXHAUST MANIFOLD

TUBE ASS'Y. - (Used up to serial #7081202)

1шт.

R13508

TUBE ASS'Y. - (Used from serial #7081202)

1шт.

10

71534

BRACKET - tube clamp

1шт.

11

32978

PLATE ASSY.

PLATE - clamp

3шт.

12

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (45633)

2шт.

13

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (45631)

1шт.

14

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

3шт.

15

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

3шт.

16

71603

SPACER

1шт.

17

31665

COLLAR CLAMP

PLATE - clamp

1шт.

18

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634) Hex, 5/16"-24 x 1 3/4", G5

1шт.

19

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

20

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

1шт.

21

71573

BRACKET - support

2шт.

22

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(45632) Hex, 5/16"-24 x 1 1/4", G5

2шт.

23

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

24

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), lever & valve system 5/16"

2шт.

25

32978

PLATE ASSY.

PLATE - clamp, lever & valve system

2шт.

26

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (45633), lever & valve system

2шт.

27

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (58101), lever & valve system

2шт.

28

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), lever & valve system 5/16"

2шт.

29

35582

HOSE

ASS'Y., lever & valve system

4шт.

30

31665

COLLAR CLAMP

PLATE - clamp, lever & valve system

8шт.

31

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (45635), lever & valve system

4шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lever & valve system

4шт.

33

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), lever & valve system 5/16"

4шт.

34

71571

BAND,16.875" Length

TUBE ASS'Y., lever & valve system

2шт.

35

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y. - LH, lever & valve system

1шт.

36

71569

TUBE ASS'Y. - RH, lever & valve system

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lever & valve system

3шт.

38

33888

ELBOW - special, lever & valve system

1шт.

39

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd. pipe, 1/8 NP (Used with 33888), lever & valve system

1шт.

40

38363

PLATE -clamp, lever & valve system

2шт.

41

35335

SPACER, lever & valve system

1шт.

42

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-24 NF x 2, lever & valve system

1шт.

43

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

1шт.

44

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-24 NF), lever & valve system

1шт.

45

71296

VALVE ASS'Y. - hydraulic (Used up to ser. #7081202), lever system

1шт.

R14049

VALVE ASS'Y. - hydraulic (Used from serial #7081202), lever & system

1шт.

46

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2-20 NF x 2-1/2 (71296 & R14049 mtg.) (45712), lever & valve system

2шт.

47

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

2шт.

48

25-118

NUT,1/2"-20, G5

- ref. SF hex (1/2-20 NF) (48104), lever & valve system

2шт.

49

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2 (71296 & R14049 mtg.) (45710), lever & valve system

1шт.

50

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - control valve to tank (Used up to serial #7080872) (Order R11754 & R11752), lever & system

1шт.

R11754

TUBE ASS'Y. - control valve to tank (Used from serial #7080872), lever & system

1шт.

52

R11752

TUBE ASS'Y. - control valve to tank (Used from serial #7080872 and up to serial #7081201), lever & system

1шт.

R13749

TUBE ASS'Y. - control valve to tank (Used from serial #7081201), lever & system

1шт.

53

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1" JIC to 1" NP, lever & valve system

1шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male 1" JIC to 1 NP (50029), lever & valve system

1шт.

55

71316

X

LINK - control valve, lever & system

4шт.

56

71301

LEVER - hydraulic valve, system

2шт.

57

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

4шт.

58

71303

PIN - yoke, lever & valve system

2шт.

59

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), Lever & valve system 3/32" x 5/8"

6шт.

60

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - hydraulic control (Used up to ser. #7080902) (Order (1) #74889 lever & (2) #74898 bushings), valve system

1шт.

74889

LEVER ASS'Y. - hydraulic control (Used from serial #7080902 and up to serial #7081201), valve system

1шт.

R13757

LEVER ASS'Y. - hydraulic control (Used from ser. #7081201), valve system

1шт.

61

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - hydraulic control (Used up to ser. #7080902) (Order (1) #74889 lever & (2) #74898 bushings), valve system

1шт.

74890

LEVER ASS'Y. - hydraulic control (Used from serial #7080902 up to serial #7081201), valve system

1шт.

R13753

LEVER ASS'Y. - hydraulic control (Used from ser. #7081201), valve system

1шт.

62

31375

WASHER

BALL - grip, lever & valve system

1шт.

63

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to serial #7080902) (Order (1) #74849 spacer & (2) #74898 bushings), valve system

2шт.

74849

SPACER - lever (Used from serial #7080902), valve system

1шт.

64

70148

SHAFT - hydraulic control lever, valve system

1шт.

65

W-10757-S

RING - snap, lever & valve system

2шт.

71308

STUD

ROD ASS'Y. - hydraulic control (Used up to ser. #7081201), lever & valve system

2шт.

R13751

ROD ASS'Y. - hydraulic control (Used from ser. #7081201), lever & valve system

2шт.

66

70183

RING

ROD (Used up to serial #7081201), lever & valve system

1шт.

R13752

ROD

(Used from serial #7081201), lever & valve system

1шт.

66a

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8-24 NF), lever & valve system

1шт.

66b

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

1шт.

71307

ROD ASS'Y. - hydraulic control (Used up to ser. #7081201), lever & valve system

1шт.

R13748

ROD ASS'Y. - hydraulic control (Used from ser. #7081201), lever & valve system

1шт.

67

71306

STUD

ROD - (Used up to serial #7081201), lever & valve system

1шт.

R13747

ROD - (Used from serial #7081201), lever & valve system

1шт.

68

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), lever & valve system

1шт.

69

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

1шт.

70

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

4шт.

71

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Lever & valve system 3/32" x 5/8"

4шт.

72

74898

BUSHING - nylon (Used from serial #7080902), lever & valve system

6шт.

73

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), lever & valve system

1шт.

74

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ELBOW - 90 degree extra long male, 3/4 JIC to 3/4 NP, lever & valve system

1шт.

75

71541

TUBE ASS'Y. - valve to manifold (Used up to ser. #7081201), lever & valve system

1шт.

R14011

TUBE ASS'Y. - valve to manifold (Used from ser. #7031201), lever & valve system

1шт.

76

71545

TUBE ASS'Y. - valve to manifold (Used up to ser. #7081201), lever & valve system

1шт.

R14003

TUBE ASS'Y. - valve to manifold (Used from ser. #7081201), lever & valve system

1шт.

77

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- special, lever & valve system

2шт.

78

71471

COVER

TUBE ASS'Y. - manifold RH lower (Used up to ser. #7080907), lever & valve system

1шт.

R11314

TUBE ASS'Y. - manifold RH lower (Used from ser. #7080907 up to serial #7081201), lever & valve system

1шт.

R14015

TUBE ASS'Y. - manifold RH lower (Used from ser. #7081201), lever & valve system

1шт.

R14395

TUBE ASS'Y. - manifold RH lower (Used on dual pull behind), lever & valve system

1шт.

79

71473

TUBE ASS'Y. - manifold RH upper (Used up to ser. #7080907), lever & valve system

1шт.

R11316

TUBE ASS'Y. - manifold RH upper (Used from ser. #7080907 and up to serial #7081201), lever & valve system

1шт.

R14017

TUBE ASS'Y. - manifold RH upper (Used from ser. #7081201), lever & valve system

1шт.

R14401

TUBE ASS'Y. - manifold RH upper (Used on dual pull behind), lever & valve system

1шт.

80

71475

SCREW

TUBE ASS'Y. - manifold LH lower (Used up to ser. #7080907), lever & valve system

1шт.

R11320

TUBE ASS'Y. - manifold LH lower (Used from ser. #7080907 and up to serial #7081201), lever & valve system

1шт.

R14013

TUBE ASS'Y. - manifold LH lower (Used from ser. #7081201), lever & valve system

1шт.

R14397

TUBE ASS'Y. - manifold LH lower (Used on dual pull behind), lever & valve system

1шт.

81

71477

NUT

TUBE ASS'Y. - manifold LH upper (Used up to ser. #7080907), lever & valve system

1шт.

R11318

TUBE ASS'Y. - manifold LH upper (Used from ser. #7080907 and up to serial #7081201), lever & valve system

1шт.

R14021

TUBE ASS'Y. - manifold LH upper (Used from ser. #7081201), lever & valve system

1шт.

R14399

TUBE ASS'Y. - manifold LH upper (Used on dual pull behinds), lever & valve system

1шт.

82

70735

SPACER - tube clamp (Used up to serial #7081201), lever & valve system

2шт.

74104

SPACER - tube clamp (Used from serial #7081201), lever & valve system

2шт.

83

31665

COLLAR CLAMP

PLATE - clamp (Manifold mtg.), lever & valve system

2шт.

84

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16-24 NF x 2-1/4 (31665 mtg.), lever & valve system

2шт.

85

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lever & valve system

2шт.

86

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), lever & valve system 5/16"

2шт.

87

71408

GASKET

HOSE ASS'Y. - manifold to cylinders, lever & valve system

4шт.

88

R11383

SPACER (Used up to serial #7081201), lever & valve system

2шт.

89

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lever & valve system

4шт.

90

71547

TUBE ASS'Y. - to cylinder front ports, lever & valve system

2шт.

91

71543

TUBE ASS'Y. - to cylinder rear ports, lever & valve system

2шт.

92

14-552

BOLT,Hex, 5/16" - 24 x 3-1/4", Gr 5

HHCS - 5/16-24 NF x 3-1/4 (70724 mtg.), lever & valve system

2шт.

93

131-365

LOCK NUT

NUT - lock (5/16-24 NF), lever & valve system

2шт.

94

195-21

WASHER,5/16"

plain, Lever & valve system 5/16"

2шт.

95

70724

PLATE - clamp (72211 mtg.) (Used up to ser. #7080907), lever & valve system

4шт.

96

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16-24 NF x 2-1/4 (70724 mtg.) (Used up to serial #7080907), lever & valve system

2шт.

97

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used up to ser. #7080907), lever & valve system

2шт.

98

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (Used up to serial #7080907), lever & valve system 5/16"

2шт.

99

31665

COLLAR CLAMP

PLATE - clamp (72211 mtg.), lever & valve system

4шт.

100

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665 mtg.) (45635), lever & valve system

2шт.

101

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lever & valve system

2шт.

102

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), lever & valve system 5/16"

2шт.

103

72541

RING

BLOCK - clamp (Used up to serial #7080907), lever & valve system

4шт.

R13988

CLAMP - (Used from serial #7080907), lever & valve system

4шт.

104

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(72541 mtg.) (45632), Lever & valve system Hex, 5/16"-24 x 1 1/4", G5

8шт.

105

195-21

WASHER,5/16"

plain (48425), Lever & valve system 5/16"

8шт.

106

131-365

LOCK NUT

NUT - lock (5/16-24 NF) (11942), lever & valve system

8шт.

107

R11325

GUARD ASS'Y. - LH (Used from ser. #7080872 and up to serial #7081201), lever & valve system

1шт.

R11372

GUARD ASS'Y. - RH (Used from ser. #7080872 and up to serial #7081201), lever & valve system

1шт.

108

14-1632

BOLT,Hex, 1" - 14 x 2", Gr 5, Full Thd

HHCS - 1-14 NF x 2 (R11325 & R11372) (Used from ser. #7080872 and up to serial #7081201), lever & valve system

4шт.

109

92-16

LOCK WASHER,1"

WASHER, LOCK, (Used from S/N 7080872 and up to S/N 7081201), Lever & valve system 1"

4шт.

110

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (Used from serial #7080872 and up to serial #7081201), lever & valve system

4шт.

111

R13987

GUARD ASS'Y. - (Used from serial #7081201), lever & valve system

2шт.

112

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8-24 NF x 1-1/4 (R13987 mtg.) (Used from serial #7081201), lever & valve system

4шт.

113

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Used from serial #7081201), lever & valve system 3/8"

10шт.

114

25-116

NUT,Hex, 3/8"-24, G5

- ref. SF hex (3/8-24 NF) (Used from serial #7081201), lever & valve system

10шт.

115

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2 (R13987 mtg.) (Used from ser. #7081201), lever & valve system

6шт.

116

R13999

GUIDE - hose (Used from serial #7081201), lever & valve system

2шт.

117

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (R13999 mtg.), lever & valve system

2шт.

118

195-21

WASHER,5/16"

plain, Lever & valve system 5/16"

2шт.

119

131-365

LOCK NUT

NUT - ref. SF hex (5/16-24 NF), lever & valve system

2шт.

120

72210

SUPPORT - hose clamp (Used up to serial #7081201), lever & valve system

2шт.
