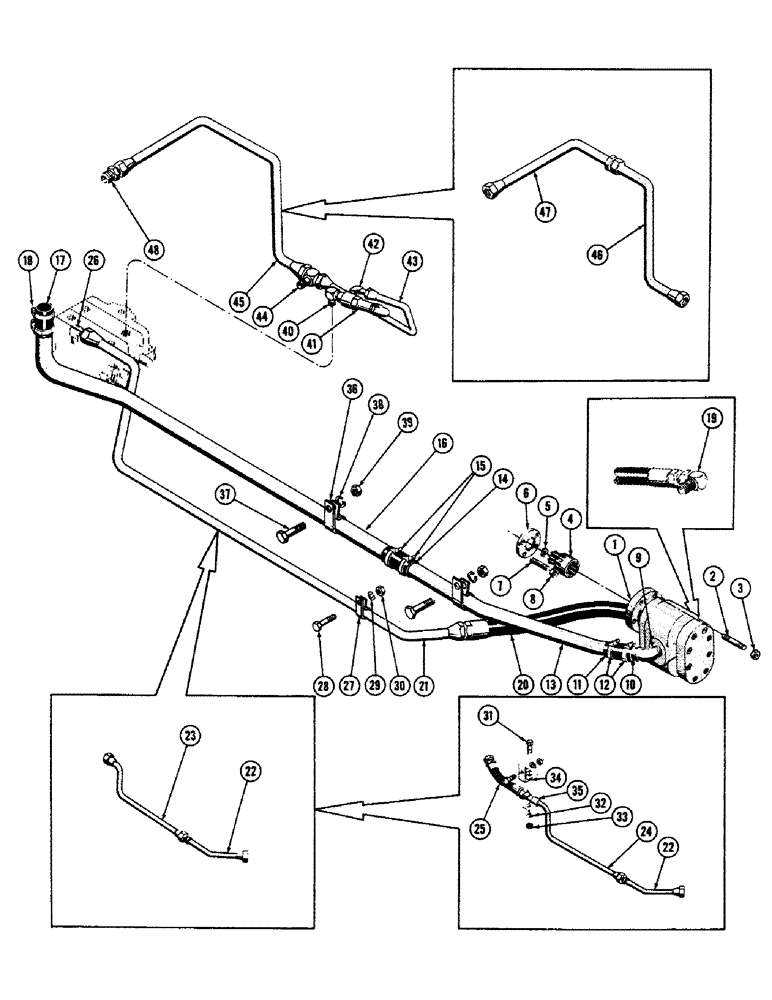

Запчасти Case 800 (204) - TERRALOADR PRIMARY HYDRAULICS, (FRONT HINGE ONLY) (07) - HYDRAULIC SYSTEM

1

70541

PUMP ASS'Y - hydraulic (Used up to ser. #7-12-57) (See figure 286 for breakdown) (Order #73346)

1шт.

72413

GASKET

PUMP ASS'Y - hydraulic (Used from ser. #7-12-57 and up to serial #7080554) (See figure 288 for breakdown) (Order #73346)

1шт.

73346

PUMP ASS'Y - hydraulic (Used from ser. #7080554) (See figure 288 for breakdown)

1шт.

2

46513

ROD

STUD - 3/8-24 NF x 1/2-13 NC x 2-1/8 (Pump mtg.)

6шт.

3

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF)

6шт.

4

R13929

COUPLING - male

1шт.

5

49480

RING

- snap

1шт.

6

R13930

COUPLING - female

1шт.

7

46512

ROLLER BEARING

STUD 7/16-20 NF x 1-3/4 (70543 mtg.)

4шт.

8

131-367

LOCK NUT

NUT - lock (7/16-20 NF)

4шт.

9

221-407

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 45 degree street, 1-1/4 NP

1шт.

10

71374

YOKE

NIPPLE - special

1шт.

11

R14169

HOSE

- low pressure

1шт.

12

49763

X

CLAMP - hose

2шт.

13

71327

TUBE -, Serial Range: pump-tank

1шт.

14

R14169

HOSE

- low pressure

1шт.

15

49763

X

CLAMP - hose

2шт.

16

70576

TUBE -, Serial Range: pump-tank

1шт.

17

R14169

HOSE

- low pressure

1шт.

18

49763

X

CLAMP - hose

2шт.

19

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1" N.P.

1шт.

20

70568

HOSE ASS'Y -, Serial Range: pump-valve

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - pump to valve (Used up to ser. #7080554) (Order kit #R2516)

1шт.

22

74507

TUBE ASS'Y - pump to valve (Used from ser. #7080554 and up to serial #7080902)

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - pump to valve (Used from ser. #7080554 and up to serial #7080902) (Order kit # R2516)

1шт.

24

R12722

TUBE ASS'Y - pump to valve (Used from ser. #7080902)

1шт.

25

R13206

HOSE ASS'Y - pump to valve (Used from serial #7080902)

1шт.

26

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1" NP

1шт.

27

49840

CLAMP

- tube (72149 mtg.) (Used up to serial #7080902)

1шт.

28

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (49840 mtg.) (Used up to ser. #7080902)

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used up to S/N 7080902) 1/4"

1шт.

30

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-29 NF) (Used up to ser. #7080902)

1шт.

31

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 mtg.) (Used from #7080902) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

32

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (Used from S/N 7080902) 5/16"

2шт.

33

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from ser. #7080902)

2шт.

34

71534

BRACKET (Used from serial #7080902)

1шт.

35

R13049

CLAMP - tube (Used form serial #7080902)

1шт.

36

49773

CLAMP

- tube (71327 & 70576 mtg.)

2шт.

37

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (49773 mtg.)

1шт.

38

92-8

LOCK WASHER,1/2"

1шт.

39

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

1шт.

40

50851

ELBOW - 90 degree lateral

1шт.

41

NLS

NO LONGER SERVICED

VALVE ASS'Y - relief (See figure 282 for breakdown)

1шт.

42

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NP to 5/8 JIC

1шт.

43

71328

TUBE ASS'Y - relief valve to control valve

1шт.

44

50850

PROFILE

ELBOW - 90 degree lateral

1шт.

221-70

BUSHING - pipe, 1" NP to 1-1/4 NP (Not shown)

1шт.

45

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - valve to tank (Used up to serial #7080872) (Order R11748 & R11750)

1шт.

46

R11748

TUBE ASS'Y - valve to tank (Used from serial #7080872)

1шт.

47

R11750

TUBE ASS'Y - valve to tank (Used from serial #7080872)

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP

1шт.
