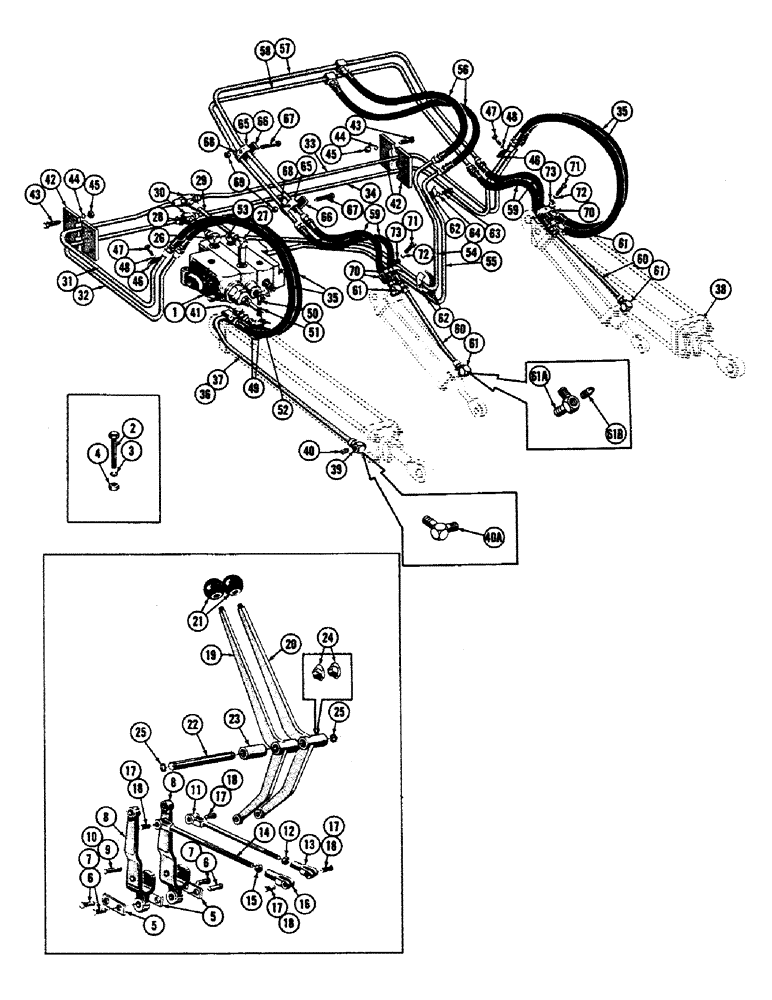

Запчасти Case 800 (200) - TERRALOADR HYDRAULIC SYSTEM, LIFT SYSTEM, DUMP SYSTEM- LEVER AND VALVE SYSTEM (07) - HYDRAULIC SYSTEM

1

34369

VALVE ASS'Y - hydraulic (See figure 300 for breakdown)

1шт.

See Parts bulletin Jan. 14, 1963.

1шт.

2

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2 (34369 mtg.)

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

3шт.

5

70122

LINK - control valve

4шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - link

4шт.

7

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

8

71300

PIN

LEVER - hydraulic valve

2шт.

9

70137

PIN - valve lever

2шт.

10

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

70157

ROD ASS'Y - valve control

1шт.

11

70182

ROD - valve control

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

70169

ROD ASS'Y - valve control

1шт.

14

70183

RING

ROD - valve control

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

19

NSS

NOT SOLD SEPARAT

LEVER - valve control (Used up to serial #7080902) (Order (1) #74889 lever & (2) #74898 bushings)

1шт.

74889

LEVER - valve control (Used from serial #7080902)

1шт.

20

NSS

NOT SOLD SEPARAT

LEVER - valve control (Used up to serial #7080902 (Order (1) #74890 lever & (2) #74898 bushings)

1шт.

74890

LEVER - valve control (Used from serial #7080902)

1шт.

21

31375

WASHER

BALL - grip

2шт.

22

70148

SHAFT - valve lever pivot

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to serial #7080902) (Order (1) #74849 spacer & (2) #74898 bushings)

1шт.

74849

SPACER - lever (Used from serial #7080902)

1шт.

24

74898

BUSHING - nylon (Used from serial #7080902)

6шт.

25

W10757S

X

RING - snap

2шт.

26

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NP to 1" JIC, loader hydraulic system

1шт.

27

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1" NP to l" JIC, loader hydraulic system

1шт.

28

70700

SPRING

TUBE ASS'Y - valve to manifold, lower, loader hydraulic system

1шт.

29

72278

TUBE ASS'Y - valve to manifold, upper, loader hydraulic system 5.875" Length

1шт.

30

71326

TEE - special, loader hydraulic system

2шт.

31

70708

TUBE ASS'Y - manifold, upper right (Used up to serial #9-15-57), loader hydraulic system

1шт.

73220

ARM,12.312" Length

TUBE ASS'Y - manifold, upper right (Used from serial #9-15-57), loader hydraulic system

1шт.

32

70706

TUBE ASS'Y - manifold, lower right (Used up to serial #9-15-57), loader hydraulic system

1шт.

73221

SLEEVE

TUBE ASS'Y - manifold, lower right (Used from serial #9-15-57), loader hydraulic system

1шт.

33

70704

WASHER,21-5" Length

TUBE ASS'Y - manifold, upper left (Used up to serial #6-16-57), loader hydraulic system

1шт.

72582

TUBE ASS'Y - manifold, upper left (Used from serial #6-16-57), loader hydraulic system

1шт.

34

70702

TUBE ASS'Y - manifold, lower left (Used up to serial #6-16-57), loader hydraulic system

1шт.

72580

JET,20.125" Length

TUBE ASS'Y - manifold, lower left (Used from serial #6-16-57), loader hydraulic system

1шт.

35

71379

PLATE

HOSE ASS'Y - manifold to lift cylinders, loader hydraulic system

4шт.

36

71382

COVER,29.75" Length

TUBE ASS'Y - lift cyl. front ports, L.H. (Used up to serial #6-16-57), loader hydraulic system

1шт.

72584

FLOAT

TUBE ASS'Y - lift cyl. front ports, L.H. (Used from serial #6-16-57), loader hydraulic system

1шт.

37

71383

TUBE ASS'Y - lift cyl. front ports, R.H. (Used up to serial #6-16-57), loader hydraulic system

1шт.

72585

LEVER

TUBE ASS'Y - lift cyl. front ports, R.H. (Used from serial #6-16-57), loader hydraulic system

1шт.

38

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC, loader hydraulic system

1шт.

39

50852

ELBOW - 90 degree special (Used up to serial #6-16-57), loader hydraulic system Flg, USR, 3/4"-10

1шт.

40

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. head, 1/8 NP (Used up to serial #6-16-57), loader hydraulic system

1шт.

40a

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degree male, 3/4 NP to 3/4 JIC (Used from ser. #6-16-57), loader hydraulic system

1шт.

41

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degree male, 3/4 NP to 3/4 JIC, loader hydraulic system

2шт.

42

72542

RING

BLOCK - clamping, loader hydraulic system

4шт.

43

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (72542 mtg.), loader hydraulic system

8шт.

44

195-21

WASHER,5/16"

plain, Loader hydraulic system 5/16"

8шт.

45

131-365

LOCK NUT

NUT - lock (5/16-24 NF), loader hydraulic system

8шт.

46

31665

COLLAR CLAMP

CLAMP - tube (Manifold mtg.), loader hydraulic system

2шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (31665 mtg.), loader hydraulic system

2шт.

48

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , loader hydraulic system 5/16"

2шт.

49

31665

COLLAR CLAMP

CLAMP - hose (71379 mtg.), loader hydraulic system

4шт.

50

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.), loader hydraulic system

2шт.

51

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , loader hydraulic system 5/16"

2шт.

52

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), loader hydraulic system

2шт.

53

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree long male - 1" JIC to 1" NP, loader hydraulic system

1шт.

54

71346

WASHER,29.25" Length

TUBE ASS'Y - valve to manifold, upper (Used up to #6-16-57), loader hydraulic system

1шт.

72578

LEVER

TUBE ASS'Y - valve to manifold, upper (Used from ser. #6-16-57), loader hydraulic system

1шт.

55

71344

BOX

TUBE ASS'Y - valve to manifold, lower (Used up to #6-16-57), loader hydraulic system

1шт.

72576

PLATE

TUBE ASS'Y - valve to manifold, lower (Used from 6-16-57), loader hydraulic system

1шт.

56

71386

HOSE ASS'Y - to manifold, loader hydraulic system

2шт.

57

71373

TUBE ASS'Y - manifold, upper, loader hydraulic system

1шт.

58

71372

TUBE ASS'Y - manifold, lower, loader hydraulic system

1шт.

59

71388

HOSE ASSY.

HOSE ASS'Y - manifold to dump cylinder, loader hydraulic system

4шт.

60

71362

KEY

TUBE ASS'Y - to dump cyl. front ports, loader hydraulic system

2шт.

61

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JI, loader hydraulic systemC (Used up to #6-16-57)

4шт.

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC (Used from #6-16-57), loader hydraulic system

3шт.

61a

50852

ELBOW - 90 degree special (Used from serial #6-16-57), loader hydraulic system Flg, USR, 3/4"-10

1шт.

62

31665

COLLAR CLAMP

CLAMP - tube, loader hydraulic system

3шт.

63

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.), Loader hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

64

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , loader hydraulic system 5/16"

1шт.

65

31665

COLLAR CLAMP

CLAMP - tube, loader hydraulic system

4шт.

66

70723

SPACER - tubing, loader hydraulic system

4шт.

67

14-560

HHCS 5/16-24 NF x 3-3/4 (31665 & 70723 mtg.), loader hydraulic system

4шт.

68

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , loader hydraulic system 5/16"

4шт.

69

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), loader hydraulic system

4шт.

70

31665

COLLAR CLAMP

CLAMP - tube, loader hydraulic system

4шт.

71

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.), loader hydraulic system

2шт.

72

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , loader hydraulic system 5/16"

2шт.

73

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), loader hydraulic system

2шт.
