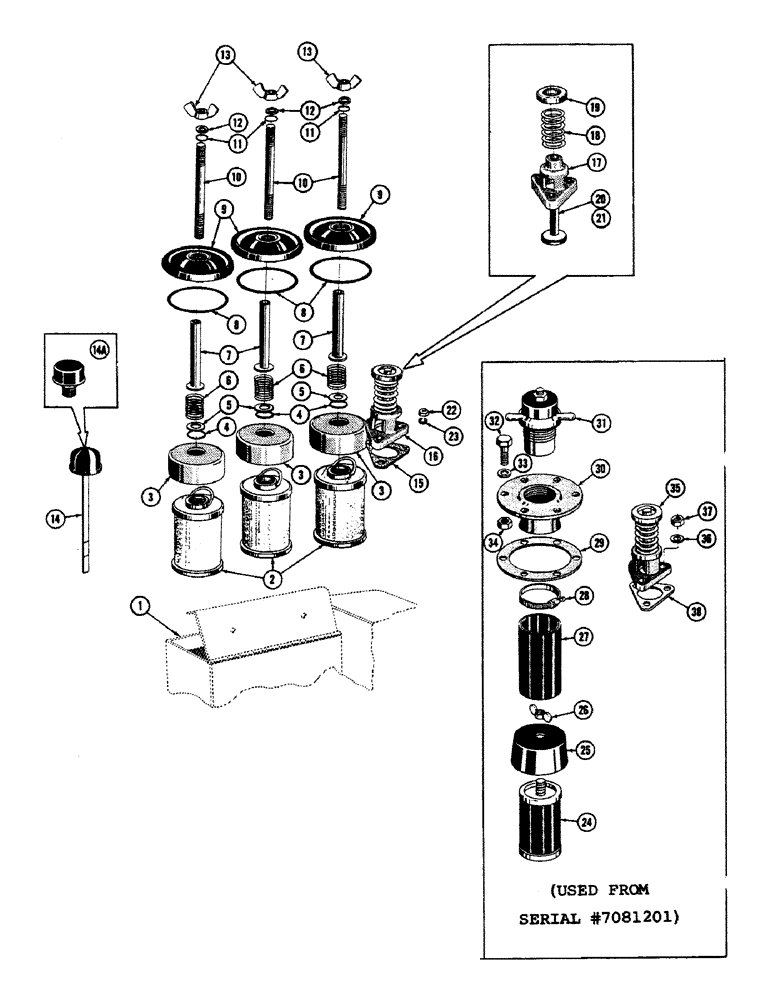

Запчасти Case 800 (184) - HYDRAULIC FILTER SYSTEM, (USED UP TO SERIAL #7081201) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

TANK ASS'Y - hydraulic (see figure 180 ref. #14)

1шт.

2

51200336

FILTER, ELEMENT

ELEMENT ASS'Y - hydraulic filter

3шт.

3

71895

CAP - oil filter

3шт.

4

49398

SEAL - "O" ring

3шт.

5

48559

WASHER

WASHER - special

3шт.

6

70615

SPRING

3шт.

7

70605

SPACER & WASHER ASS'Y

3шт.

8

49405

SEAL - "O" ring

3шт.

9

73893

SPARE PART

COVER - oil filter

3шт.

10

70600

STUD - oil filter

3шт.

11

49404

SEAL - "O" ring

3шт.

12

195-25

WASHER,3/8"

(48426) 3/8"

3шт.

13

129-410

WING NUT,3/8"-16

NUT - wing (3/8-16 NC) (48057)

3шт.

14

31543

BREATHER

FILTER & GAUGE STICK ASS"Y (Used, Serial Range: up-#7080850)

1шт.

14a

74258

BREATHER FILTER & GAUGE STICK ASS'Y (Used from #7080850)

1шт.

15

71361

GASKET - relief valve

1шт.

16

71358

LOCK VALVE

VALVE ASS'Y - relief

1шт.

17

71356

STUD

HOUSING - relief valve

1шт.

18

70615

SPRING

- relief valve

1шт.

19

35426

WASHER - relief valve

1шт.

20

71360

VALVE ASS'Y - relief valve

1шт.

21

132-45

COTTER PIN,1/8" x 5/8"

PIN - cotter, 1/8 dia x 3/4 (48693)

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

3шт.

23

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

3шт.

24

R13605

FILTER, ENGINE OIL

CARTRIDGE - filter, used from serial no. 7081201

1шт.

25

R13608

COVER - filter, used from serial no. 7081201

1шт.

26

129-410

WING NUT,3/8"-16

NUT - wing (3/8-16 NC), used from serial no. 7081201

1шт.

27

R13606

SCREEN - filter, used from serial no. 7081201

1шт.

28

214-36

X

CLAMP - hose, used from serial no. 7081201

1шт.

29

R14032

GASKET, used from serial no. 7081201

1шт.

R14072

PLATE - hyd. tank cover (Std. tractor only), used from serial no. 7081201

1шт.

30

R14159

FLANGE - breather mtg. (Used with Allied Equipment), used from serial no. 7081201

1шт.

31

R14031

VALVE - breather, used from serial no. 7081201

1шт.

32

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Used up to ser. #1-17-59), used from serial no. 7081201

6шт.

74261

STUD (R14159 mtg.) (Used from serial #1-17-59), used from serial no. 7081201

6шт.

33

R14068

WASHER - fibre (Used up to serial #1-17-59), used from serial no. 7081201

6шт.

92-8

LOCK WASHER,1/2"

(Used from serial #1-17-59), used from serial no. 7081201 1/2"

6шт.

34

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (R14159 mtg.) (Used from serial #1-17-59), used from serial no. 7081201

6шт.

35

71358

LOCK VALVE

VALVE ASS'Y - relief (See ref. #16 for breakdown), used from serial no. 7081201

1шт.

36

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446), used from serial no. 7081201 3/8"

3шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), used from serial no. 7081201

3шт.

38

71361

GASKET - relief valve, used from serial no. 7081201

1шт.
